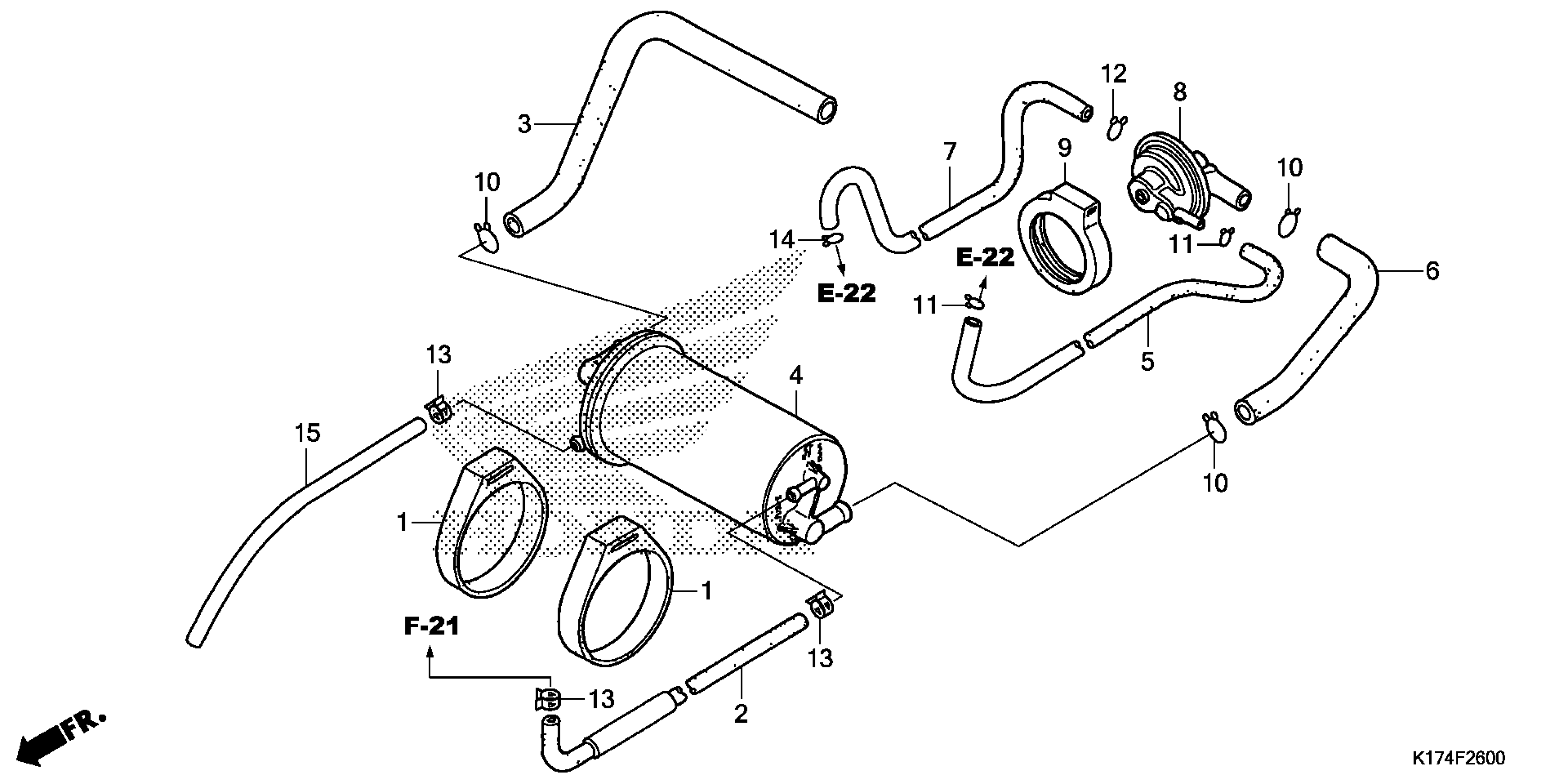

Honda CMX250X3AC (16) REBEL, JPN, VIN# JH2MC136-GK000001 EVAP CANISTER Diagram

#

Description

Price

1

RUBBER, CANISTER MOUNTING

17301-KEN-L00

$7.94

2

TUBE, FUEL TANK BREATHER

17302-KEN-H00

$38.34

3

TUBE, AIR CLEANER BREATHER

17305-KR3-790

$6.60

4

EVAPORATIVE EMISSION CANISTER ASSY. (200)

17310-KR3-790

$286.01

5

TUBE, CARBURETOR CONTROL VALVE

17411-KR3-790

$10.54

6

TUBE, CANISTER PURGE CONTROL VALVE

17413-KR3-790

$5.15

7

TUBE, CARBURETOR PURGE CONTROL VALVE

17415-KEN-770

$24.47

8

EVAPORATIVE EMISSION PURGE CONTROL VALVE

17440-KR3-790

$120.57

9

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-MG2-880

$12.09

10

CLIP, TUBE

90652-MB1-000

$1.10

11

CLIP, TUBE (B7)

95002-02070

$1.62

12

CLIP, TUBE (B10)

95002-02100

$1.75

13

CLAMP, TUBE (D8)

95002-40800-08

$2.07

14

CLIP, TUBE (C9)

95002-50000

$1.16

15

BULK HOSE, VACUUM (4.5X1000) (4.5X280)

95005-45001-20M

$30.52
