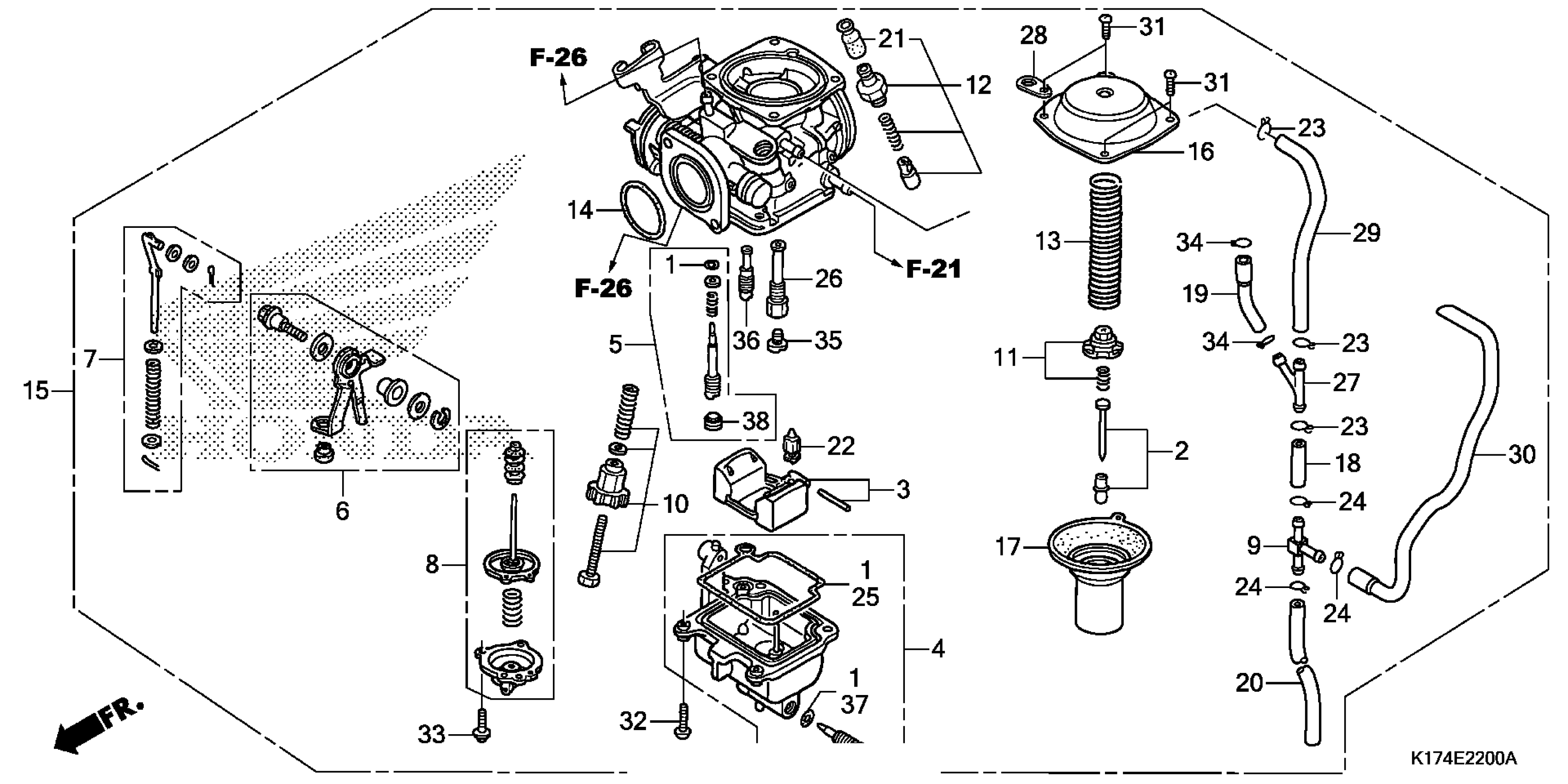

Honda CMX250X3AC (16) REBEL, JPN, VIN# JH2MC136-GK000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KEN-B11

$22.47

2

NEEDLE SET, JET

16012-KEN-620

$50.15

3

FLOAT SET

16013-KR3-980

$50.73

4

CHAMBER SET, FLOAT

16015-KEN-B11

$114.93

5

SCREW SET

16016-K17-681

$28.65

6

LINK SET

16017-KEN-620

$37.84

7

ROD SET, PUMP

16019-K17-681

$16.25

8

DIAPHRAGM SET, PUMP

16021-KEN-620

$110.87

9

T-JOINT

16026-MN8-004

$40.22

10

SCREW SET

16028-KR3-980

$43.29

11

PLATE SET, VALVE

16037-KEN-620

$19.68

12

VALVE SET, STARTER

16046-KEN-620

$58.40

13

SPRING, COMPRESSION COIL

16050-KBG-770

$14.99

14

O-RING (2.4X29)

16075-GHB-B70

$7.47

15

CARBURETOR ASSY. (VE36D A)

16100-K17-781

$494.60

16

TOP

16107-KW4-003

$41.62

17

PISTON, VACUUM

16111-KBG-770

$167.04

18

TUBE

16143-KBG-670

$5.91

19

TUBE

16143-KR3-751

$5.21

20

TUBE

16144-KBG-670

$12.38

21

CAP, CABLE SEALING

16148-KB1-921

$16.18

22

VALVE, FLOAT

16155-397-971

$38.05

23

CLIP, TUBE

16163-GHB-600

$1.91

24

CLIP, TUBE

16163-GHB-610

$1.68

25

GASKET, FLOAT CHAMBER

16163-HM3-A61

$8.61

26

HOLDER, NEEDLE JET

16165-KBG-770

$35.06

27

JOINT

16180-ML6-671

$14.66

28

PLATE, SET

16186-KBG-670

$5.16

29

TUBE, OVERFLOW

16198-KBG-670

$8.57

30

TUBE

16198-KEN-670

$19.63

31

SCREW, PAN (4X8)

93500-04008-0A

$0.81

31

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$0.81

32

SCREW, PAN (4X14)

93500-04014-0A

$0.76

33

SCREW-WASHER (4X12)

93892-04012-00

$0.62

33

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$0.62

34

CLIP, TUBE (B1 8)

95002-02089

$0.96

35

JET, MAIN (#108) This part replaces 99101-GHB-1080.

99101-MAZ-1080

$8.23

36

JET, SLOW (#38) This part replaces 99103-MA1-0380.

99104-MAZ-0380

$16.54

36

JET, SLOW (#38)

99104-MAZ-0380

$16.54

37

O-RING (1.3X4.3)

16075-GHB-640

$2.69

38

CAP, ADJUSTING SCREW

16312-KYK-911

$2.50
