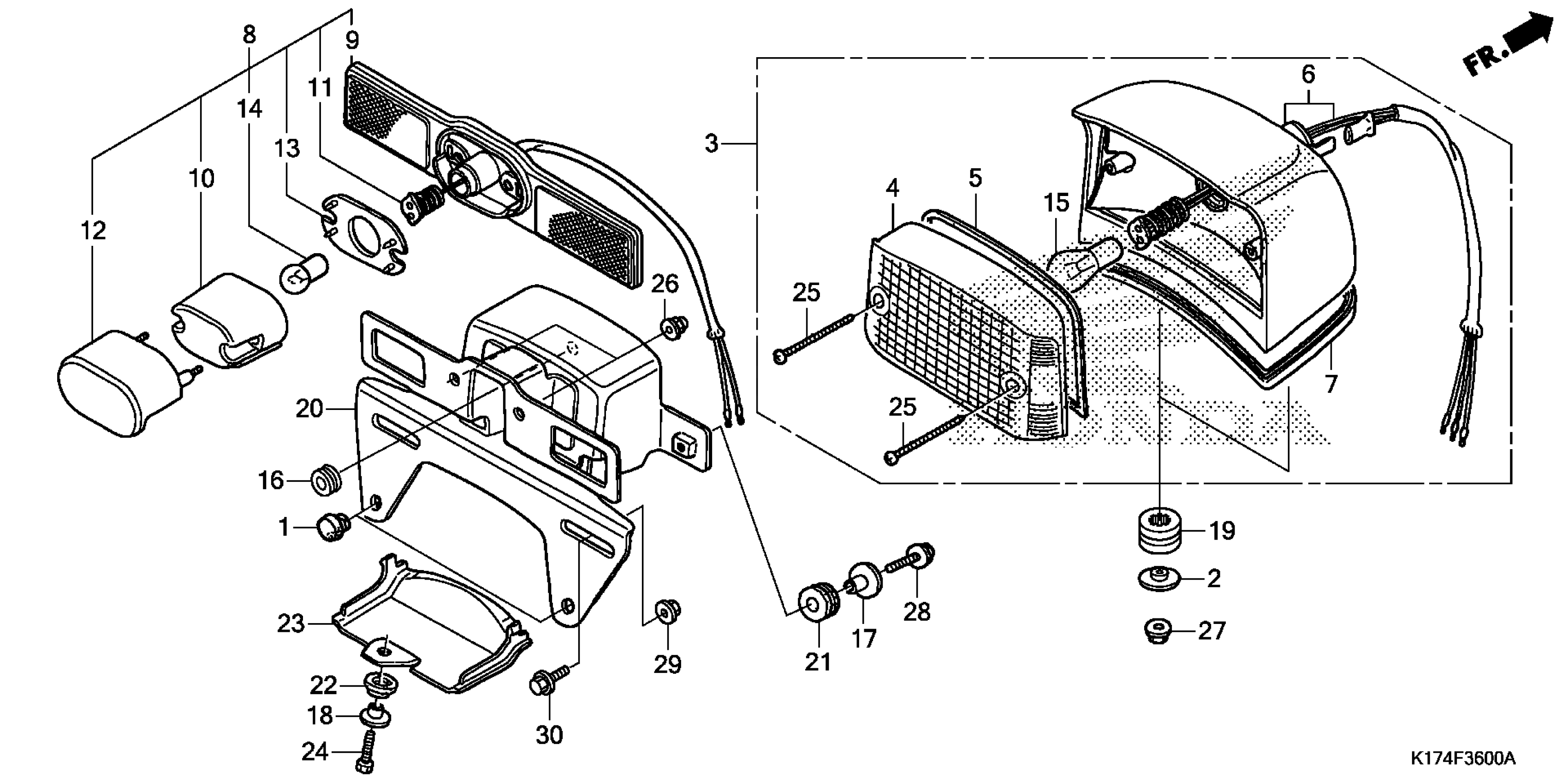

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 TAILLIGHT Diagram

GROMMET A, MUFFLER PROTECTOR

18366-GW8-670

$4.23

WASHER, RR. TURN SIGNAL

33601-428-000

$3.21

TAILLIGHT UNIT (12V 27/7W) (COO)

33701-KR3-305

$136.31

LENS, TAILLIGHT (COO)

33702-KR3-305

$32.26

GASKET, TAILLIGHT LENS

33709-KR3-671

$4.74

BASE, TAILLIGHT

33713-KR3-671

$82.41

GASKET, TAILLIGHT

33717-KR3-671

$15.34

LIGHT ASSY., LICENSE (12V 8W)

33720-KR3-671

$169.38

BASE

33721-MB1-671

$90.46

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

WIRE, LICENSE

33725-KR3-671

$14.51

COVER, LICENSE LIGHT

33727-KR3-000

$27.97

GASKET, LENS

33729-MB1-003

$6.30

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$4.15

GROMMET A, TUBE

36037-657-000

$6.16

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$6.16

COLLAR (6.2X8.6X14.5)

61104-KR3-630

$3.74

COLLAR, HEADLIGHT SETTING

61304-397-830

$2.03

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

BRACKET, NUMBER PLATE

84701-KEN-670

$156.90

RUBBER, NUMBER BRACKET

84703-KR3-000

$5.93

GROMMET, NUMBER BRACKET

84704-KR3-000

$6.62

COVER, NUMBER PLATE

84705-KR3-660

$19.54

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

SCREW, TAPPING (4X30)

93901-34780

$1.49

NUT, CAP (4MM)

94021-04070-0S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X28)

95701-06028-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
