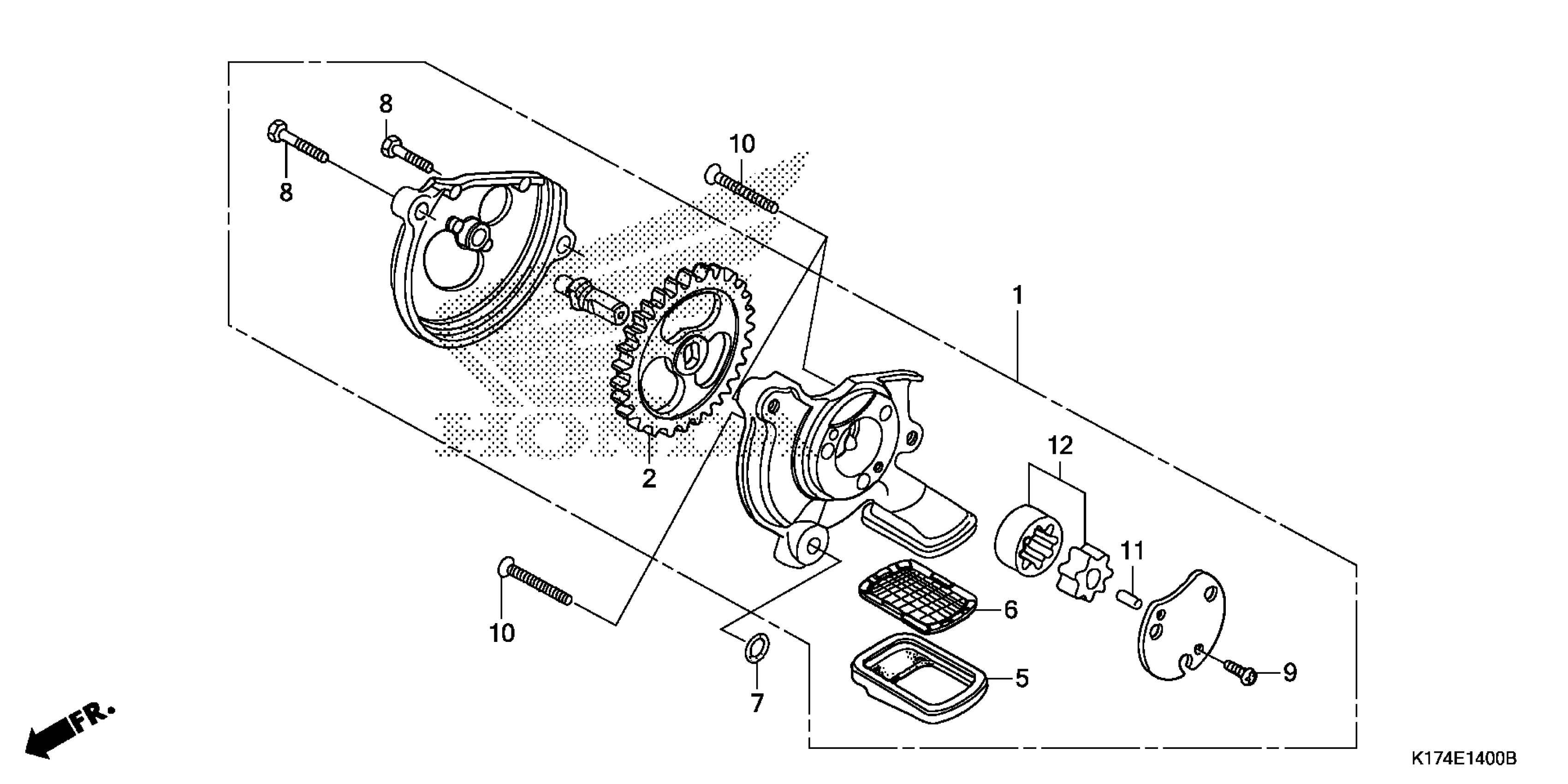

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-KR3-630

$193.25

GEAR A, OIL PUMP DRIVE (40T)

15131-KB4-670

$65.53

HOLDER, SCREEN

15421-399-000

$8.76

SCREEN, OIL FILTER

15422-399-000

$7.81

O-RING (6X3)

91319-323-000

$2.62

BOLT, HEX. (5X20)

92101-05020-0H

$1.07

SCREW, PAN (4X12)

93500-04012-0A

$0.76

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.76

SCREW, FLAT (6X32)

93600-06032-0A

$1.12

PIN, SPRING (4X8)

94305-40082

$2.59

ROTOR SET, OIL PUMP

15021-881-000

$23.81
