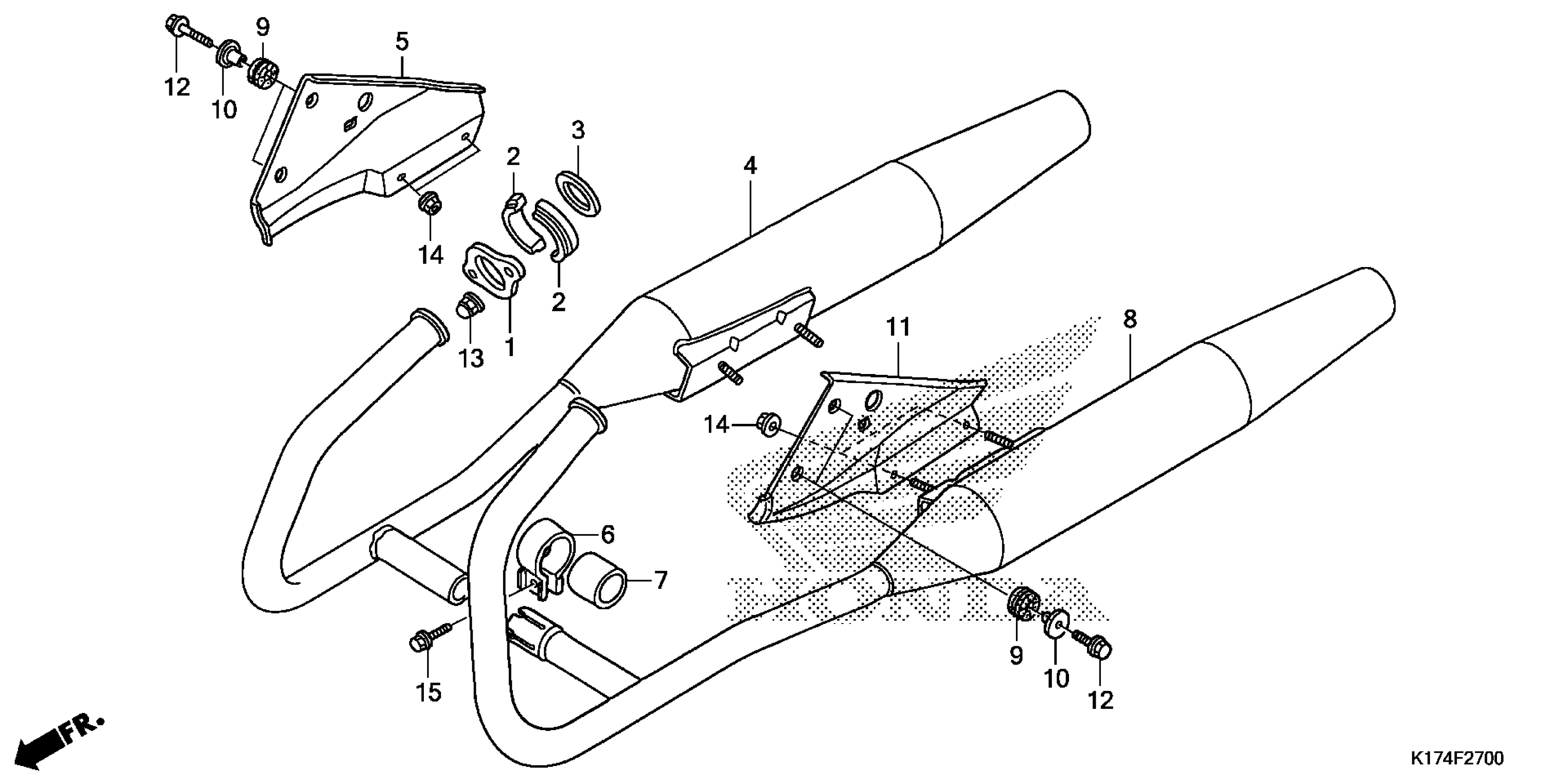

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 MUFFLER Diagram

JOINT, EX. PIPE

18231-KEN-670

$26.11

COLLAR, EX. PIPE JOINT

18233-KEN-670

$6.25

GASKET, EX. PIPE

18291-MN5-650

$3.61

MUFFLER, R. EX. This part replaces 18300-KEN-305.

18300-KEN-670

$261.76

STAY, R. MUFFLER *NH1* (BLACK)

18325-KR3-950ZA

$54.41

BAND, EX. PIPE

18373-461-000

$35.82

GASKET, MUFFLER

18391-HB7-000

$10.68

MUFFLER, L. EX. (COO)

18400-KEN-305

$349.00

RUBBER A, MUFFLER MOUNTING

18422-KR3-870

$4.66

COLLAR, MUFFLER MOUNTING

18423-KR3-000

$5.74

STAY, L. MUFFLER *NH1* (BLACK)

18425-KR3-950ZA

$54.41

BOLT, SPECIAL FLANGE (8X25)

90123-MM2-000

$3.86

NUT, CAP (6MM)

90304-438-000

$6.81

NUT, FLANGE (8MM)

94050-08000

$0.87

BOLT, FLANGE (8X25)

95701-08025-00

$1.65
