Description

Price

1

BAND, WIRE

32161-KM3-003

$2.60

2

KEY SET This part replaces 35010-KEN-670.

35010-KEN-671

$134.43

3

SWITCH ASSY., COMBINATION

35100-KR3-870

$75.10

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$9.31

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$9.31

5

HANDLEBAR This part replaces 53100-KEN-305.

53100-KEN-670

$78.66

6

WEIGHT A, HANDLE

53103-KR3-681

$18.05

7

WEIGHT B, HANDLE

53104-KR3-600

$22.50

8

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.74

9

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.95

10

RUBBER, HANDLE CUSHION

53133-385-000

$4.99

11

BRIDGE, FORK TOP

53230-KR3-000

$260.62

12

HOLDER (LOWER)

53231-KR3-870

$71.88

13

HOLDER (UPPER)

53235-KR3-000

$20.03

14

CASE, CONNECTOR (LOWER)

61305-KR3-670

$24.44

15

CASE, CONNECTOR (UPPER)

61306-KR3-670

$20.88

16

BOLT, SOCKET (7X32)

90151-KR3-000

$5.35

17

SCREW, OVAL (6X55)

90191-KN8-730

$4.69

18

NUT, STEERING STEM

90304-159-000

$6.71

19

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

19

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

20

WASHER, STEERING STEM

90503-051-870

$2.62

21

WASHER, HANDLE CUSHION

90535-292-000

$1.97

22

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

23

SCREW, PAN (6X12)

93500-06012-0G

$0.91

24

SCREW, TAPPING (3X20)

93901-22580

$0.71

25

BOLT, FLANGE (6X16)

96001-06016-07

$0.97

26

BOLT, SOCKET (8X32)

96700-08032-00

$1.65

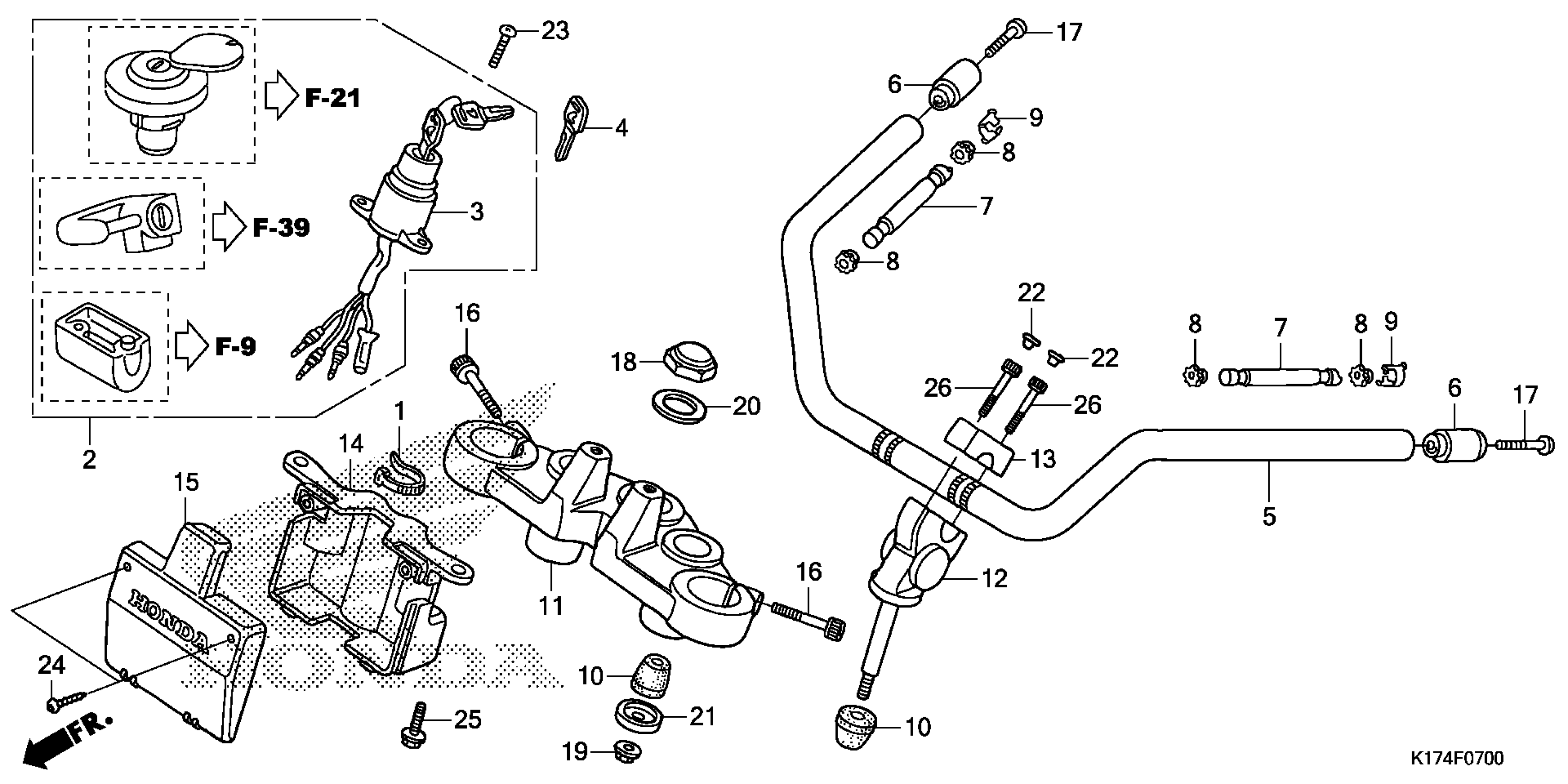

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 HANDLEBAR Diagram
