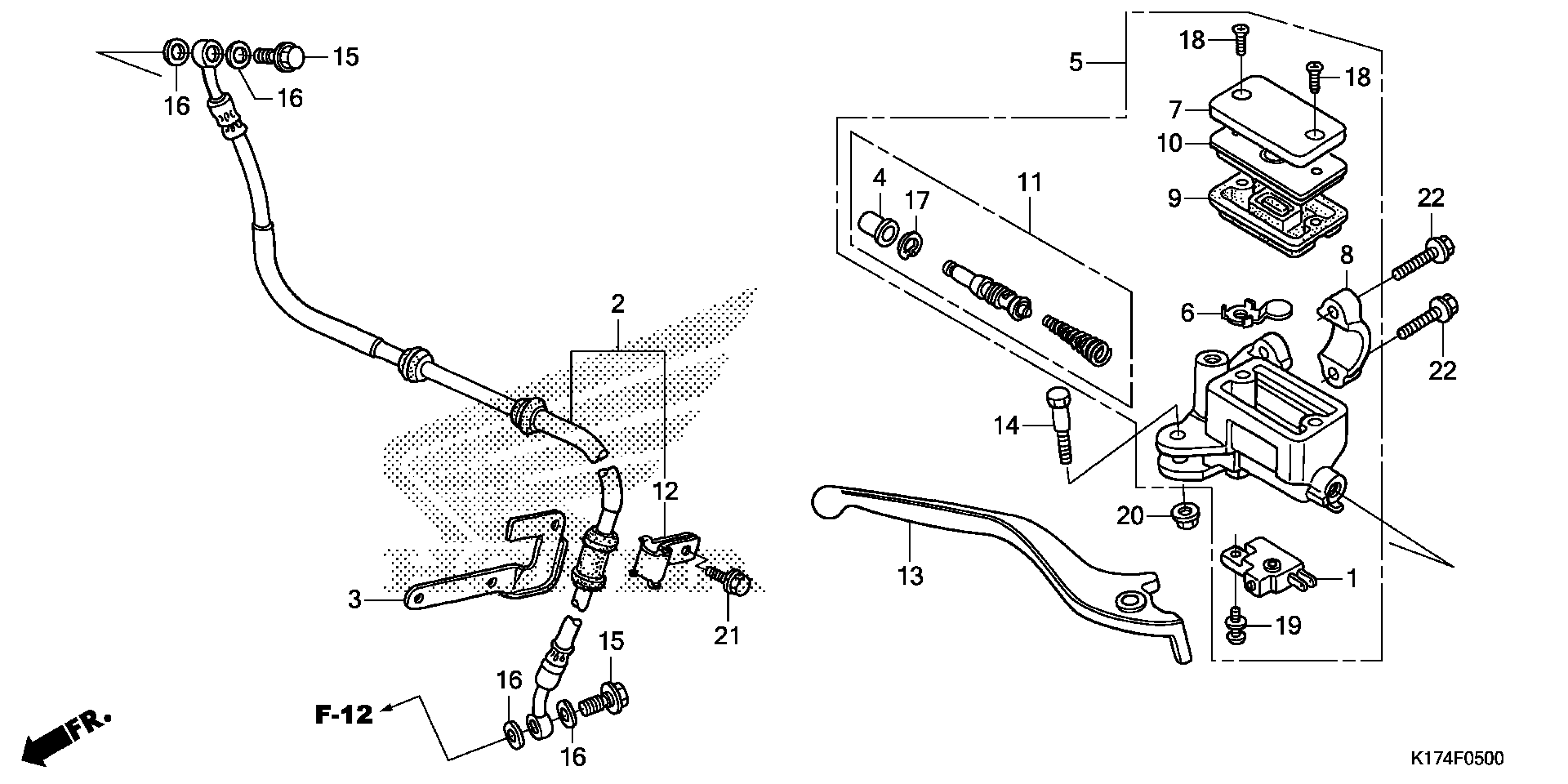

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, FR. BRAKE

45126-KEN-A11

$68.48

3

STAY, FR. BRAKE HOSE CLAMP

45131-KEB-900

$9.61

4

BOOT

45504-410-003

$12.16

5

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-K17-315

$243.46

6

PROTECTOR

45512-MA6-006

$4.28

7

CAP, MASTER CYLINDER

45513-KC2-961

Unavailable

8

HOLDER, MASTER CYLINDER

45517-KR3-901

$20.92

9

DIAPHRAGM

45520-MG7-006

$10.61

9

DIAPHRAGM

45520-GE2-006

$9.58

10

PLATE, DIAPHRAGM

45521-K21-901

$2.34

11

MASTER CYLINDER SET

45530-471-831

$40.86

12

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

13

LEVER, R. HANDLEBAR (COO)

53175-K17-305

$33.05

14

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

15

BOLT, OIL (10X22)

90145-MS9-612

$7.54

16

WASHER, OIL BOLT

90545-300-000

$3.99

17

CIRCLIP

90651-MA5-671

$2.66

18

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

18

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

19

SCREW-WASHER (4X12)

93893-04012-07

$1.49

19

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

22

BOLT, FLANGE (6X22)

96001-06022-02

$2.46
