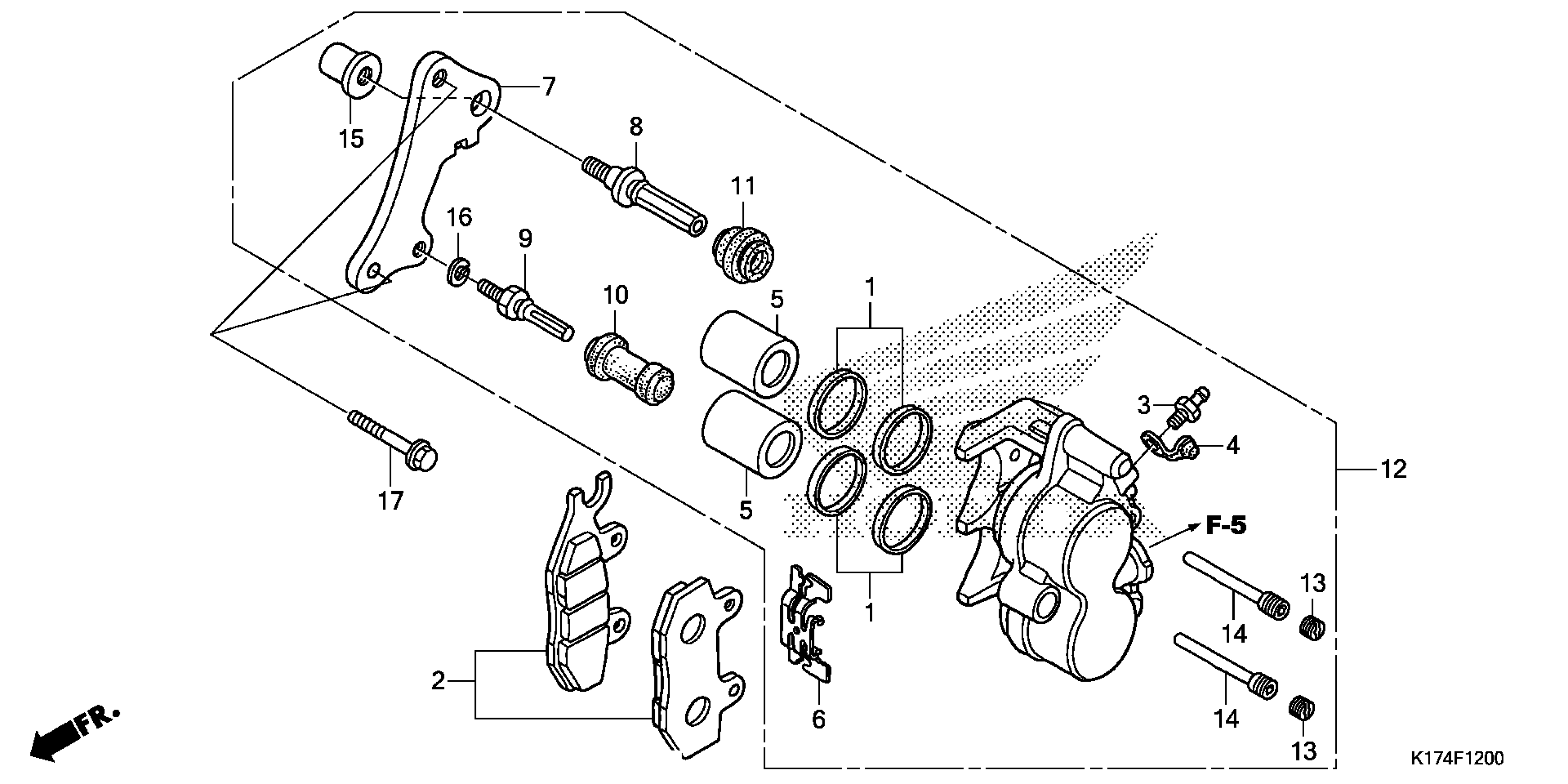

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-GE2-405

$10.47

PAD SET, BRAKE

06455-KEB-902

$41.24

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON

45107-MN5-006

$34.77

SPRING, PAD

45108-KCW-861

$10.87

BRACKET, L. FR.

45110-KEB-901

$20.47

PIN A, BOLT

45131-GE2-006

$5.90

BOLT, PIN

45131-GZ0-006

$8.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-KEB-305

$366.01

PLUG, PIN

45203-MG3-016

$4.88

PIN, HANGER

45215-KA3-732

$10.56

NUT, TORQUE

45216-KW6-901

$10.54

WASHER, WAVE

45216-166-006

$2.16

BOLT, FLANGE (8X25)

90131-GAA-000

$5.90
