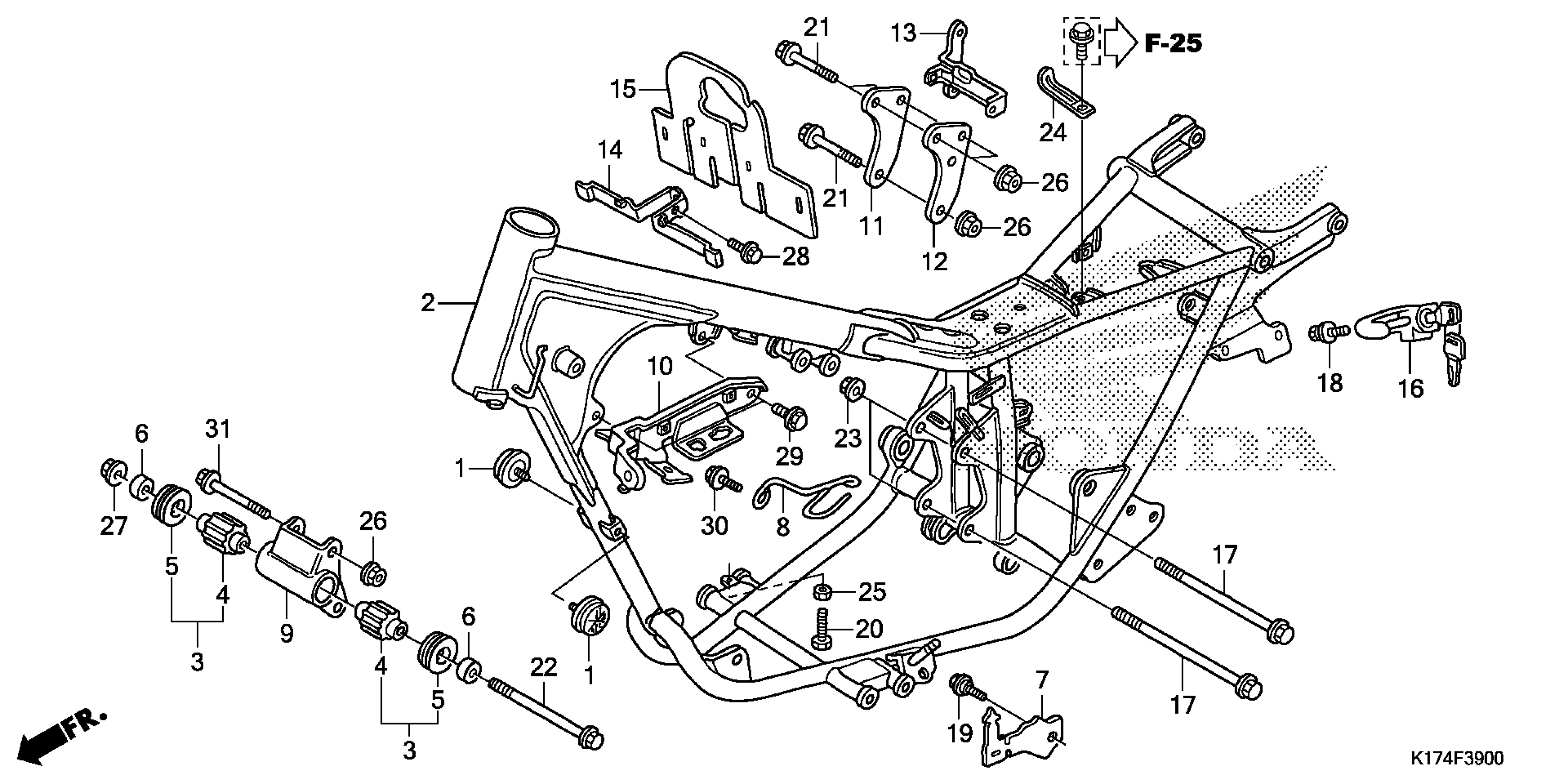

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 FRAME Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-102-870

$32.19

2

FRAME *NH1* (BLACK)

50100-KEN-670ZA

$2,331.16

3

RUBBER, MOUNTING

50200-KR3-000

$43.70

4

RUBBER A, MOUNTING

50201-KN1-000

$22.84

5

RUBBER C, MOUNTING

50203-MB0-010

$22.86

6

COLLAR D, ENGINE SIDE

50218-KR3-000

$10.91

7

COVER, OIL DRAIN

50219-KEB-900

$11.54

8

CLAMP, DRAIN TUBE

50324-KR3-980

$7.61

9

BRACKET, FR. ENGINE HANGER

50351-KR3-000

$28.37

10

PLATE, ELECTRIC

50352-KR3-771

$26.74

11

PLATE, R. ENGINE HANGER (UPPER)

50353-KEN-670

$6.72

12

PLATE, L. ENGINE HANGER (UPPER)

50354-KEN-670

$8.86

13

STAY, SIDE COVER

50357-KEN-670

$40.32

14

STAY, WIND GUARD

50361-KEB-900

$23.01

15

RUBBER, WIND GUARD

50362-KEN-670

$27.33

16

HOLDER ASSY., HELMET (HONDALOCK)

50710-GB4-007

$67.46

17

BOLT, FLANGE (10X110)

90019-399-010

$6.56

18

BOLT, HELMET HOLDER SETTING

90107-ME5-830

$6.78

19

BOLT, FLANGE (6MM)

90111-162-000

$2.62

20

BOLT, HEX. (6X32)

90117-KBA-900

$3.51

21

BOLT, FLANGE (8X37)

90118-471-000

$2.96

22

BOLT, FLANGE (10X130)

90127-KR3-000

$7.88

23

NUT, FLANGE (10MM)

90308-382-670

$3.79

24

CLIP, WIRE

91405-671-000

$8.59

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

25

NUT, HEX. (6MM)

94001-06200-0S

$1.19

26

NUT, FLANGE (8MM)

94050-08000

$0.86

27

NUT, FLANGE (10MM)

94050-10000

$1.41

28

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

29

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

30

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

31

BOLT, FLANGE (8X65)

95701-08065-00

$1.57
