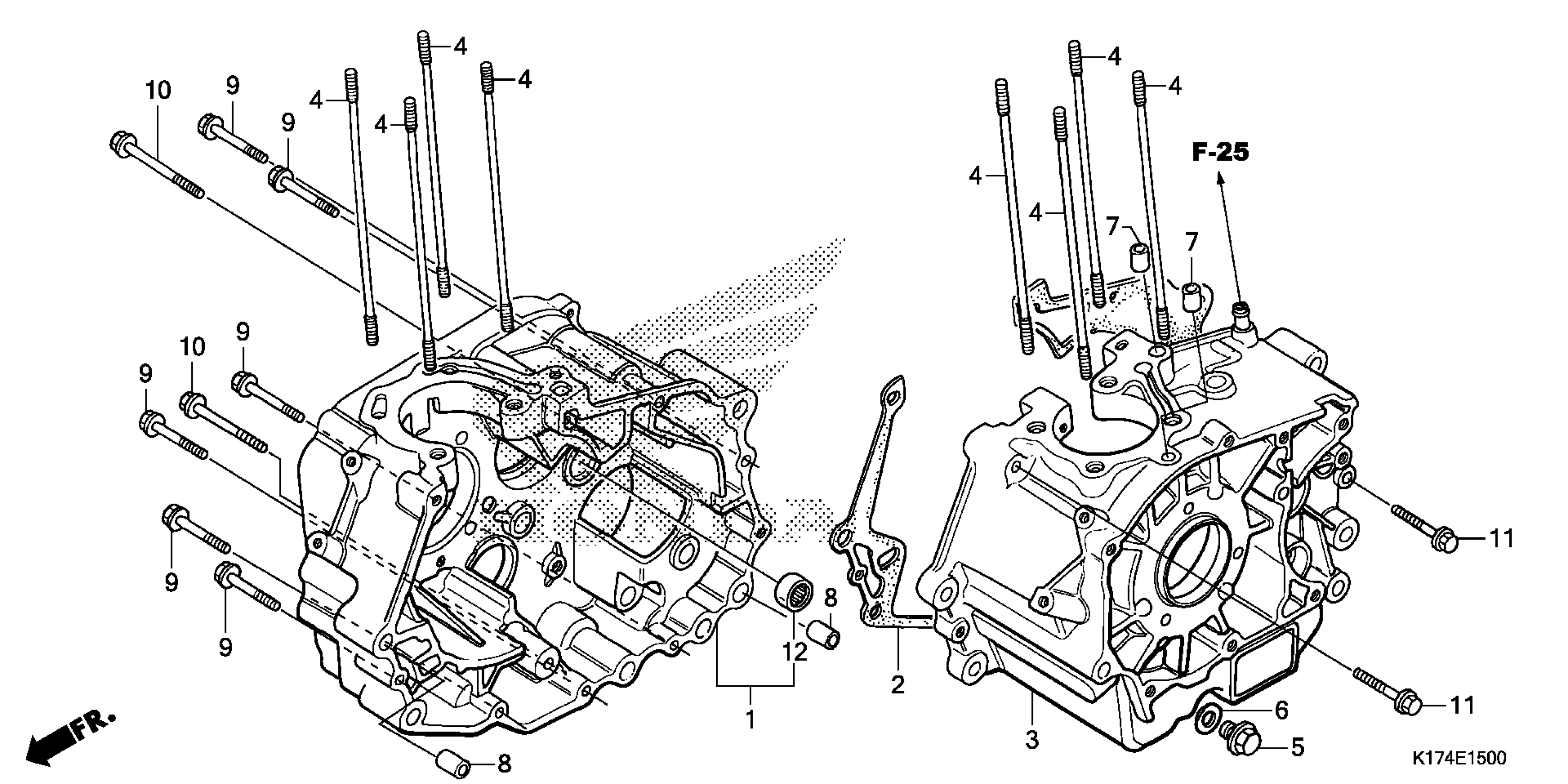

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 CRANKCASE Diagram

CRANKCASE, R.

11100-KBG-670

$438.40

GASKET, CRANKCASE This part replaces 11191-KBG-772.

11191-KBG-773

$21.63

CRANKCASE, L.

11200-KBG-670

$436.94

BOLT, CYLINDER STUD

90031-KB4-670

$12.12

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.26

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

PIN, DOWEL (8X14)

94301-08140

$2.76

PIN, DOWEL (12X20)

94301-12200

$2.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

BOLT, FLANGE (6X65)

95701-06065-00

$1.40

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

BEARING, NEEDLE (15MM)

91106-KB4-003

$12.62
