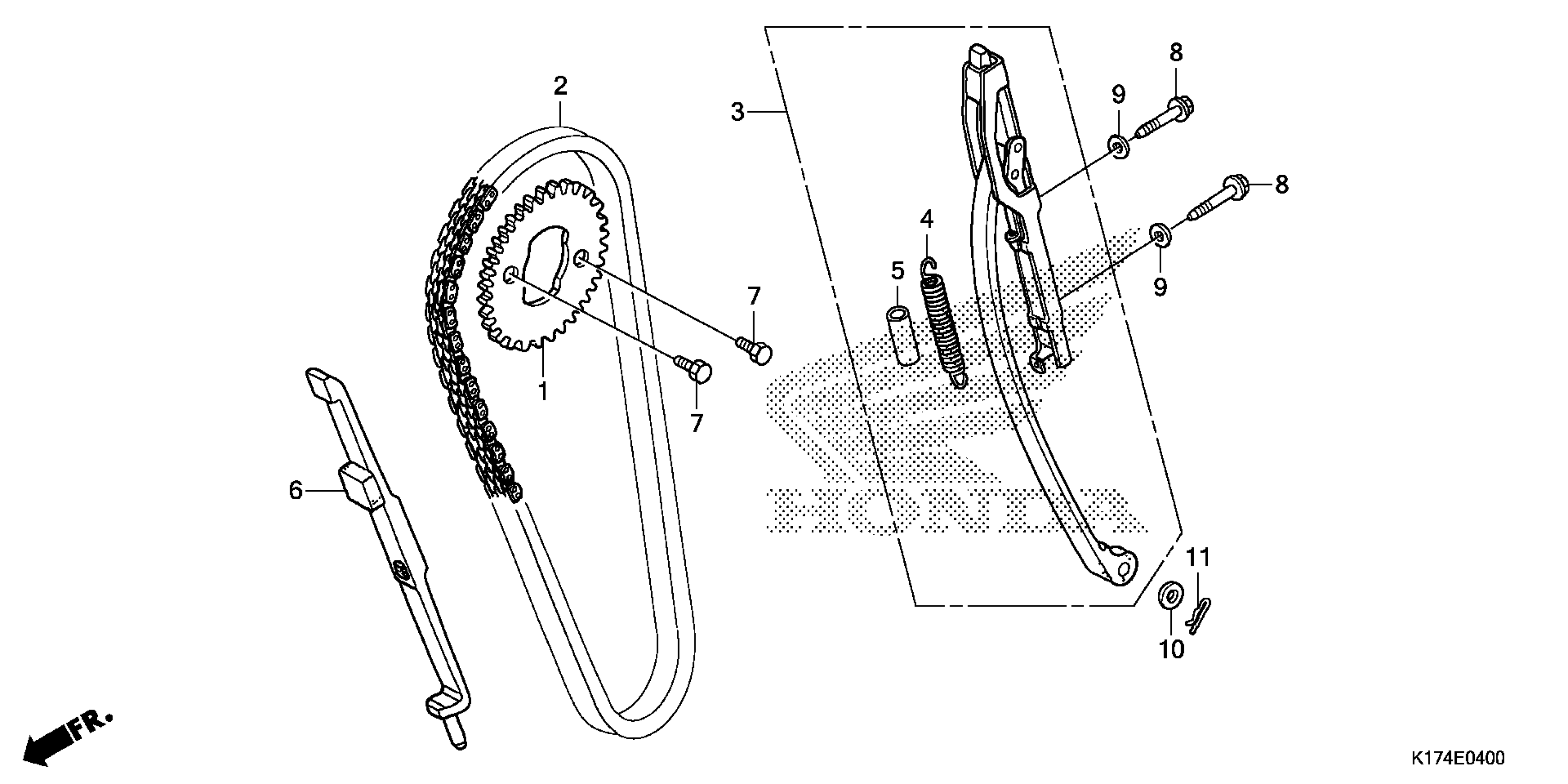

Honda CMX250X2A (16) REBEL, JPN, VIN# JH2MC135-GK000001 CAM CHAIN Diagram

SPROCKET, CAM (38T)

14321-KB4-671

$41.82

CHAIN, CAM (98L)

14401-KBG-671

$175.23

TENSIONER, CAM CHAIN

14500-KB4-670

$186.30

SPRING, CAM CHAIN TENSIONER

14516-KB4-670

$6.63

TUBE, TENSIONER SPRING

14539-KB4-670

$2.67

GUIDE, CAM CHAIN

14550-KB4-671

$40.08

BOLT, HEX. KNOCK (7X13)

90086-413-000

$2.84

BOLT, SPECIAL (6MM)

90125-KB4-670

$4.61

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER A, TACHOMETER

90444-611-920

$2.49

PIN, LOCK (6MM)

94251-06000

$1.49
