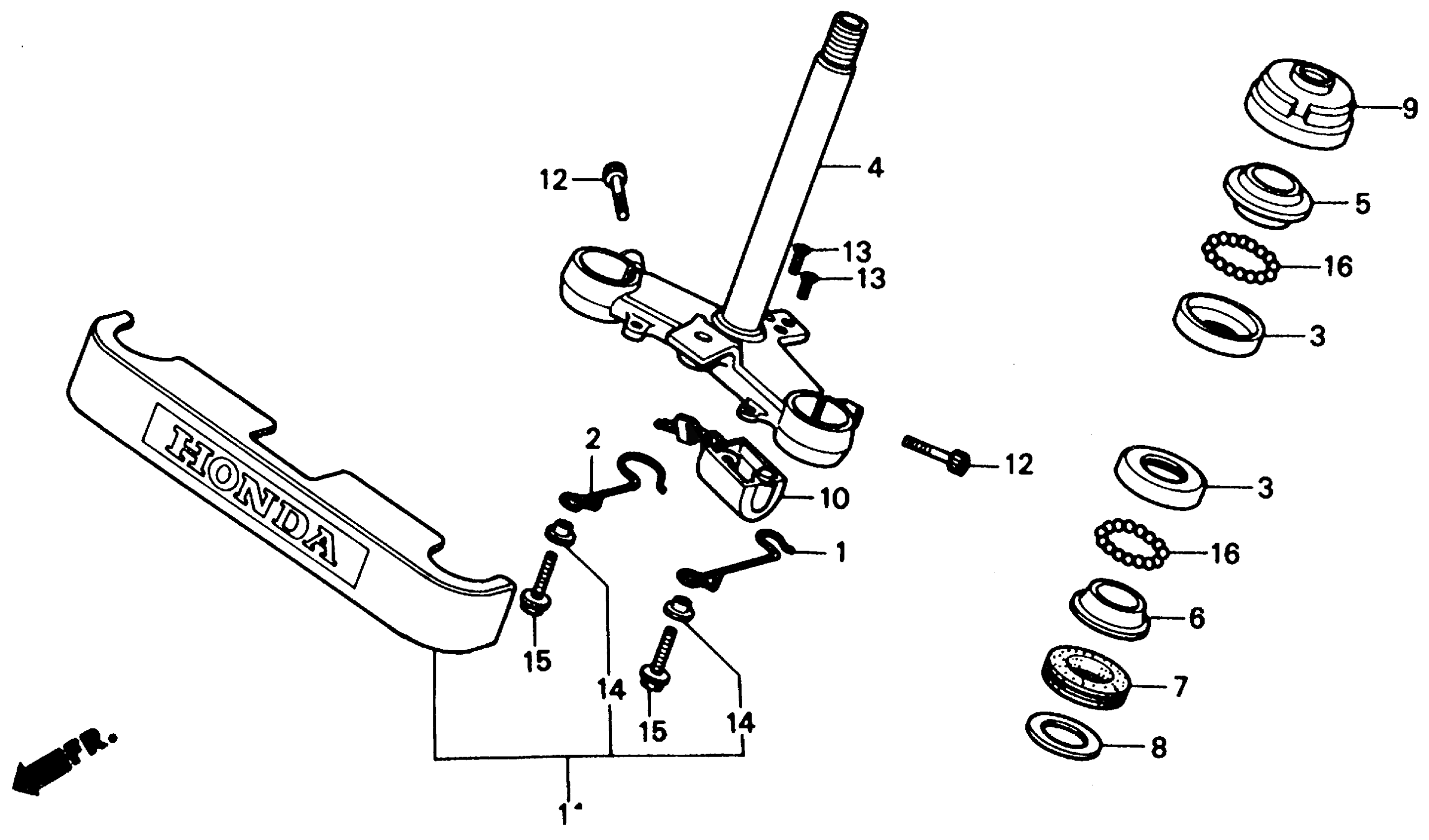

Honda CMX250CAC (86) REBEL 250, JPN, VIN# JH2MC131-GK100001 TO JH2MC131-GK103286 STEERING STEM Diagram

CLAMP, SPEEDOMETER CABLE

45466-KR3-000

Unavailable

CLAMP, FR. BRAKE

45469-KR3-000

Unavailable

RACE, STEERING BALL

50301-041-010

$12.39

STEM SUB-ASSY., STEERING This part replaces 53200-KR3-000.

53219-KR3-620

$248.77

RACE, STEERING TOP CONE

53211-028-010

$11.09

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

LOCK, HANDLEBAR

53600-086-007

$47.89

COVER, FR.

61401-KR3-000

Unavailable

BOLT, SOCKET (8X28)

90154-MF8-000

$5.16

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.55

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
