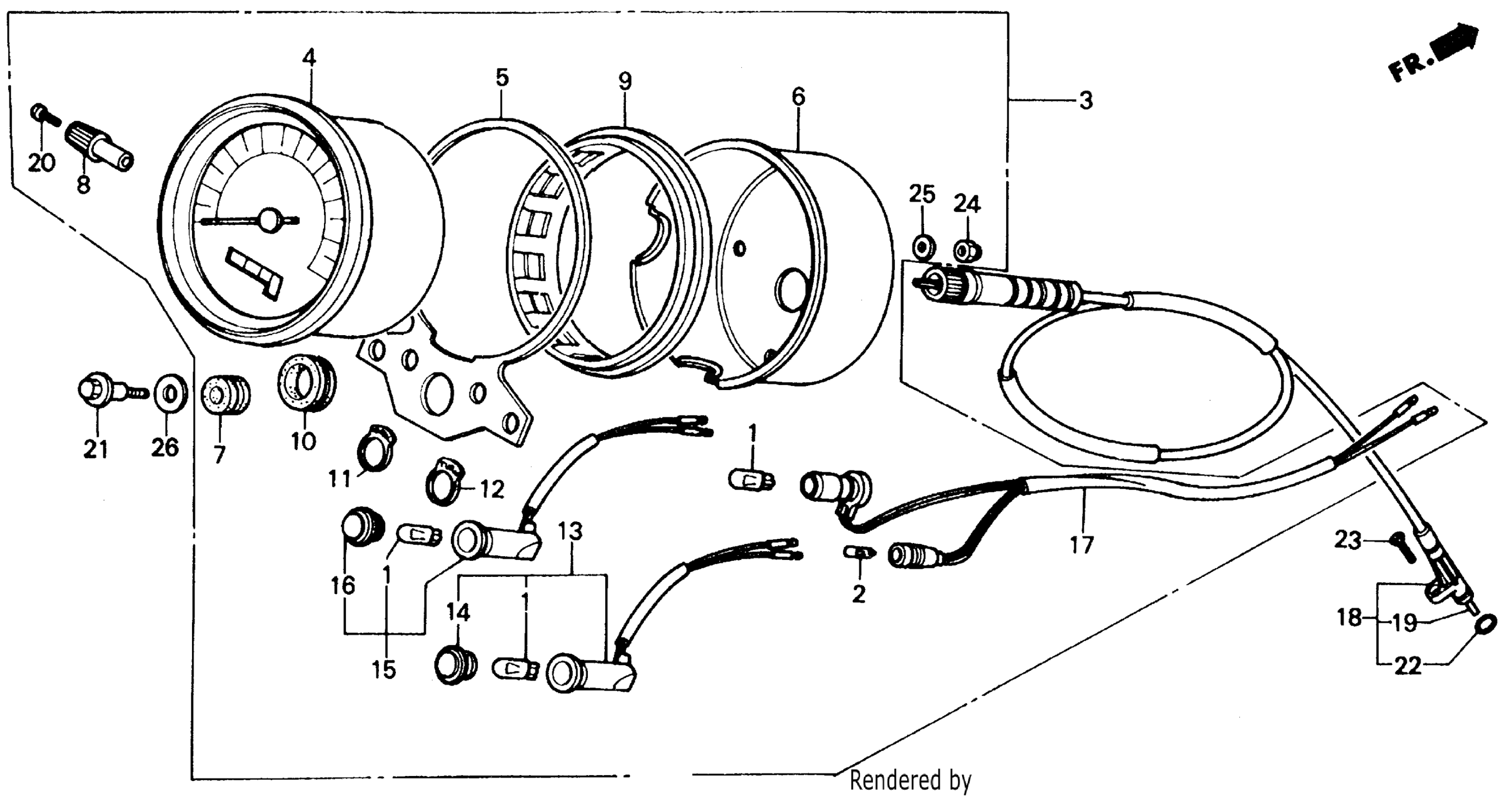

Honda CMX250CAC (86) REBEL 250, JPN, VIN# JH2MC131-GK100001 TO JH2MC131-GK103286 SPEEDOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (12V/2W)

34908-GE0-701

$2.88

3

SPEEDOMETER ASSY. | Use up to Frame SN GK101883 This part replaces 37200-KR3-671.

37200-KR3-902

Unavailable

3

SPEEDOMETER ASSY. This part replaces 37200-KR3-672.

37200-KR3-902

Unavailable

3

SPEEDOMETER ASSY. This part replaces 37200-KR3-673.

37200-KR3-902

Unavailable

3

SPEEDOMETER ASSY.

37200-KR3-902

Unavailable

4

SPEEDOMETER | Use up to Frame SN GK101998 This part replaces 37210-KR3-670.

37210-KR3-672

Unavailable

4

SPEEDOMETER This part replaces 37210-KR3-671.

37210-KR3-672

Unavailable

4

SPEEDOMETER

37210-KR3-672

Unavailable

5

BRACKET

37211-KR3-671

Unavailable

6

COVER

37212-KR3-671

Unavailable

7

RUBBER, MOUNTING | Use up to Frame SN GK102506 This part replaces 37215-KR3-671.

37215-KR3-672

$2.92

7

RUBBER, MOUNTING

37215-KR3-672

$2.92

8

KNOB

37220-KR3-671

$11.09

9

CUSHION, RUBBER

37242-KR3-671

$10.62

10

GROMMET, COMBINATION SWITCH

37312-KR3-671

$7.57

11

PANEL, NEUTRAL PILOT | Use from Frame SN GK101999

37555-KR3-671

Unavailable

12

PANEL, TURN SIGNAL PILOT | Use from Frame SN GK101999

37556-KR3-671

$9.78

13

LAMP ASSY., TURN SIGNAL PILOT

37560-KR3-671

Unavailable

14

LENS, TURN SIGNAL PILOT | Use up to Frame SN GK101998

37561-147-890

Unavailable

14

LENS, TURN SIGNAL PILOT (ORANGE) | Use from Frame SN GK101999

37561-KR3-671

$9.32

15

LAMP ASSY., NEUTRAL PILOT

37570-KR3-671

Unavailable

15

LAMP ASSY., NEUTRAL PILOT | Use up to Frame SN GK101998 This part replaces 37570-KR3-670.

37570-KR3-671

Unavailable

15

LAMP ASSY., NEUTRAL PILOT | Use up to Frame SN GK101998 This part replaces 37572-KR3-670.

37570-KR3-671

Unavailable

15

LAMP ASSY., NEUTRAL PILOT | Use up to Frame SN GK101998 This part replaces 37572-KR3-671.

37570-KR3-671

Unavailable

16

LENS, NEUTRAL PILOT (GREEN)

37571-KR3-671

$9.89

17

SOCKET

37619-KR3-671

Unavailable

18

CABLE ASSY., SPEEDOMETER

44830-KR3-000

$31.01

19

CABLE (INNER) This part replaces 44831-KR3-000.

44831-MM5-000

Unavailable

20

SCREW, PAN (2X6) This part replaces 90102-434-671.

90600-KJ9-700

Unavailable

20

SCREW, PAN (2X6)

90600-KJ9-700

Unavailable

21

SCREW, METER SETTING

90104-KR3-670

$3.46

22

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

22

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

22

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

23

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

24

NUT, CAP (5MM)

94021-05020-0S

$1.49

25

WASHER, PLAIN (5MM)

94101-05000

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49
