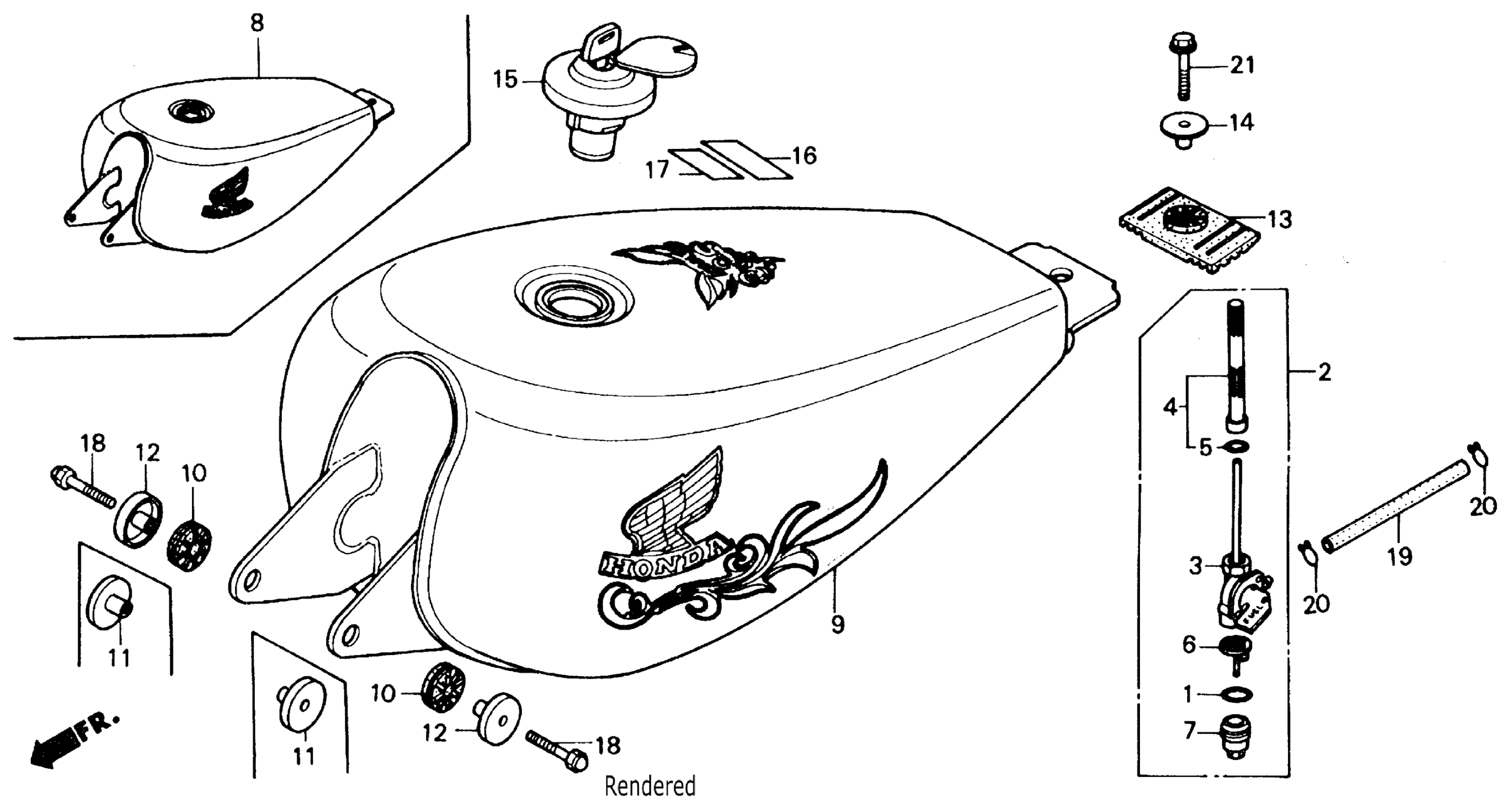

Honda CMX250CAC (86) REBEL 250, JPN, VIN# JH2MC131-GK100001 TO JH2MC131-GK103286 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$4.81

2

PETCOCK ASSY. This part replaces 16950-KB4-005.

16950-KR3-981

Unavailable

2

PETCOCK ASSY.

16950-KR3-981

Unavailable

3

BODY, PETCOCK

16951-471-831

Unavailable

4

FILTER SET, FUEL

16952-469-005

Unavailable

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.80

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.80

6

FILTER, CUP

16959-471-831

$8.40

7

CUP, FUEL STRAINER

16967-MA2-771

$22.52

8

TANK ASSY., FUEL *R118C* (CANDY SUPREME RED) (NOT AVAILABLE)

17530-KR3-750ZA

Unavailable

8

TANK ASSY., FUEL *NH150PA* (PEARL STELLAR BLACK) (NOT AVAILABLE)

17530-KR3-750ZB

Unavailable

8

TANK SUB-ASSY., FUEL *PB154CU* (CANDY EIGER BLUE) (NOT AVAILABLE)

17530-KR3-790ZA

Unavailable

10

CUSHION, FR. FUEL TANK

17611-KR3-000

$4.47

12

COLLAR, FR. FUEL TANK MOUNTING

17612-MB1-000

$17.37

13

CUSHION, RR. FUEL TANK

17613-KR3-000

$12.78

14

COLLAR, FUEL TANK MOUNTING

17614-KR3-000

$4.16

15

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$63.69

16

MARK, ACCESSORIES & LOADING CAUTION (GOLD) (NOT AVAILABLE)

87512-KR3-670

Unavailable

16

MARK, ACCESSORIES & LOADING CAUTION

87512-KR3-770

Unavailable

17

MARK, DRIVE CAUTION (TYPEG)

87560-ME9-670ZA

$5.23

18

BOLT, CAP (6X20) This part replaces 92600-06020-0B.

92601-06020-0B

$2.62

19

BULK HOSE, FUEL (5.5X3000) (5.3X120)

95001-55003-60M

$42.48

20

CLIP, TUBE (B10)

95002-02100

$1.72

21

BOLT, FLANGE (8X28)

96300-08028-07

Unavailable
