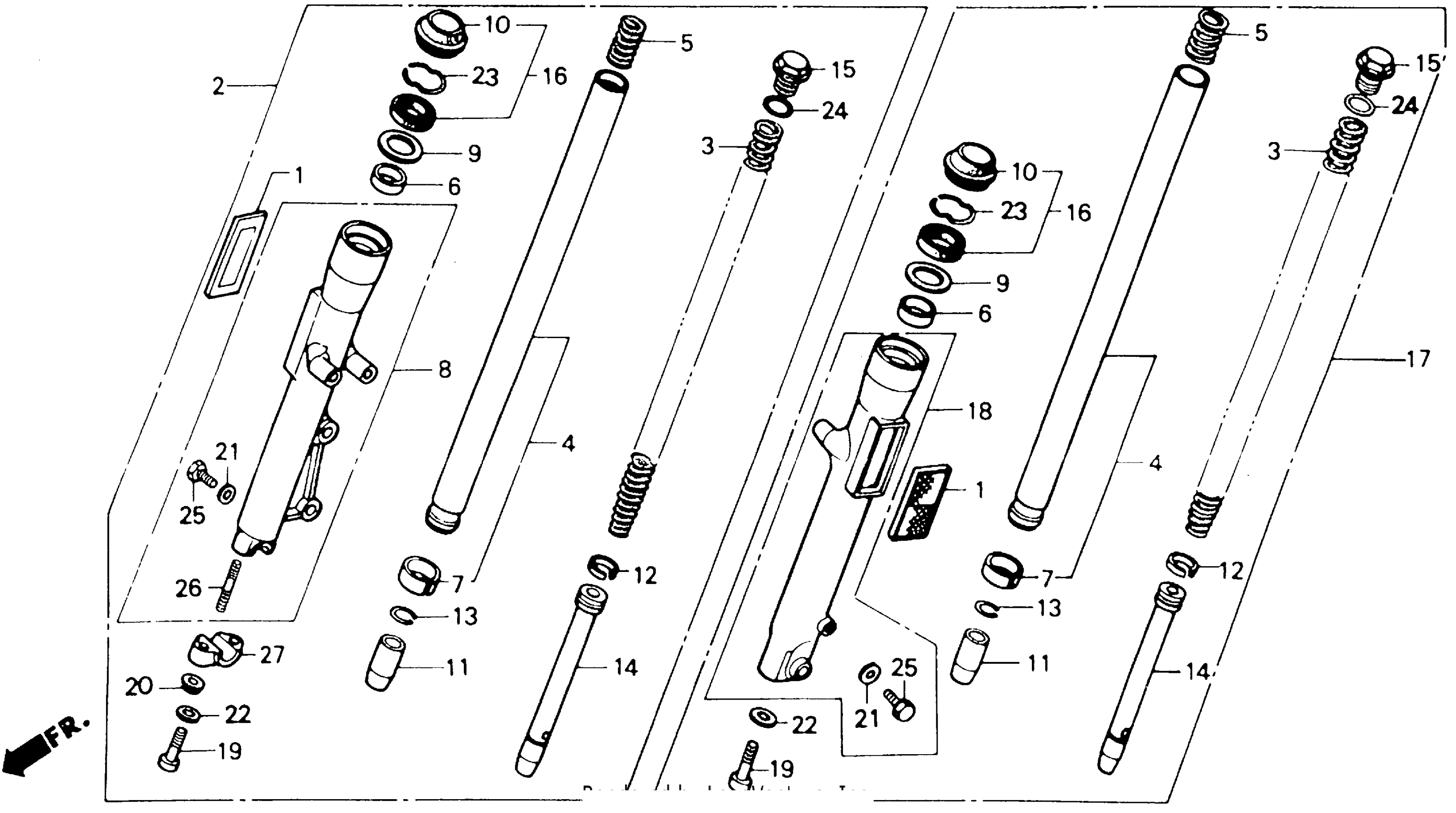

Honda CMX250CAC (86) REBEL 250, JPN, VIN# JH2MC131-GK100001 TO JH2MC131-GK103286 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-KR3-671

$31.20

1

REFLECTOR, FR. REFLEX | Use up to Frame SN GK101998 This part replaces 33740-KR3-670.

33740-KR3-671

$31.20

2

FORK ASSY., R. FR.

51400-KR3-671

Unavailable

3

SPRING, FR. FORK

51401-KR3-003

$67.48

4

PIPE, FR. FORK

51410-KR3-003

$327.41

5

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

6

BUSH, GUIDE

51414-447-731

$15.25

7

BUSH, SLIDER

51415-KR3-003

$18.00

8

CASE, R. (LOWER)

51420-KR3-003

Unavailable

9

SPACER

51422-KL8-003

$8.36

10

DUST SEAL

51425-473-003

$26.44

11

PIECE, OIL LOCK

51432-KR3-003

$19.03

12

RING, PISTON

51437-400-771

$6.30

13

RING, PISTON STOPPER

51439-331-770

$5.26

14

PIPE, SEAT

51440-KR3-003

$64.77

15

BOLT, FR. FORK

51454-KR3-003

$36.67

16

SEAL SET, FR. FORK

51490-473-305

$37.03

17

FORK ASSY., L. FR.

51500-KR3-671

Unavailable

18

CASE, L. (LOWER)

51520-KR3-003

Unavailable

19

BOLT, SOCKET (8X27)

90116-383-721

$5.13

20

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

20

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

21

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

RING, OIL SEAL STOP

90601-369-000

$3.47

24

O-RING

91356-KR3-003

$3.70

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

BOLT 2, STUD (8X32)

92900-08032-3E

Unavailable

27

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
