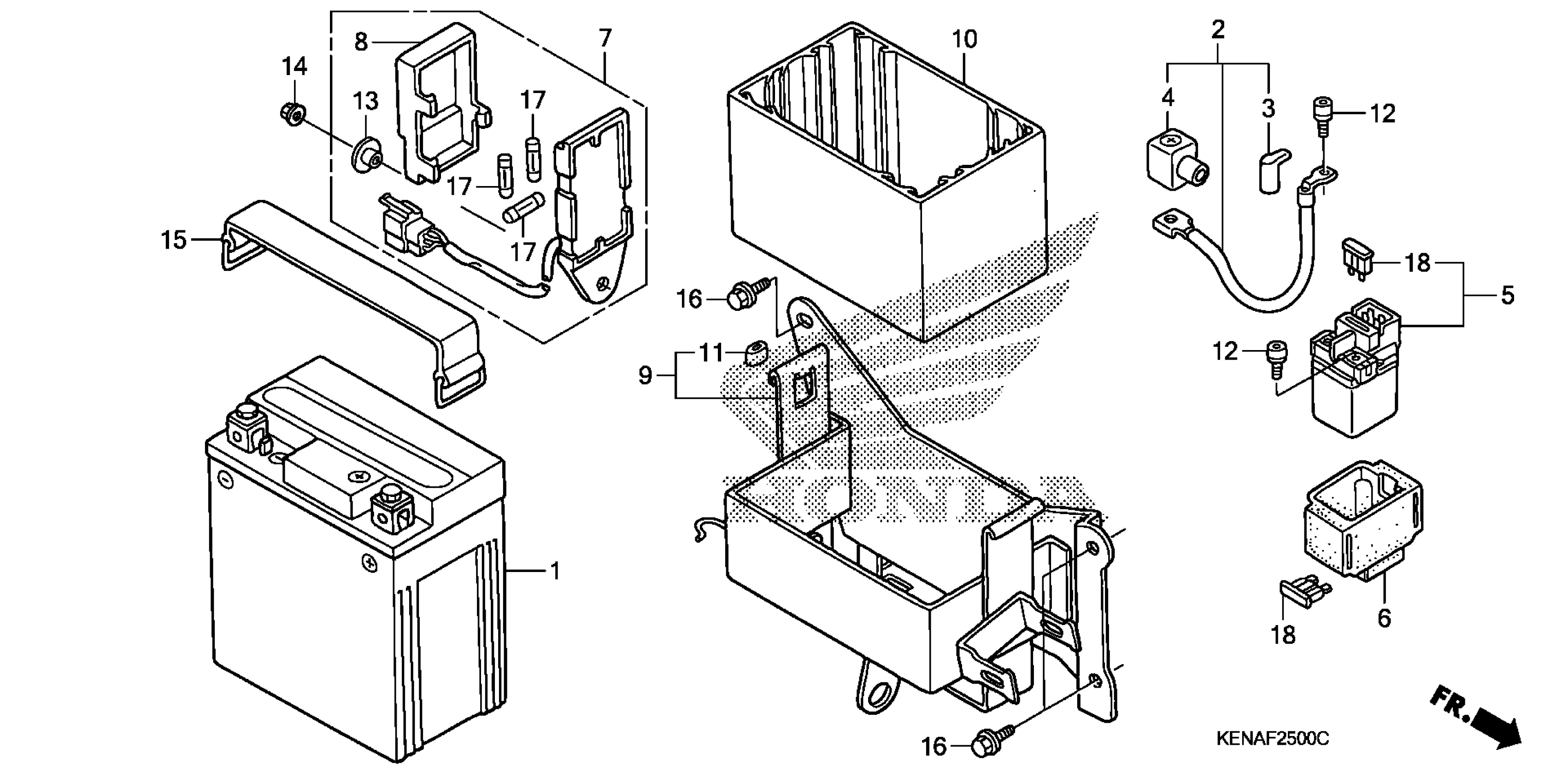

Honda CMX250CAC (12) REBEL, JPN, VIN# JH2MC131-CK600001 BATTERY Diagram

BATTERY (YTX7L-BS) (YUASA) (MSDS) This part replaces 31500-KW3-676.

31500-KW3-676AH

$84.92

BATTERY (YTX7L-BS) (YUASA) (MSDS)

31500-KW3-676AH

$84.92

CABLE, STARTER MAGNETIC BATTERY

32401-KR3-870

$25.39

COVER A, STARTER MAGNETIC TERMINAL

32405-KR3-870

$4.90

COVER, BATTERY

32412-KR3-870

$4.66

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-KR3-870.

35850-KR3-871

$107.02

RUBBER, SHOCK

35856-KR3-870

$11.93

BOX ASSY., FUSE

38200-KR3-871

$78.95

COVER, FUSE

38210-KR3-671

$11.93

TRAY, BATTERY

50325-KR3-870

$164.23

CUSHION, BATTERY

50326-KR3-870

$31.36

RUBBER, BATTERY TRAY

50329-KR3-670

$2.39

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

NUT, FLANGE (6MM)

94050-06000

$1.49

BAND, BATTERY

95012-15001

$6.31

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

FUSE B (10A)

98200-21000

$1.49

FUSE, BLADE (20A)

98200-32000

$1.49
