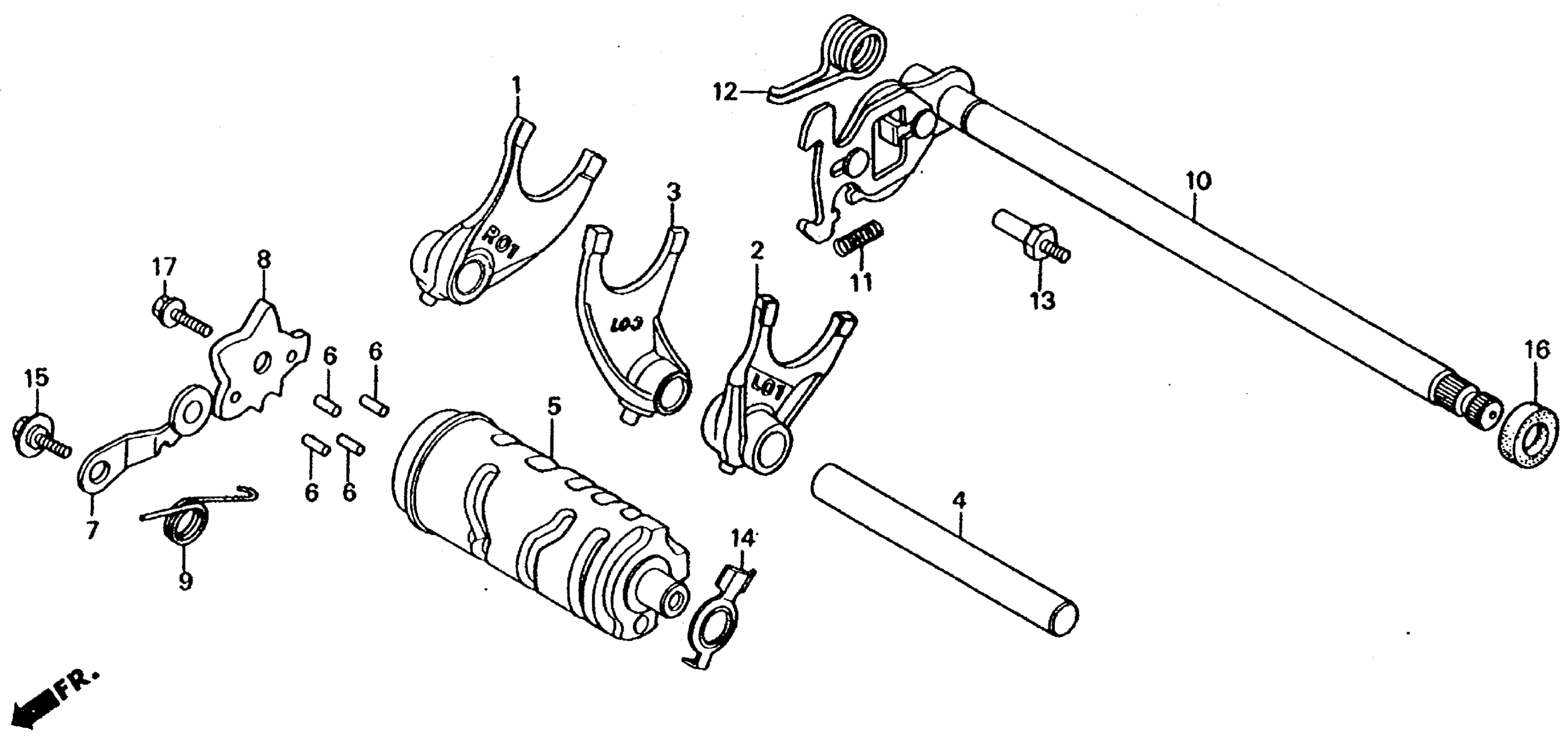

Honda CMX250CA (87) REBEL 250, JPN, VIN# JH2MC130-HK200005 TO JH2MC130-HK208158 SHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-KB4-670

$81.90

FORK, L. GEARSHIFT

24221-KB4-670

$81.90

FORK, CENTER GEARSHIFT

24231-KB4-670

$70.39

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$16.72

DRUM, GEARSHIFT

24301-KB4-670

$125.69

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

STOPPER, GEARSHIFT DRUM

24430-KB4-670

$17.34

PLATE, DRUM STOPPER

24435-KB4-670

$10.72

SPRING, SHIFT DRUM STOPPER

24436-KR3-000

$2.49

SPINDLE, GEARSHIFT

24610-KR3-000

$99.25

SPRING, GEARSHIFT ARM

24641-115-010

$2.92

SPRING, GEARSHIFT RETURN

24651-KR3-000

$5.43

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

ROTOR, NEUTRAL SWITCH This part replaces 35753-KR3-000.

35753-KR3-010

$2.75

ROTOR, NEUTRAL SWITCH

35753-KR3-010

$2.75

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT (NOT AVAILABLE)

90023-399-000

Unavailable

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$4.06

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
