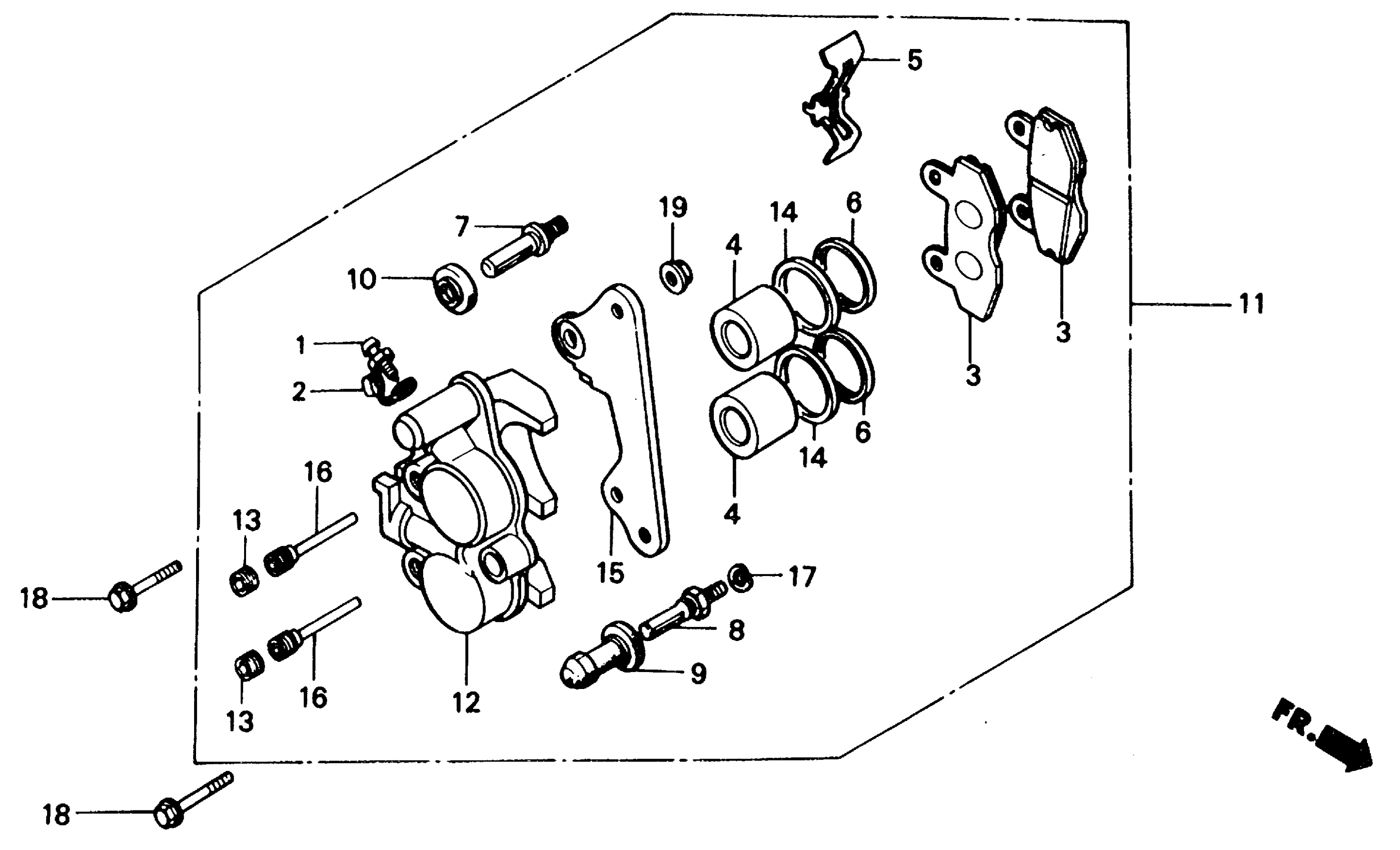

Honda CMX250CA (87) REBEL 250, JPN, VIN# JH2MC130-HK200005 TO JH2MC130-HK208158 FRONT BRAKE CALIPER Diagram

PAD SET,FR. This part replaces 451A0-KR3-603.

06455-KR3-006

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

PAD (JB) This part replaces 45105-KR3-601.

45105-KW7-901

Unavailable

PAD (JB) This part replaces 45105-KR3-602.

45105-KW7-901

Unavailable

PAD (JB) This part replaces 45105-KR3-603.

45105-KW7-901

Unavailable

PAD (JB)

45105-KW7-901

Unavailable

PISTON

45107-GE2-006

$39.19

SPRING, PAD

45108-GE2-006

Unavailable

DUST SEAL

45109-GE2-006

$4.94

PIN A, BOLT

45131-GE2-006

$5.81

BOLT, PIN

45131-166-016

$7.10

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

CALIPER, R. FR. This part replaces 45200-KR3-601.

45200-KR3-603

Unavailable

CALIPER ASSY., R. FR.

45200-KR3-602

Unavailable

CALIPER

45201-GE2-006

Unavailable

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$4.76

PLUG, PIN

45203-MG3-016

$4.76

SEAL, PISTON

45209-GE2-006

$6.44

BRACKET, FR.

45210-KK4-006

Unavailable

PIN, HANGER This part replaces 45215-GE2-006.

45215-GE2-016

$10.34

PIN, HANGER

45215-GE2-016

$10.34

WASHER, WAVE

45216-166-006

$2.13

BOLT, FLANGE (8X25)

90124-KK4-000

$3.28

NUT, FLANGE (8MM)

94050-08080

$0.86
