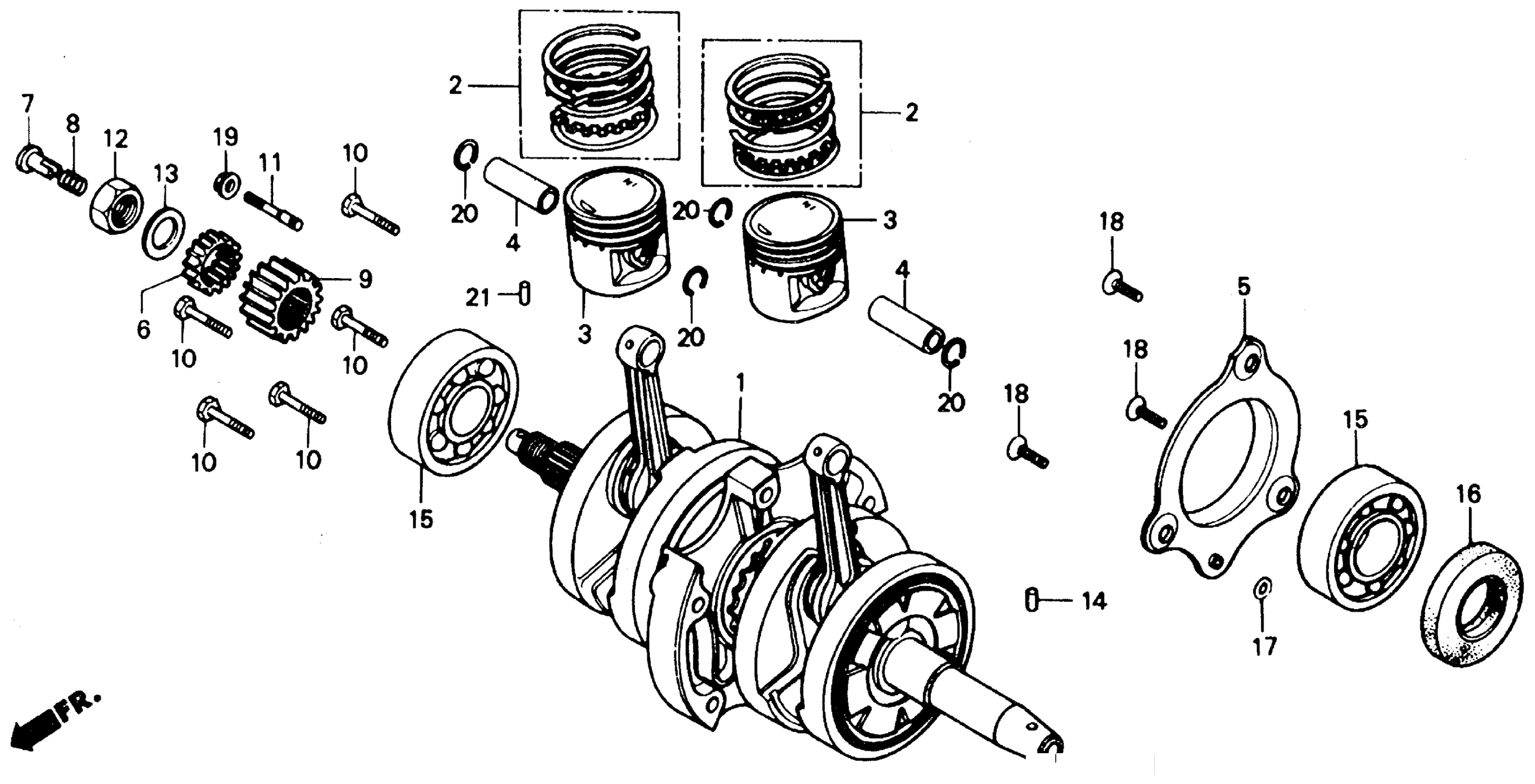

Honda CMX250CA (87) REBEL 250, JPN, VIN# JH2MC130-HK200005 TO JH2MC130-HK208158 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-KR3-600.

13000-KR3-603

$754.61

1

CRANKSHAFT This part replaces 13000-KR3-601.

13000-KR3-603

$754.61

1

CRANKSHAFT This part replaces 13000-KR3-602.

13000-KR3-603

$754.61

1

CRANKSHAFT

13000-KR3-603

$754.61

2

RING SET, PISTON

13011-KB4-305

$36.56

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.75) | (Optional).

13014-KB4-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13015-KB4-305

Unavailable

3

PISTON This part replaces 13101-KR3-003.

13101-KR3-306

Unavailable

3

PISTON

13101-KR3-306

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-KR3-305

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-KR3-305

Unavailable

3

PISTON (OS 0.75) | (Optional).

13104-KR3-305

Unavailable

3

PISTON (1.00) | (Optional).

13105-KR3-305

Unavailable

4

PIN, PISTON

13111-384-000

$18.00

5

PLATE, OIL THROUGH

13385-KB4-670

$29.41

6

GEAR B, OIL PUMP DRIVE (20T)

15335-KB4-670

$48.29

7

THROUGH, OIL

15441-149-000

$9.09

8

SPRING, OIL THROUGH

15447-149-000

$2.67

9

GEAR, PRIMARY DRIVE (19T) This part replaces 23121-464-000.

23121-464-010

$63.12

9

GEAR, PRIMARY DRIVE (19T)

23121-464-010

$63.12

10

BOLT, HEX. (8X35) (NOT AVAILABLE)

90001-KB4-670

Unavailable

11

BOLT, STUD (7X32)

90035-399-000

$2.65

12

NUT, HUB (16MM)

90202-567-000

$3.70

13

WASHER, LOCK

90401-399-000

$4.67

14

PIN, DOWEL (4X4.4)

90703-399-000

$3.97

15

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-KB4-671.

91001-071-003

$41.93

15

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$41.93

16

OIL SEAL (35X52X7) (NOK)

91201-402-015

$12.28

17

O-RING (6X3)

91319-323-000

$2.58

18

SCREW, FLAT (6X16)

93600-06016-0A

$0.90

19

NUT, FLANGE (6MM)

94050-06000

$0.59

20

CLIP, PISTON PIN (15MM)

94601-15000

$0.93

21

ROLLER (2X13.8)

96220-20138

$0.46
