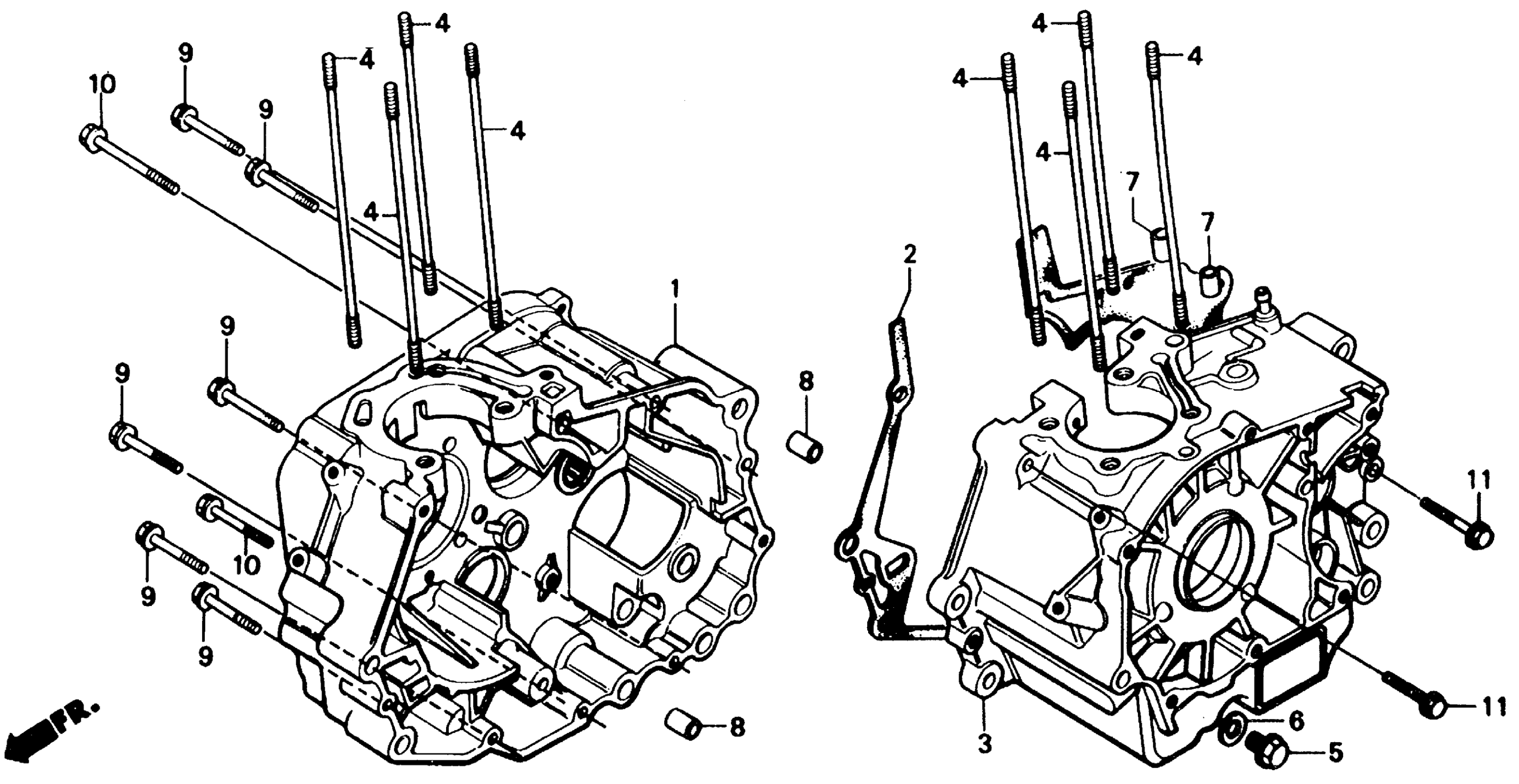

Honda CMX250CA (87) REBEL 250, JPN, VIN# JH2MC130-HK200005 TO JH2MC130-HK208158 CRANKCASE Diagram

CRANKCASE, R. This part replaces 11100-KB4-710.

11100-KB4-671

Unavailable

GASKET, CRANKCASE This part replaces 11191-KBG-771.

11191-KBG-773

$23.41

GASKET, CRANKCASE This part replaces 11191-KB4-670.

11191-KBG-773

$23.41

GASKET, CRANKCASE This part replaces 11191-399-306.

11191-KBG-773

$23.41

CRANKCASE, L. (NOT AVAILABLE)

11200-KR3-000

Unavailable

BOLT, CYLINDER STUD

90031-KB4-670

$13.19

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

PIN, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
