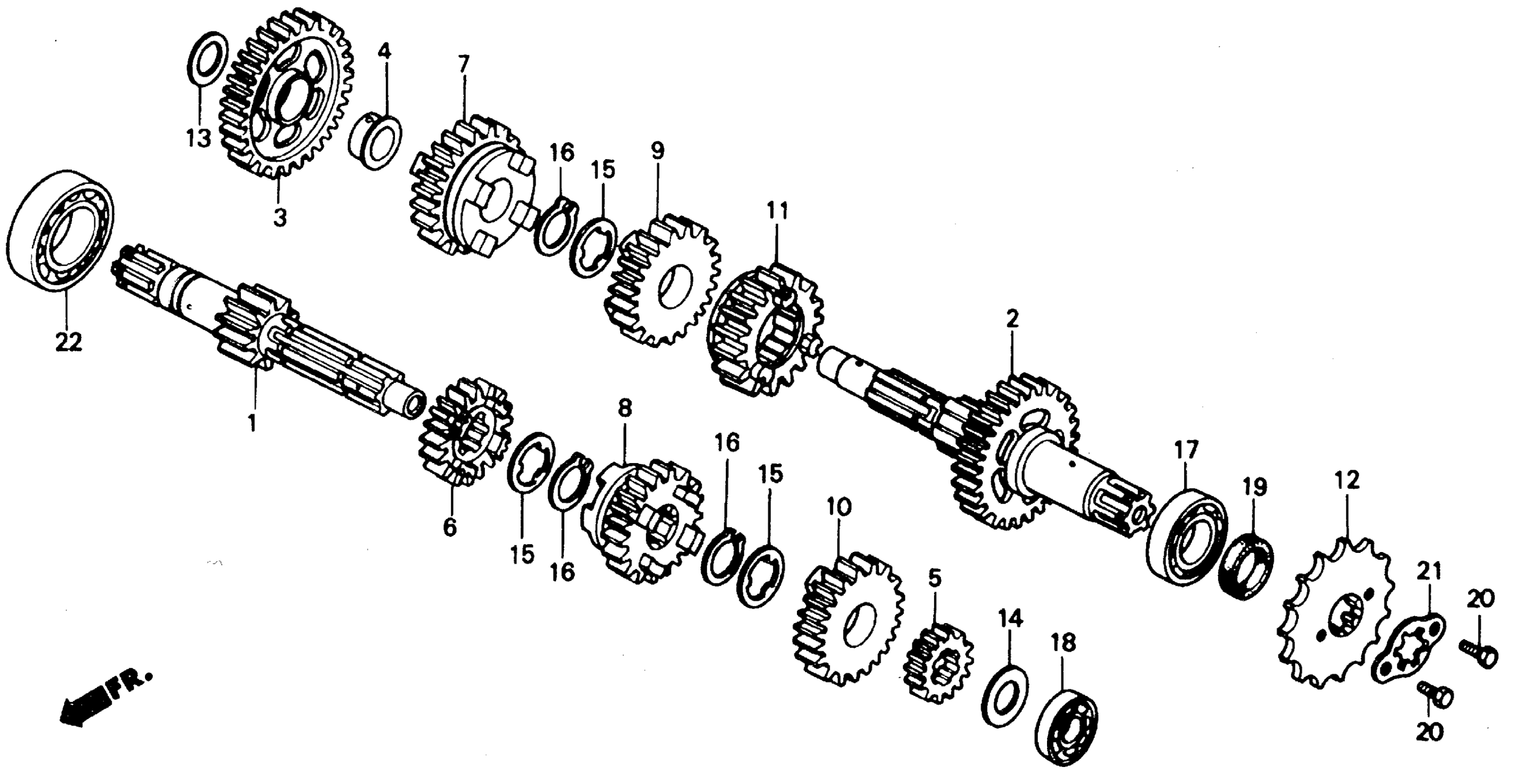

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-KR3-000

Unavailable

2

COUNTERSHAFT (32T) This part replaces 23220-KR3-000.

23220-KR3-630

$208.58

2

COUNTERSHAFT (32T)

23220-KR3-630

$208.58

3

GEAR, COUNTERSHAFT LOW (37T)

23426-KB4-670

$108.68

4

BUSH (16.5MM)

23427-KB4-670

$17.25

5

GEAR, MAINSHAFT SECOND (18T)

23441-KB4-670

$52.41

6

GEAR, MAINSHAFT THIRD (21T) This part replaces 23461-KB4-670.

23461-KB4-671

$75.25

6

GEAR, MAINSHAFT THIRD (21T)

23461-KB4-671

$75.25

7

GEAR, COUNTERSHAFT THIRD (28T) This part replaces 23471-KR3-770.

23471-KR3-771

$79.83

7

GEAR, COUNTERSHAFT THIRD (28T)

23471-KR3-771

$79.83

8

GEAR, MAINSHAFT FOURTH (24T) This part replaces 23481-KB4-670.

23481-KB4-671

$93.10

8

GEAR, MAINSHAFT FOURTH (24T)

23481-KB4-671

$93.10

9

GEAR, COUNTERSHAFT FOURTH (26T) This part replaces 23491-KB4-670.

23491-KB4-672

$80.41

9

GEAR, COUNTERSHAFT FOURTH (26T) This part replaces 23491-KB4-671.

23491-KB4-672

$80.41

9

GEAR, COUNTERSHAFT FOURTH (26T)

23491-KB4-672

$80.41

10

GEAR, MAINSHAFT FIFTH (23T) This part replaces 23501-KR3-000.

23501-KR3-010

$83.35

10

GEAR, MAINSHAFT FIFTH (23T)

23501-KR3-010

$83.35

11

GEAR, COUNTERSHAFT TOP (21T) This part replaces 23511-KB4-670.

23511-KB4-672

$97.10

11

GEAR, COUNTERSHAFT TOP (21T) This part replaces 23511-KB4-671.

23511-KB4-672

$97.10

11

GEAR, COUNTERSHAFT TOP (21T)

23511-KB4-672

$97.10

12

SPROCKET, DRIVE (14T)

23801-KR3-000

$50.75

13

COLLAR (15MM)

23911-KB4-670

$6.12

14

WASHER, THRUST (15MM)

90451-107-000

$1.30

15

WASHER A, SPLINE (20MM)

90455-107-000

$1.75

16

SET-RING (20MM)

90605-200-000

$2.67

17

BEARING, BALL (22X47X14) (NTN)

91003-KB4-671

$47.41

18

BEARING, RADIAL BALL (6202) (NTN)

91005-KR3-003

$23.64

19

OIL SEAL (22X34X7) (ARAI)

91207-KB4-671

$3.77

20

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.28

20

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.28

20

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

21

PLATE B, FIXING

95014-92100

$0.93

22

BEARING, RADIAL BALL (6304)

96100-63040-00

$12.93
