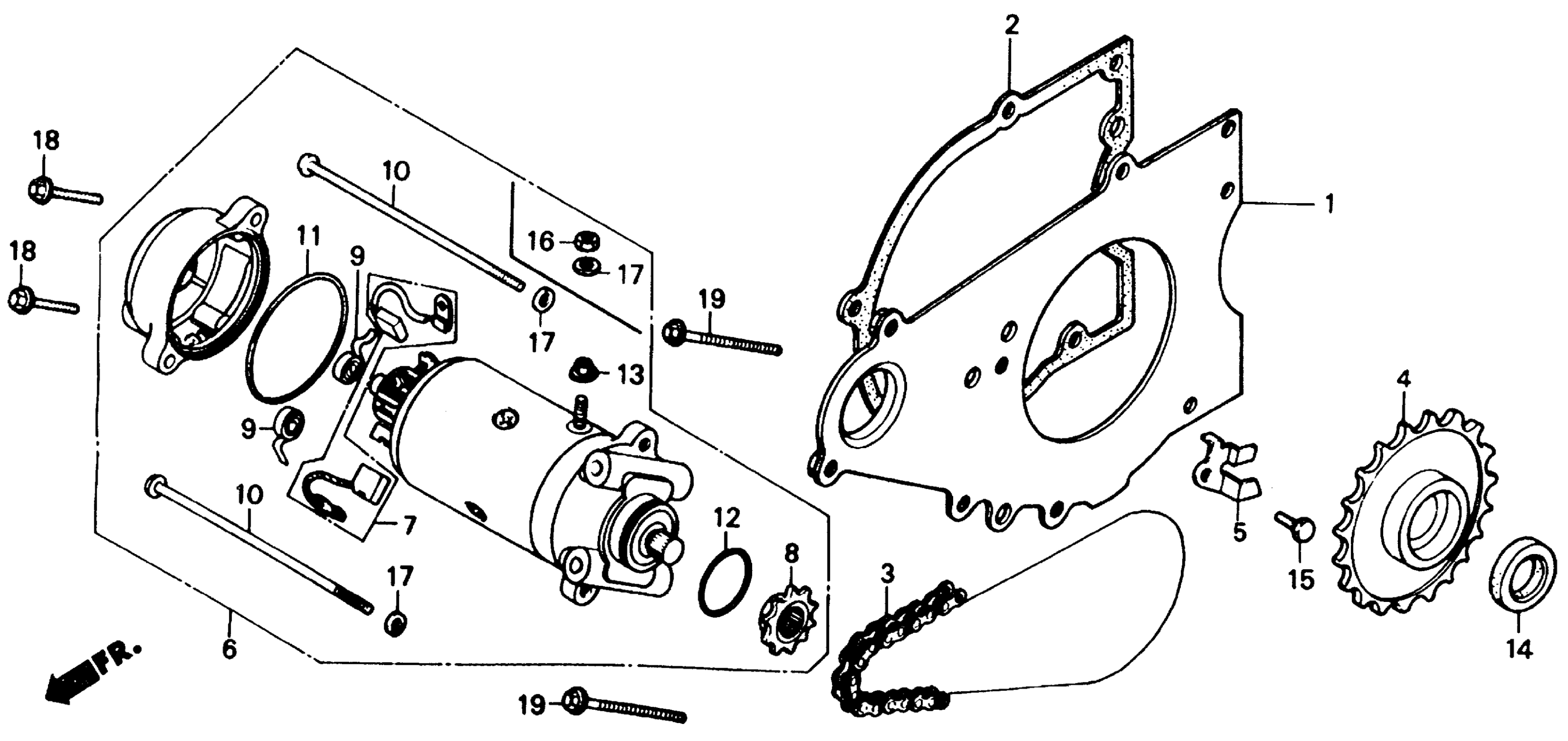

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 STARTING MOTOR Diagram

#

Description
Price

1

SPACER, L. SIDE

11371-KB4-670

$95.03

2

GASKET, L. This part replaces 11394-KBG-771.

11394-KBG-773

$13.29

2

GASKET, L. This part replaces 11394-399-000.

11394-KBG-773

$13.29

2

GASKET, L. This part replaces 11394-399-306.

11394-KBG-773

$13.29

3

CHAIN, STARTING (56L)

28101-KB4-671

$38.46

4

SPROCKET, STARTING (38T)

28110-KB4-671

$103.64

5

PLATE, STARTING SPROCKET SETTING

28117-402-000

$2.99

6

STARTER MOTOR ASSY. This part replaces 31200-KR3-008.

31200-KR3-405

Unavailable

7

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

8

SPROCKET, STARTER MOTOR (13T)

31202-216-154

$50.41

9

SPRING, BRUSH This part replaces 31204-225-154.

31204-230-174

$4.64

9

SPRING, BRUSH

31204-230-174

$4.64

10

BOLT, STARTER COVER (NOT AVAILABLE)

31205-402-008

Unavailable

11

O-RING (60X1.4)

31206-402-008

Unavailable

12

O-RING, PINION CAP

53438-611-000

$5.80

13

NUT-WASHER (6MM)

90071-MB0-000

$1.97

14

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-003.

91205-965-003

$5.80

14

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-005.

91205-965-003

$5.80

14

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

15

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

15

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

15

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

18

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

19

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

19

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
