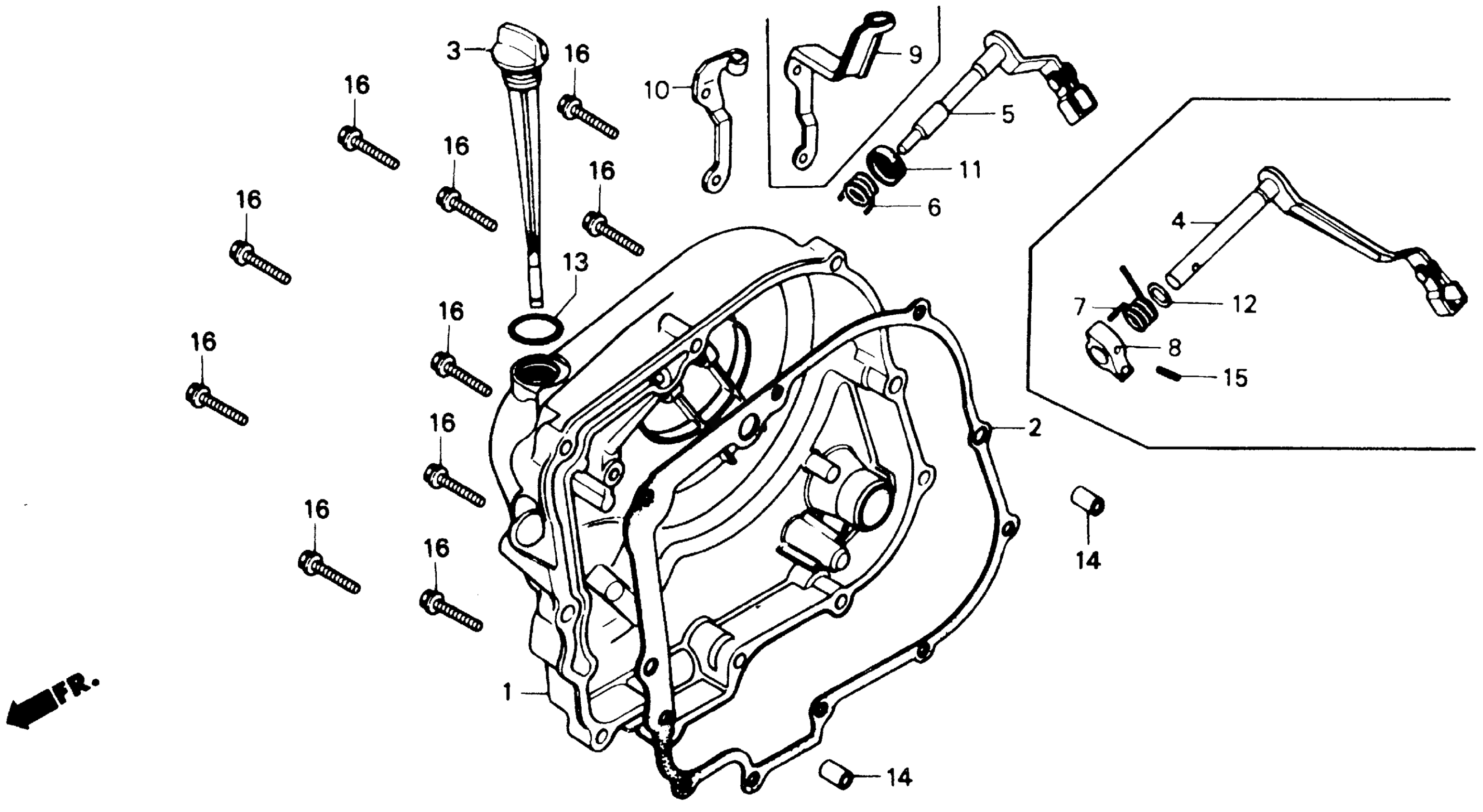

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-KB4-770

Unavailable

GASKET, R. This part replaces 11393-KBG-771.

11393-KBG-773

$20.77

GASKET, R. This part replaces 11393-KB4-306.

11393-KBG-773

$20.77

GASKET, R. This part replaces 11393-KB4-670.

11393-KBG-773

$20.77

GASKET, R. This part replaces 11393-KC2-760.

11393-KBG-773

$20.77

DIPSTICK, OIL (NOT AVAILABLE)

15650-KR3-000

Unavailable

LEVER, CLUTCH

22810-KB4-670

Unavailable

SPRING, CLUTCH LEVER

22816-KB4-670

Unavailable

CAM, CLUTCH LIFTER

22821-399-000

$11.52

RECEIVER This part replaces 22838-KB4-670.

22838-KC2-F00

Unavailable

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

PIN, SPRING (4X18)

94305-40182

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
