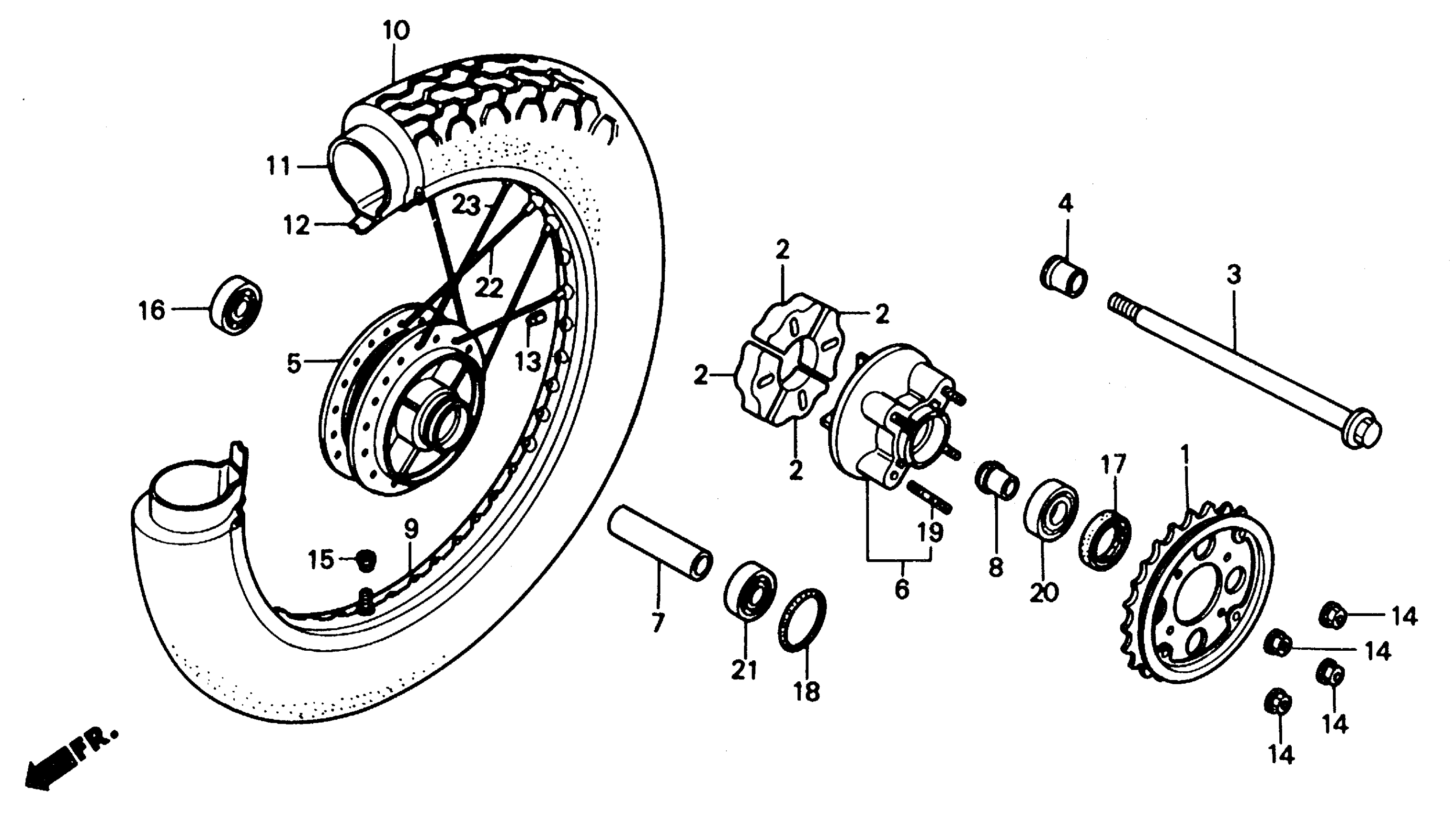

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (33T) This part replaces 41200-KR3-900.

41200-KEN-670

$85.93

1

SPROCKET, FINAL DRIVEN (33T) This part replaces 41200-KR3-670.

41200-KEN-670

$85.93

2

DAMPER, RR. WHEEL

41241-402-010

Unavailable

3

AXLE, RR. WHEEL This part replaces 42301-KR3-000.

42301-KR3-601

$29.94

3

AXLE, RR. WHEEL This part replaces 42301-KR3-600.

42301-KR3-601

$29.94

3

AXLE, RR. WHEEL

42301-KR3-601

$29.94

4

COLLAR, RR. WHEEL SIDE

42312-KR3-000

$13.94

5

HUB, RR. WHEEL (NOT AVAILABLE)

42601-KR3-000

Unavailable

6

FLANGE ASSY., DRIVEN

42610-KR3-000

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-KE1-000

$21.44

8

COLLAR B, RR. AXLE DISTANCE

42625-KR3-000

$19.59

9

RIM, RR. WHEEL This part replaces 42701-KR3-003.

42701-KR3-023

$79.38

9

RIM, RR. WHEEL This part replaces 42701-KR3-013.

42701-KR3-023

$79.38

9

RIM, RR. WHEEL

42701-KR3-023

$79.38

10

TIRE, RR. (130/90-15) (66P K627A) (DUNLOP) This part replaces 42711-KR3-003.

42711-KR3-605

Unavailable

10

TIRE, RR. (130/90-15) (66P K627A) (DUNLOP) This part replaces 42711-KR3-004.

42711-KR3-605

Unavailable

10

TIRE, RR. (130/90-15) (66P K627A) (DUNLOP) This part replaces 42711-KR3-009.

42711-KR3-605

Unavailable

10

TIRE, RR. (130/90-15) (66P K627A) (DUNLOP) This part replaces 42711-KR3-601.

42711-KR3-605

Unavailable

10

TIRE, RR. (130/90-15) (66P K627A) (DUNLOP) This part replaces 42711-KR3-602.

42711-KR3-605

Unavailable

10

TIRE, RR. (130/90-15) (66P K627A) (DUNLOP) This part replaces 42711-KR3-603.

42711-KR3-605

Unavailable

10

TIRE, RR. (130/90-15) (66P K627A) (DUNLOP)

42711-KR3-605

Unavailable

11

TUBE, TIRE (130/90-15) (DUNLOP) This part replaces 42712-KR3-003.

42712-KR3-004

$36.65

11

TUBE, TIRE (130/90-15) (DUNLOP)

42712-KR3-004

$36.65

11

TUBE, TIRE (130/90-15) (DUNLOP) This part replaces 42712-KR3-009.

42712-KR3-004

$36.65

12

FLAP, TIRE (2.75-15) (DUNLOP) This part replaces 42713-KR3-003.

42713-KR3-004

$7.41

12

FLAP, TIRE (2.75-15) (DUNLOP)

42713-KR3-004

$7.41

12

FLAP, TIRE (2.75-15) (DUNLOP) This part replaces 42713-KR3-009.

42713-KR3-004

$7.41

13

BALANCER (20G)

44606-283-000

$8.21

14

NUT, U (10MM)

90304-GE8-003

$3.52

15

NUT, TIRE VALVE

90306-371-003

$3.28

15

NUT, TIRE VALVE This part replaces 90306-371-004.

90306-371-003

$3.28

16

BEARING,BALL RADI This part replaces 91052-KR3-005.

91051-KEH-662

$35.41

17

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$10.08

17

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$10.08

17

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$10.08

18

O-RING (42MM)

91304-704-000

$3.06

19

BOLT, STUD (10X45)

92716-10045-0E

$2.54

20

BEARING, RADIAL BALL (6004U)

96140-60040-10

Unavailable

21

BEARING, RADIAL BALL (6202U)

96140-62020-10

$9.96

22

SPOKE SET B (9X122.5)

97426-52085-P0

$2.96

23

SPOKE SET B (9X122)

97873-52084-P0

$2.80
