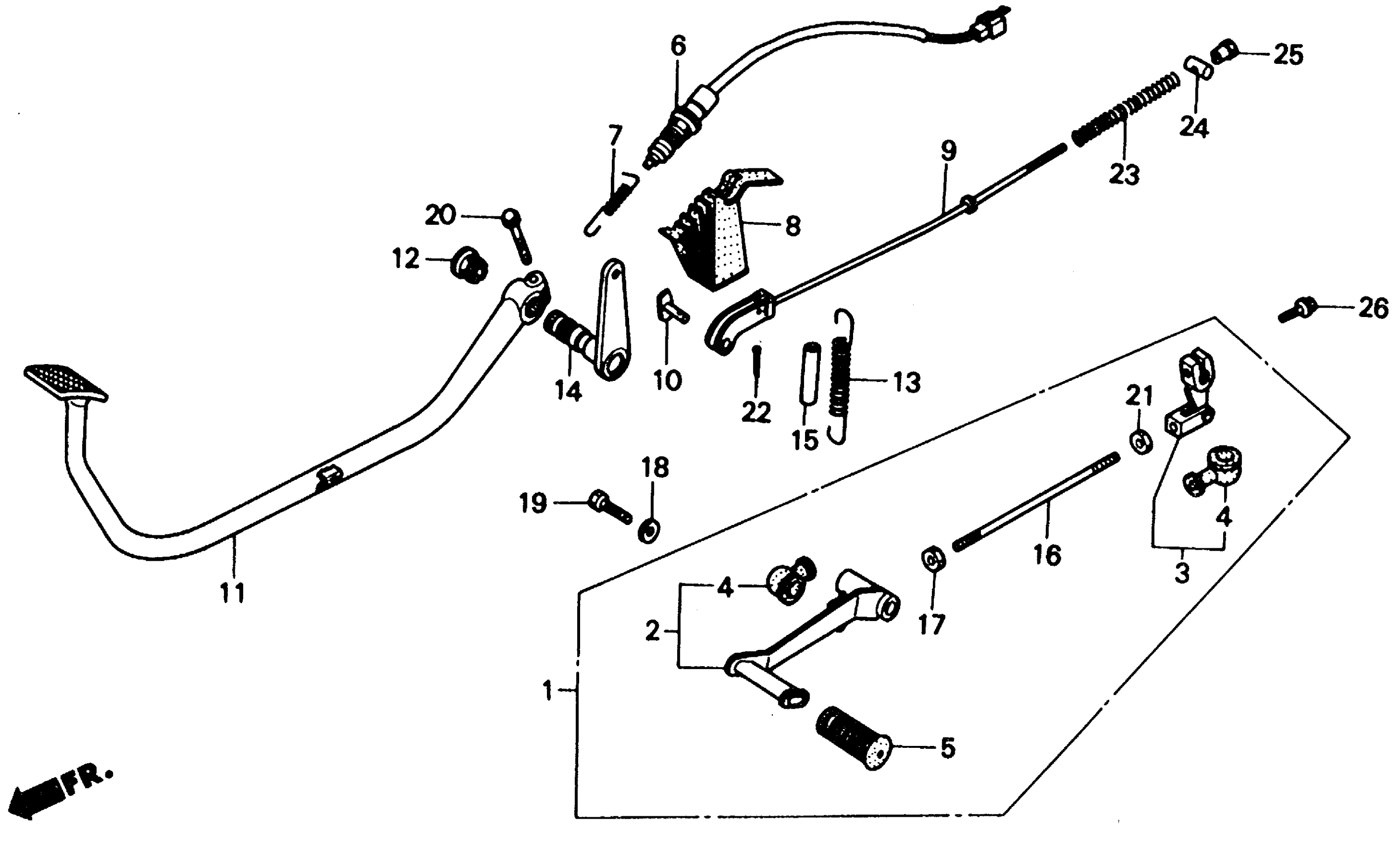

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 PEDAL Diagram

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24700-KR3-770

Unavailable

PEDAL, GEARSHIFT (B) (NOT AVAILABLE)

24705-KR3-770

Unavailable

ARM, GEARSHIFT (NOT AVAILABLE)

24710-KR3-000

Unavailable

COVER, DUST

24724-422-000

$6.68

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP This part replaces 35350-KR3-670.

35350-KR3-672

$15.03

SWITCH ASSY., RR. STOP This part replaces 35350-KR3-671.

35350-KR3-672

$15.03

SPRING, STOP SWITCH

35357-KR3-670

$5.12

COVER, RR. BRAKE ARM

43411-KR3-000

$17.36

ROD, RR. BRAKE

43451-KR3-000

Unavailable

PIN B, JOINT (NOT AVAILABLE)

43452-KB4-000

Unavailable

PEDAL, RR. BRAKE This part replaces 46500-KR3-000.

46500-KR3-600

Unavailable

PEDAL, RR. BRAKE

46500-KR3-600

Unavailable

CAP, RR. BRAKE SPINDLE

46511-KR3-000

$5.28

SPRING, RR. BRAKE RETURN

46514-KR3-000

Unavailable

SHAFT, RR. BRAKE PIVOT

46515-KR3-000

$62.30

TUBE, BRAKE PEDAL SPRING

46516-KR3-000

Unavailable

BOLT, TIE ROD

90065-KR3-000

$11.12

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

WASHER, SPECIAL (6.5MM) (NOT AVAILABLE)

90408-642-750

Unavailable

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020-0A.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

NUT, HEX. (6MM)

94002-06020-0S

$1.49

PIN, SPLIT (1.6X12)

94201-16120

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
