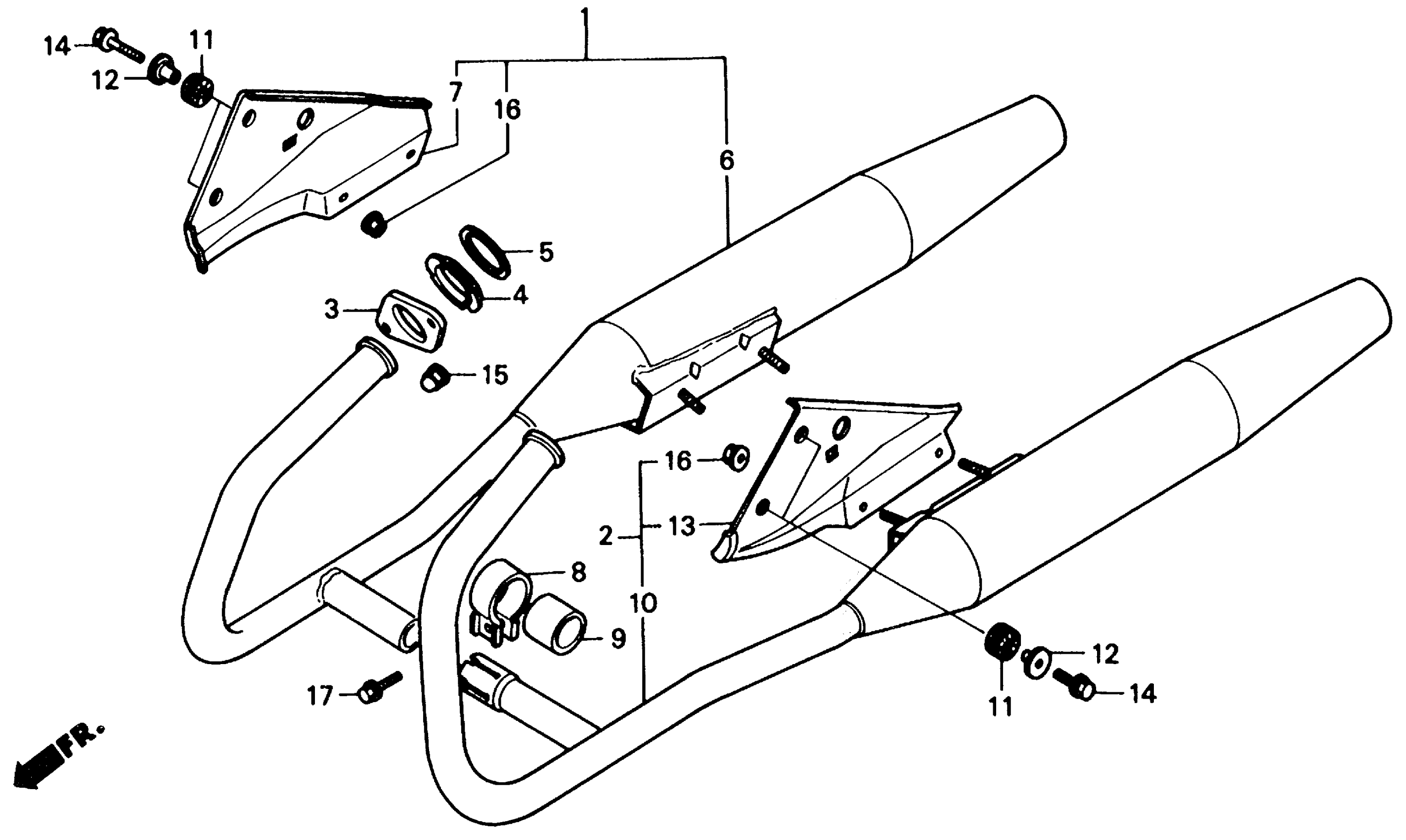

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 MUFFLER Diagram

JOINT, EX. PIPE (NOT AVAILABLE)

18231-KR3-600

Unavailable

COLLAR, EX. PIPE JOINT

18232-KR3-000

$14.77

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

MUFFLER, R. EX. (NOT AVAILABLE)

18300-KR3-770

Unavailable

STAY, R. MUFFLER *NH1* (BLACK) This part replaces 18325-KR3-000.

18325-KR3-950ZA

$58.89

STAY, R. MUFFLER *NH1* (BLACK)

18325-KR3-950ZA

$58.89

BAND, EX. PIPE

18373-461-000

$38.77

GASKET, MUFFLER

18391-HB7-000

$11.62

GASKET, MUFFLER This part replaces 18391-461-000.

18391-HB7-000

$11.62

MUFFLER, L. EX. (NOT AVAILABLE)

18400-KR3-770

Unavailable

RUBBER A, MUFFLER MOUNTING This part replaces 18422-KR3-000.

18422-KR3-870

$4.87

RUBBER A, MUFFLER MOUNTING

18422-KR3-870

$4.87

COLLAR, MUFFLER MOUNTING

18423-KR3-000

$6.01

STAY, L. MUFFLER *NH1* (BLACK) This part replaces 18425-KR3-000.

18425-KR3-950ZA

$55.51

STAY, L. MUFFLER *NH1* (BLACK)

18425-KR3-950ZA

$55.51

BOLT, SPECIAL FLANGE (8X23)

90123-KR3-000

$3.67

NUT, CAP (6MM)

90304-438-000

$7.14

NUT, FLANGE (8MM)

94050-08000

$1.49

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
