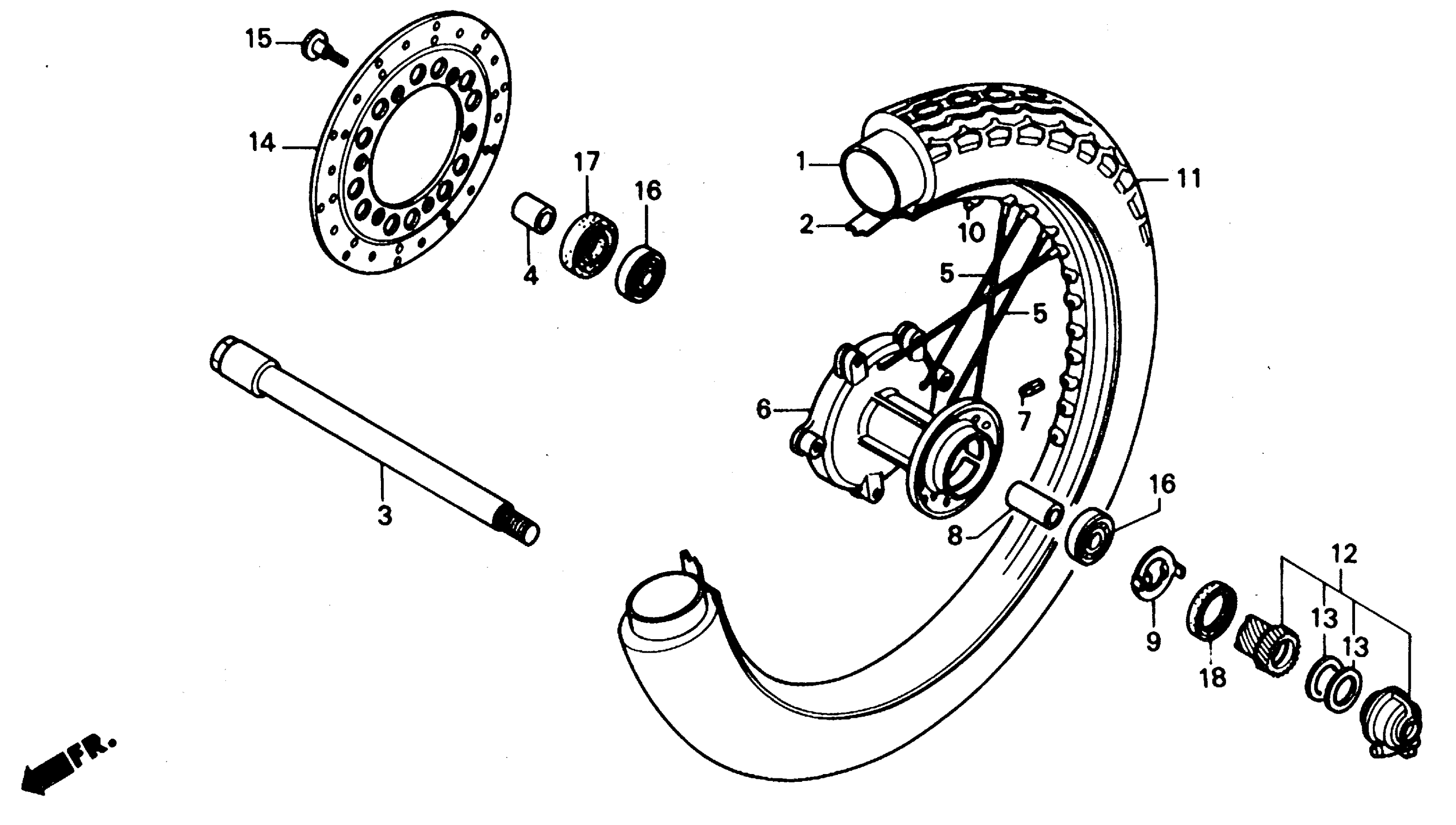

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 FRONT WHEEL Diagram

#

Description
Price

1

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

2

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

2

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-286-003.

42713-304-003

$6.69

2

FLAP, TIRE (BS)

42713-304-003

$6.69

2

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-389-009.

42713-304-003

$6.69

2

FLAP, TIRE (DUNLOP) This part replaces 44713-300-004.

42713-KZ3-611

$5.90

3

AXLE, FR. WHEEL

44301-KR3-901

Unavailable

3

AXLE, FR. WHEEL

44301-MC5-000

$49.39

4

COLLAR, FR. WHEEL SIDE This part replaces 44311-461-770.

44311-460-840

Unavailable

5

SPOKE SET A, FR.

446A0-KR3-003

Unavailable

6

HUB, FR. WHEEL

44601-KR3-000

Unavailable

7

BALANCER (20G)

44606-283-000

$8.89

8

COLLAR, FR. AXLE DISTANCE

44620-KR3-000

$10.62

9

RETAINER, GEAR BOX

44680-410-000

$5.80

10

RIM, FR. WHEEL This part replaces 44701-KR3-003.

44701-KR3-023

$86.69

10

RIM, FR. WHEEL This part replaces 44701-KR3-013.

44701-KR3-023

$86.69

10

RIM, FR. WHEEL

44701-KR3-023

$86.69

11

TIRE, FR. (3.00-18) This part replaces 44711-KC1-004.

44711-KR3-U04

$174.72

11

TIRE, FR. (3.00-18) This part replaces 44711-KR3-003.

44711-KR3-U04

$174.72

11

TIRE, FR. (3.00-18) This part replaces 44711-KR3-004.

44711-KR3-U04

$174.72

11

TIRE, FR. (3.00-18) (4PR/47P Y-992A) (YOKOHAMA) (NOT AVAILABLE) This part replaces 44711-KR3-009.

44711-KR3-603

Unavailable

11

TIRE, FR. (3.00-18) This part replaces 44711-KR3-U02.

44711-KR3-U04

$174.72

11

TIRE, FR. (3.00-18) This part replaces 44711-KR3-U03.

44711-KR3-U04

$174.72

11

TIRE, FR. (3.00-18) This part replaces 44711-KR3-601.

44711-KR3-U04

$174.72

11

TIRE, FR. (3.00-18) This part replaces 44711-KR3-602.

44711-KR3-U04

$174.72

11

TIRE, FR. (3.00-18) This part replaces 44711-KR3-608.

44711-KR3-U04

$174.72

12

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE) This part replaces 44800-MC7-003.

44800-MC7-013

Unavailable

13

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

14

DISK, FR. BRAKE

45251-KR3-000

$410.38

15

BOLT, FR. DISK (8X24) (SAGA)

90105-KR3-000

$6.07

16

BEARING,BALL RADI This part replaces 91052-KR3-005.

91051-KEH-662

$38.56

17

DUST SEAL (22X42X7) (ARAI)

91252-MC7-003

$7.46

18

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80
