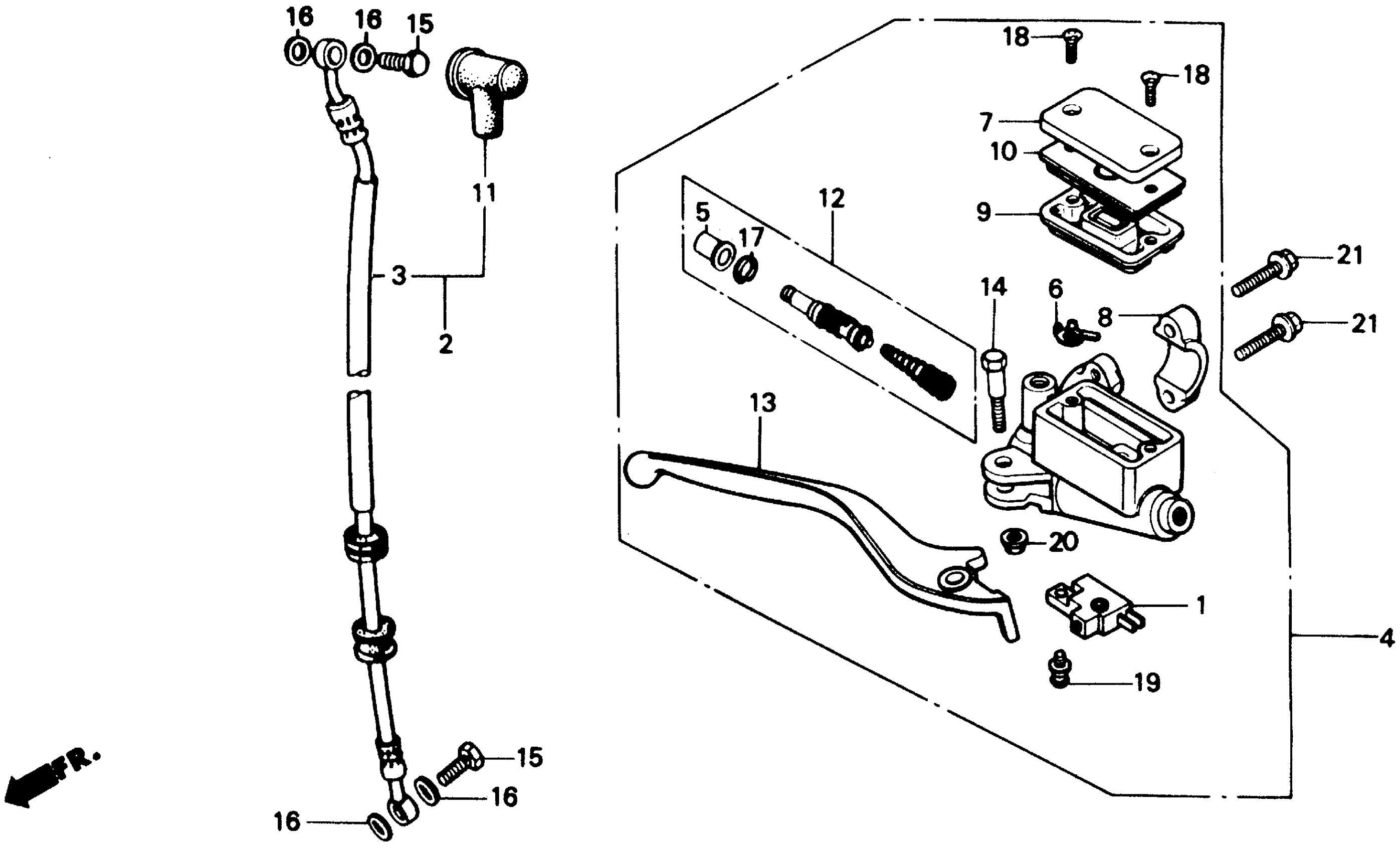

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$21.98

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-KR3-003.

45126-KR3-601

Unavailable

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE)

45500-KR3-671

Unavailable

BOOT

45504-410-003

$10.93

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER

45513-HA2-006

$24.74

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

BOOT, MASTER CYLINDER

45522-422-000

$7.79

MASTER CYLINDER SET

45530-471-831

Unavailable

LEVER, R. HANDLEBAR

53175-KK4-010

Unavailable

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$9.89

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$9.89

BOLT, OIL (10X22)

90145-KM3-751

$9.89

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

SCREW-WASHER (4X12)

93893-04012-08

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.22

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

Unavailable

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
