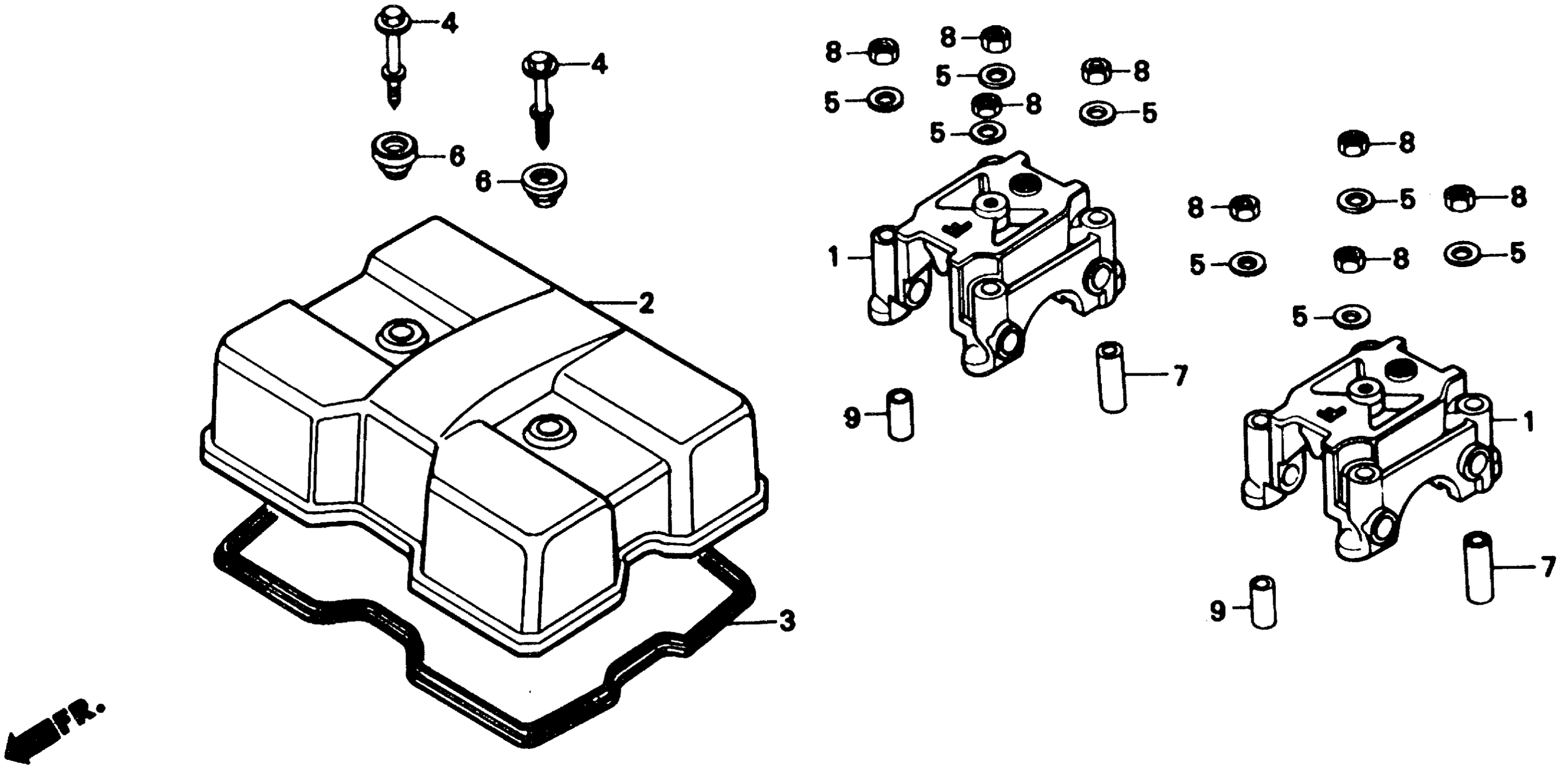

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 CYLINDER HEAD COVER Diagram

HOLDER, CAMSHAFT This part replaces 12231-399-000.

12231-399-010

$113.41

HOLDER, CAMSHAFT

12231-399-010

$113.41

COVER, CYLINDER HEAD This part replaces 12311-KR3-000.

12311-KR3-600

Unavailable

COVER, CYLINDER HEAD

12311-KR3-600

Unavailable

GASKET, CYLINDER HEAD COVER

12391-KR3-000

Unavailable

BOLT, FLANGE (6X33)

90036-KB4-670

$9.76

WASHER (8MM)

90483-028-000

$1.51

RUBBER, MOUNTING

90541-371-000

$5.01

PIN, DOWEL (10X28)

90701-399-000

$2.94

NUT, HEX. (8MM)

94001-08000-0S

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28
