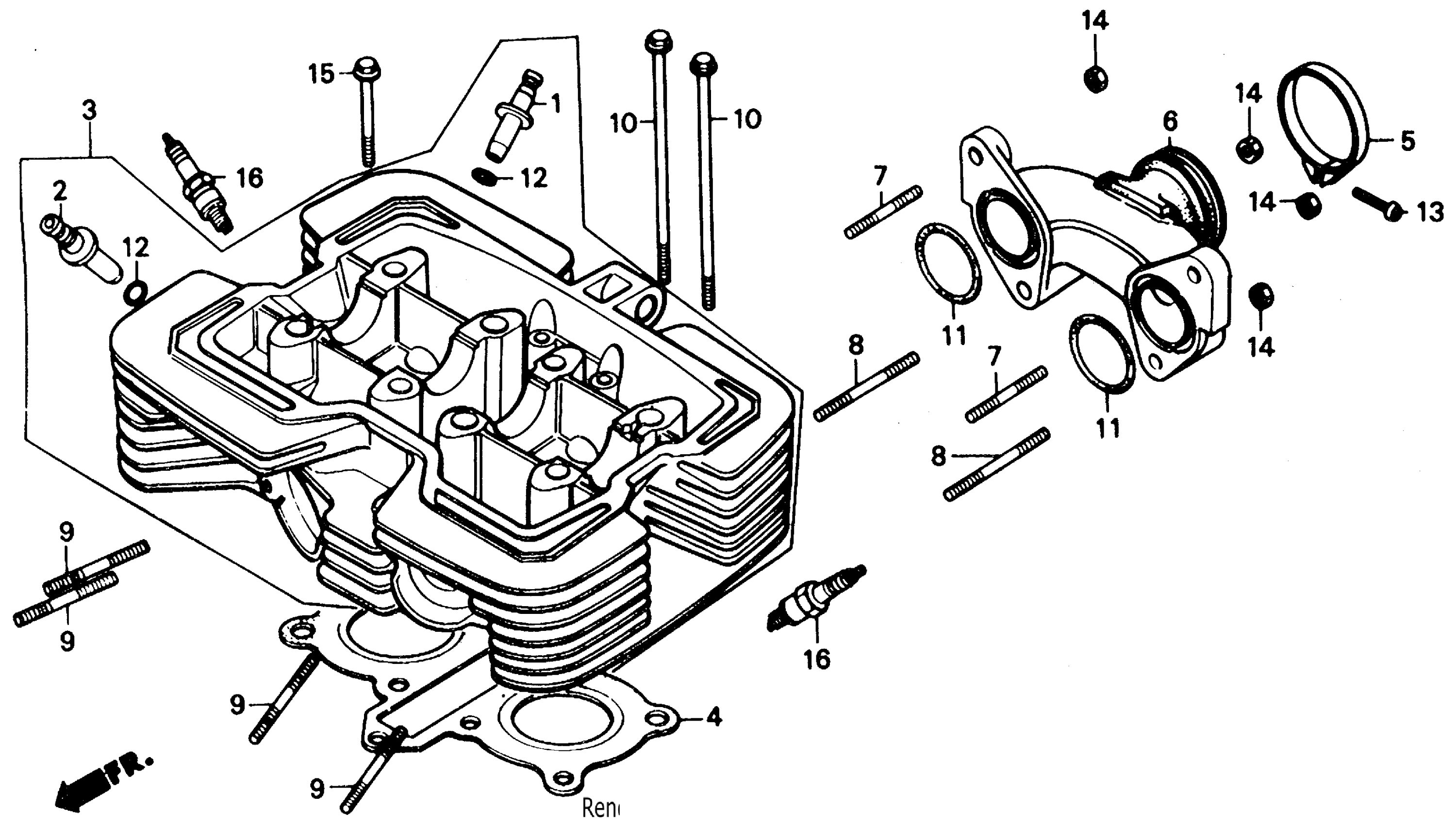

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$11.86

1

GUIDE, VALVE

12021-149-405

$11.86

2

GUIDE, VALVE

12023-465-405

$18.90

2

GUIDE, VALVE This part replaces 12023-465-830.

12023-465-405

$18.90

3

CYLINDER HEAD (NOT AVAILABLE)

12200-KR3-000

Unavailable

4

GASKET, CYLINDER HEAD

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KB4-670.

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KB4-671.

12251-KB4-315

Unavailable

4

GASKET, CYLINDER HEAD (FOR 0.75-1.00 O.S. PISTON) (NOT AVAILABLE) | (Optional).

12252-KR3-305

Unavailable

5

BAND, INSULATOR (NOT AVAILABLE)

16223-KR3-000

Unavailable

6

MANIFOLD, IN. (NOT AVAILABLE)

17111-KR3-000

Unavailable

7

BOLT, STUD (6X32)

90033-399-000

$2.07

8

BOLT, STUD (6X60)

90034-KB4-670

Unavailable

9

BOLT, STUD (6X33)

90034-KR3-000

$2.92

10

BOLT, FLANGE (6X145)

90048-KB4-670

$8.92

11

O-RING (25.5X2.5) (ARAI)

91301-KR3-003

$4.21

12

O-RING (10X1.6)

91301-200-000

$3.01

13

SCREW, PAN (5X20)

93500-05020-0G

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

15

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

16

SPARK PLUG (CR6HS) (NGK)

98056-56716

$2.62

16

SPARK PLUG (U20FSR-U) (DENSO)

98056-56726

$2.54

16

SPARK PLUG (CR7HS) (NGK) | (Optional).

98056-57716

$2.62

16

SPARK PLUG (U22FSR-U) (DENSO) | (Optional).

98056-57726

$2.54
