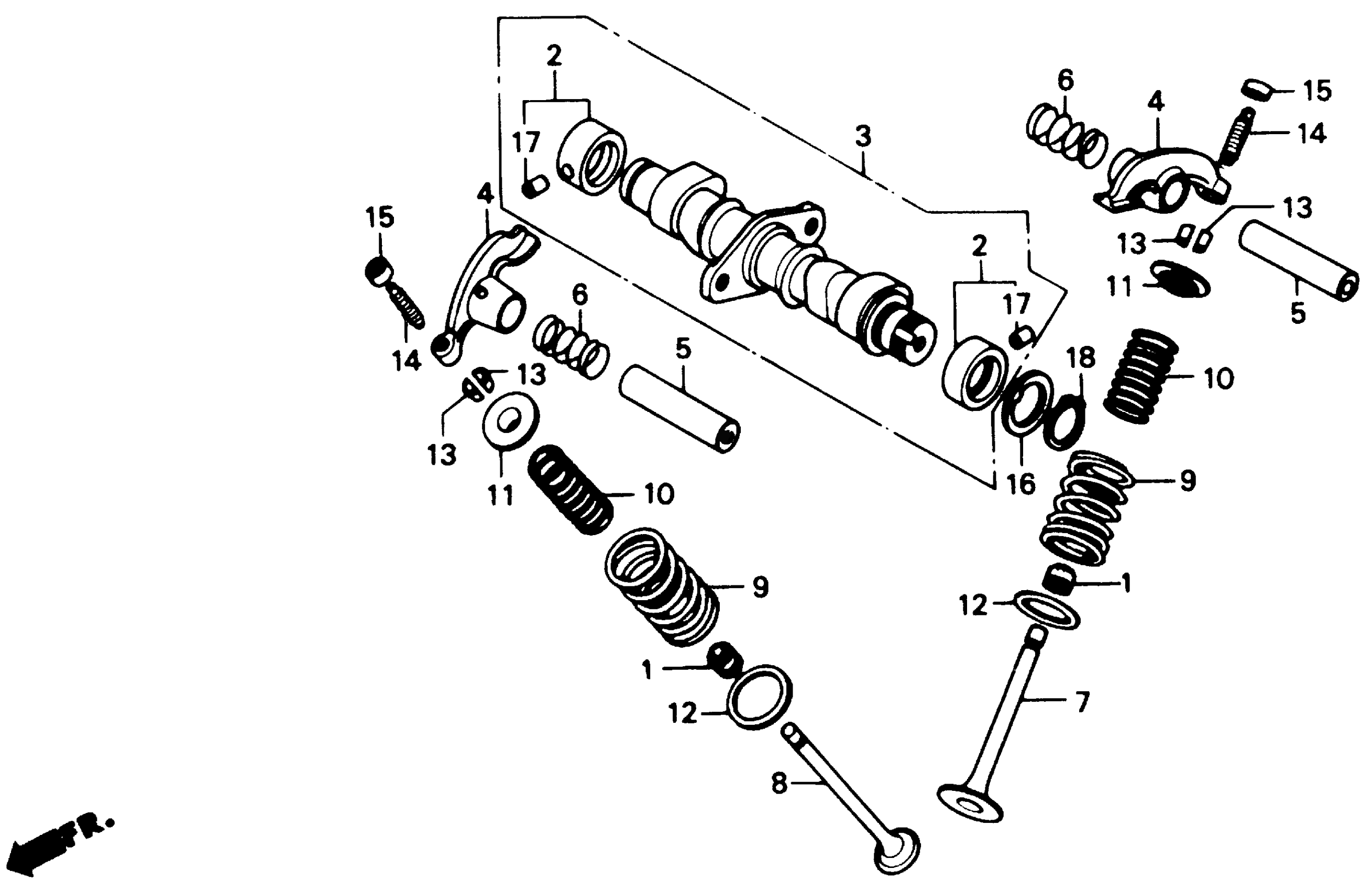

Honda CMX250CA (86) REBEL 250, JPN, VIN# JH2MC130-GK026221 TO JH2MC130-GK119819 CAMSHAFT Diagram

SEAL, VALVE STEM (ARAI)

12208-413-003

$11.37

SEAL, VALVE STEM

12209-657-000

Unavailable

BUSH, CAMSHAFT

12234-399-010

$37.34

CAMSHAFT ASSY. (NOT AVAILABLE)

14100-KR3-000

Unavailable

ARM, VALVE ROCKER This part replaces 14431-116-000.

14431-116-010

$41.58

ARM, VALVE ROCKER

14431-116-010

$41.58

SHAFT, VALVE ROCKER ARM

14451-399-000

$15.36

SPRING, ROCKER ARM SIDE

14461-KC2-680

$3.85

SPRING, ROCKER ARM SIDE This part replaces 14461-399-000.

14461-KC2-680

$3.85

VALVE, IN.

14711-399-000

Unavailable

VALVE, EX.

14721-176-000

$77.90

SPRING, VALVE (OUTER) (NIPPON HATSUJO)

14751-KR3-005

$12.69

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14761-399-005

$8.93

RETAINER, VALVE SPRING

14771-107-020

$7.99

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

COTTER, VALVE (SANKO)

14781-107-003

$2.55

SCREW, TAPPET ADJUSTING

90012-333-000

$2.75

NUT, TAPPET ADJUSTING

90206-001-000

$1.66

WASHER, THRUST (20MM)

90402-399-000

$4.00

PIN, DOWEL (5X5.5)

90702-399-010

$3.66

CIRCLIP, OUTER (20MM)

94510-20000

$1.49
