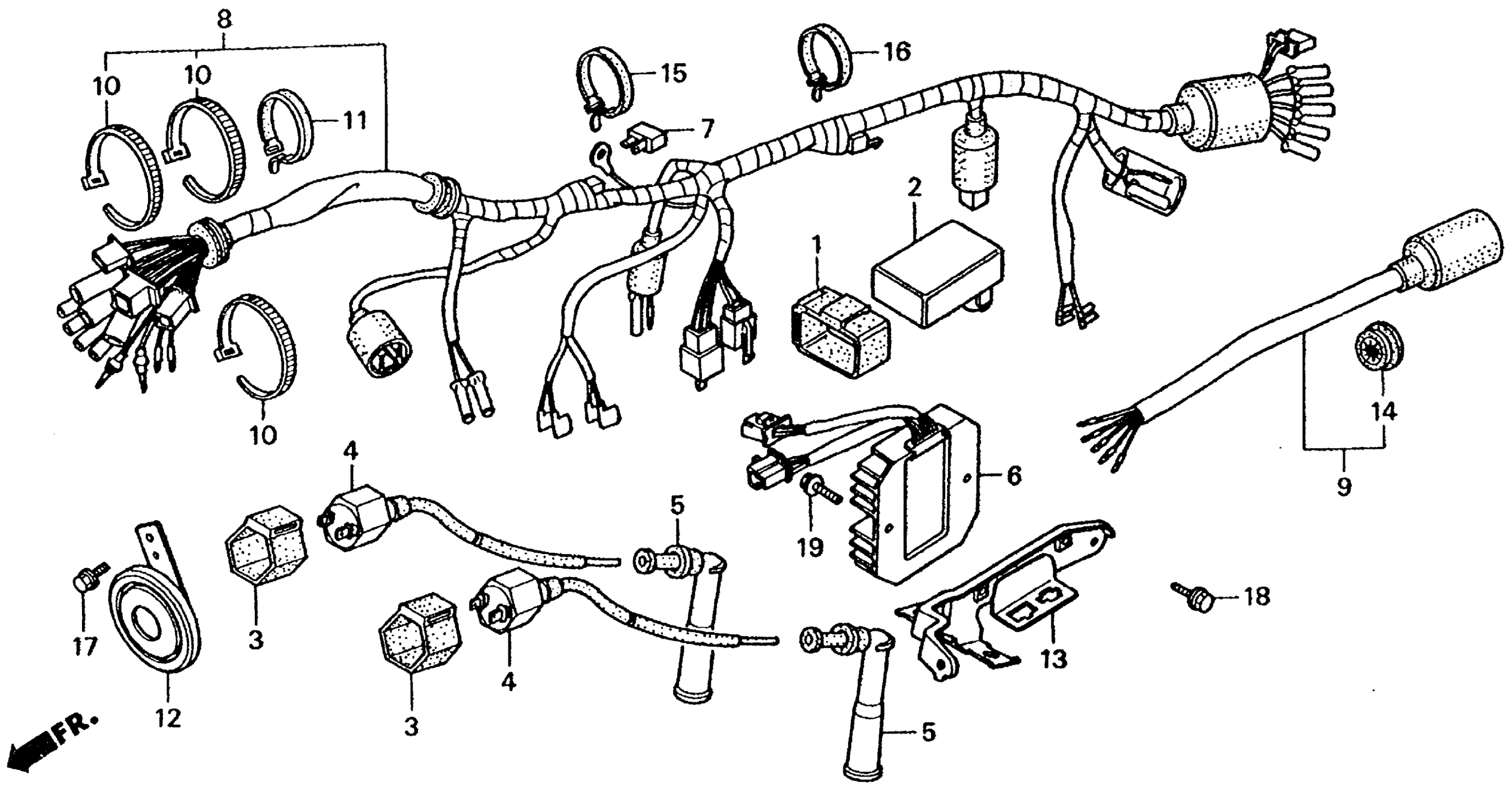

Honda CMX250CA (85) REBEL 250, JPN, VIN# JH2MC130-FK000035 TO JH2MC130-FK026220 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KK0-770.

30401-KT1-670

$5.04

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE) This part replaces 30410-KR3-671.

30410-KR3-672

Unavailable

3

SUSPENSION, IGNITION COIL

30506-KR3-670

$15.07

4

COIL, IGNITION This part replaces 30510-KR3-670.

30510-MK4-405

$73.78

4

COIL, IGNITION

30510-MK4-405

$73.78

5

CAP ASSY. This part replaces 30700-KR3-670.

30700-KR3-671

$17.79

6

RECTIFIER ASSY., REGULATOR This part replaces 31600-KR3-671.

31600-KR3-690

Unavailable

6

RECTIFIER ASSY., REGULATOR

31600-KR3-690

Unavailable

6

RECTIFIER ASSY., REGULATOR This part replaces 31600-KR3-670.

31600-KR3-690

Unavailable

7

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$27.27

7

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$27.27

8

WIRE HARNESS (NOT AVAILABLE) This part replaces 32100-KR3-670.

32100-KR3-671

Unavailable

9

SUB-WIRE, TAILLIGHT

32101-KR3-600

$38.00

9

SUB-WIRE, TAILLIGHT This part replaces 32101-KR3-670.

32101-KR3-600

$38.00

10

BAND, WIRE

32161-KM3-003

$2.60

12

HORN ASSY. (HIGH) This part replaces 38110-KR3-660.

38110-KR3-662

Unavailable

12

HORN ASSY. (HIGH) This part replaces 38110-KR3-661.

38110-KR3-662

Unavailable

12

HORN ASSY. (HIGH)

38110-KR3-662

Unavailable

12

HORN ASSY. (HIGH) This part replaces 38110-KR3-670.

38110-KR3-662

Unavailable

13

PLATE, ELECTRIC

50352-KR3-000

Unavailable

14

GROMMET, NUMBER BRACKET

84704-KR3-000

$6.12

15

BAND B1, WIRE

32161-404-000

$2.16

15

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.16

16

BAND A2, CABLE

95014-61200

Unavailable

17

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.50

17

BOLT, FLANGE (6X12)

95701-06012-07

$1.50
