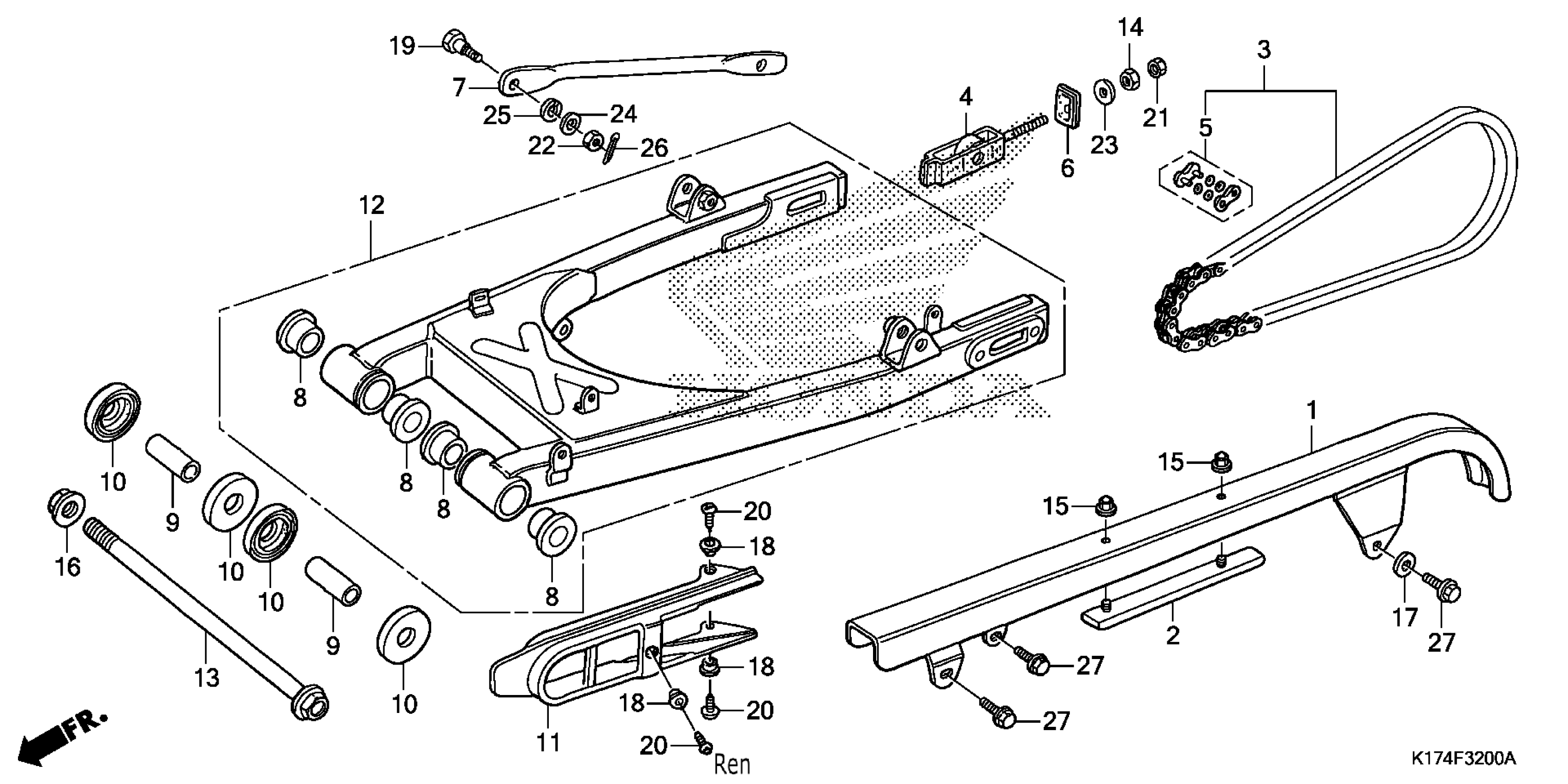

Honda CMX250CA (14) REBEL, JPN, VIN# JH2MC130-EK800001 TO JH2MC130-EK899999 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-KR3-600

$119.01

2

SLIDER, CHAIN CASE

40515-KR3-700

$21.55

3

CHAIN, DRIVE(RK EXCEL) (RK520MOZ9-120LJ.FZ) (STANDARD LINK 108L)

40540-KCN-306

$165.01

3

CHAIN, DRIVE (DID520V-120ZB) (DAIDO) (STANDARD LINK 108L)

40540-KPM-305

$173.13

4

ADJUSTER, CHAIN

40543-KR3-000

$29.09

5

MASTER LINK (RK EXCEL)

40545-KCN-306

$9.26

5

MASTER LINK (DAIDO)

40545-KPM-305

$8.49

6

CAP, SWINGARM END

40546-KK6-000

$16.53

7

ARM, RR. BRAKE STOPPER *NH1* (BLACK)

43431-KB2-000ZC

$20.22

8

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$17.64

8

BUSH, SWINGARM

52109-KC1-003

$17.64

9

COLLAR, R. SWINGARM

52141-356-010

$79.12

10

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$15.54

11

SLIDER, DRIVE CHAIN

52170-KR3-601

$35.91

12

SWINGARM SET *NH1* (BLACK)

52200-KR3-316ZA

$272.41

13

BOLT, SWINGARM PIVOT

90121-KR3-600

$34.06

14

NUT, SPECIAL (6MM)

90302-KBP-900

$1.86

15

NUT, FLANGE CAP (5MM)

90303-GC2-630

$3.21

16

NUT, U (14MM)

90305-GE8-003

$3.59

17

WASHER (6.5X18)

90545-323-700

$1.81

18

WASHER, CHAIN SLIDER

90556-KR3-000

$2.80

19

BOLT A, STOPPER ARM

92812-10000

$2.80

20

SCREW, TAPPING (5X8)

93901-25080

$0.83

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

21

NUT, HEX. (6MM)

94001-06200-0S

$1.19

22

NUT, HEX. (8MM)

94001-08000-0S

$1.19

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM)

94101-06800

Unavailable

24

WASHER, PLAIN (8MM)

94101-08000

$0.75

25

WASHER, SPRING (10MM)

94111-10000

$1.22

26

PIN, SPLIT (2.0X15)

94201-20150

$0.94

27

BOLT, FLANGE (6X8)

96001-06008-02

$1.41
