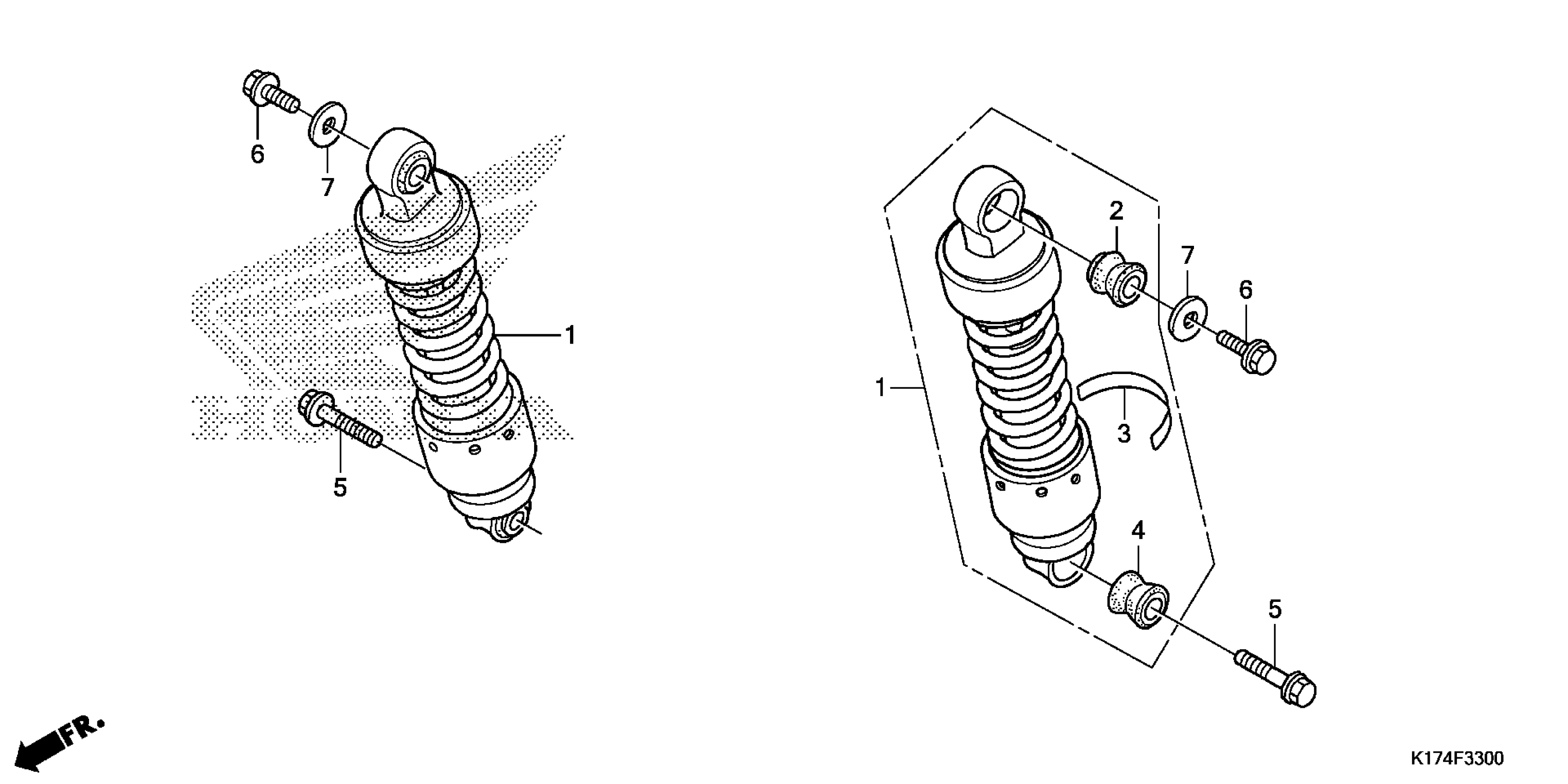

Honda CMX250CA (14) REBEL, JPN, VIN# JH2MC130-EK800001 TO JH2MC130-EK899999 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

CUSHION ASSY., RR. (COO) (KAYABA)

52400-K17-305

$312.74

2

BUSH, RR. SHOCK ABSORBER (UPPER)

52485-KR3-871

$6.99

3

LABEL, RR. DAMPER

52496-MJ1-004

$6.74

4

BUSH, DAMPER

52498-KR3-631

$13.90

5

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

Unavailable

6

BOLT, SPECIAL FLANGE (8X12)

90125-KR3-000

$3.62

7

WASHER (8.5X26)

90504-ME4-000

$3.03
