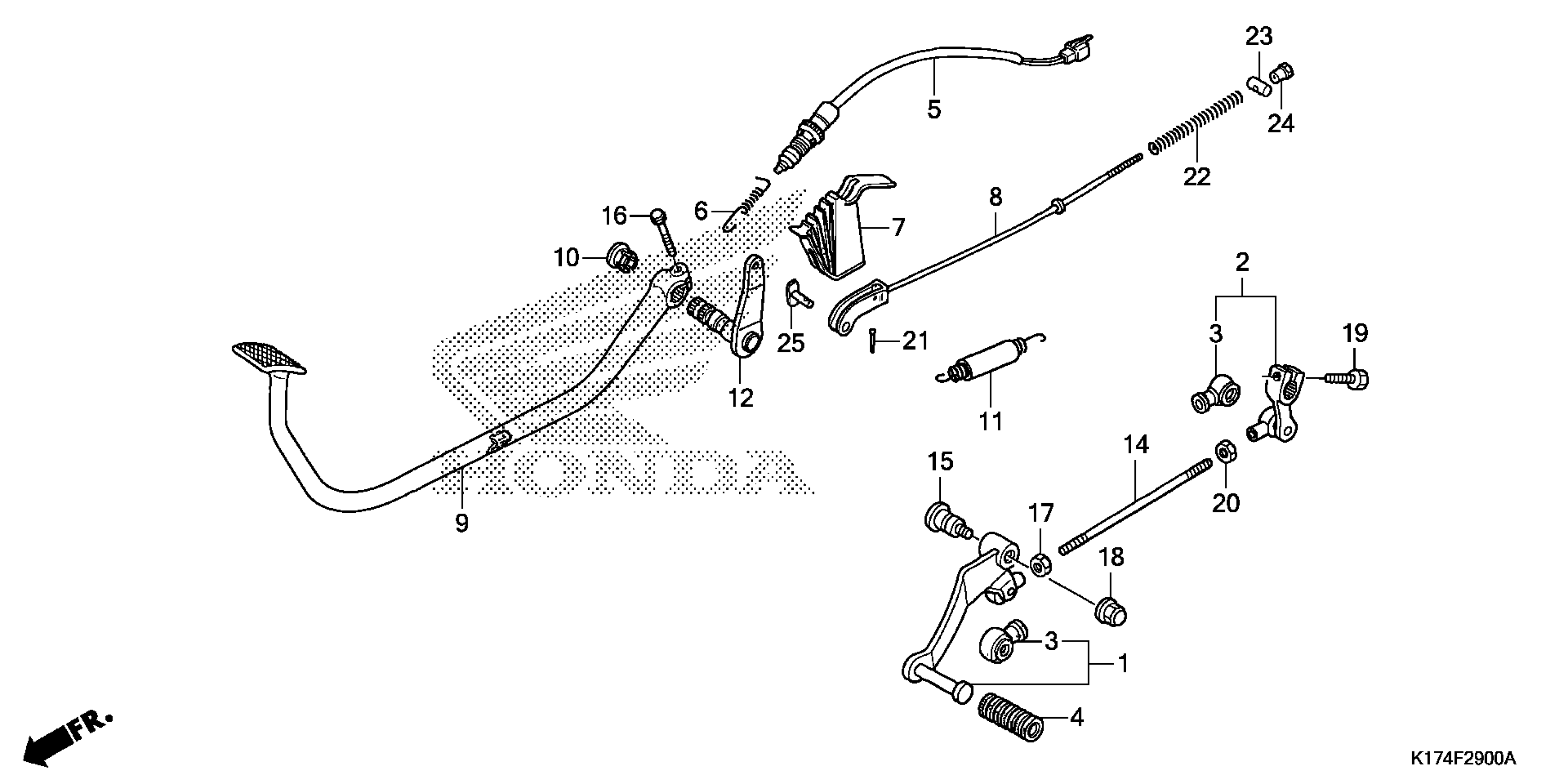

Honda CMX250CA (14) REBEL, JPN, VIN# JH2MC130-EK800001 TO JH2MC130-EK899999 PEDAL Diagram

PEDAL, GEARSHIFT This part replaces 24705-KEB-305.

24705-KEB-900

$83.89

ARM, GEARSHIFT

24710-KEB-901

$50.18

COVER, DUST

24724-422-000

$6.68

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP

35350-KR3-672

$15.03

SPRING, STOP SWITCH

35357-KR3-670

$5.12

COVER, RR. BRAKE ARM

43411-KR3-000

$17.36

ROD, RR. BRAKE

43451-KEN-670

$20.23

PEDAL, RR. BRAKE (COO)

46500-KEN-305

$96.23

CAP, RR. BRAKE SPINDLE

46511-KR3-000

$5.28

SPRING ASSY., RR. BRAKE RETURN

46513-KR3-600

$8.41

SHAFT, RR. BRAKE PIVOT

46515-KR3-000

$62.30

BOLT, TIE ROD

90065-KR3-000

$11.12

BOLT, CHANGE PIVOT

90115-KAF-000

$19.75

BOLT, SPECIAL FLANGE (8X25)

90123-MM2-000

$4.04

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

NUT, CAP (8MM)

90208-438-000

$2.98

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

NUT, HEX. (6MM)

94002-06020-0S

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN C, JOINT

95015-53000

$3.06
