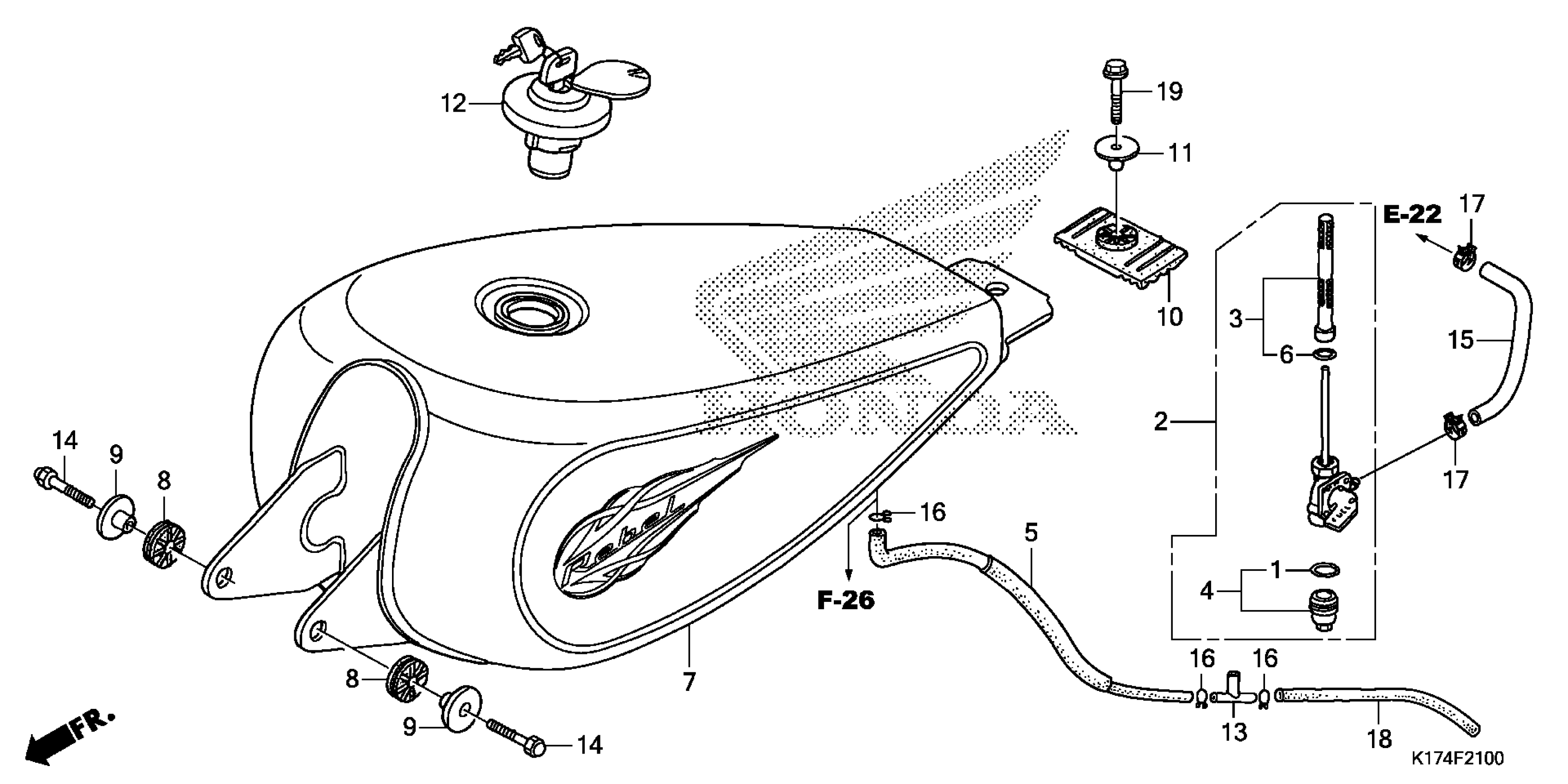

Honda CMX250CA (14) REBEL, JPN, VIN# JH2MC130-EK800001 TO JH2MC130-EK899999 FUEL TANK Diagram

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

PETCOCK ASSY.

16950-KEN-B11

$113.02

SCREEN SET, FUEL STRAINER

16952-KC2-961

$78.97

CUP SET, FUEL STRAINER

16953-GT4-305

$24.18

TUBE, TANK BREATHER

16957-KEB-900

$10.39

O-RING

16075-GHB-720

$2.93

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

TANK SET, FUEL (TYPE1) (WL) (NA USE ALT:17520-KEN-B30ZB) | Graphite black NHB01;

17520-KEN-B30ZC

Unavailable

TANK SET, FUEL (TYPE2) (WL) | Candy rubidium red R300C;

17520-K17-670ZA

$767.30

CUSHION, FR. FUEL TANK

17611-KR3-000

$4.80

COLLAR, FR. FUEL TANK MOUNTING

17612-MB1-000

$19.34

CUSHION, RR. FUEL TANK

17613-KR3-000

$14.23

COLLAR, FUEL TANK MOUNTING

17614-KR3-000

$4.48

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

JOINT, AIR FILTER

36191-KV3-700

$14.34

BOLT, CAP (6X20)

92601-06020-0B

$2.89

TUBE, FUEL

17501-KEN-B11

$13.56

CLIP, TUBE (B8)

95002-02080

$1.80

CLAMP, TUBE (D10)

95002-41000-08

$2.41

BULK HOSE, VACUUM (4.5X1000) (4.5X270)

95005-45001-20M

$34.14

BOLT, FLANGE (8X28)

96300-08028-07

$2.13
