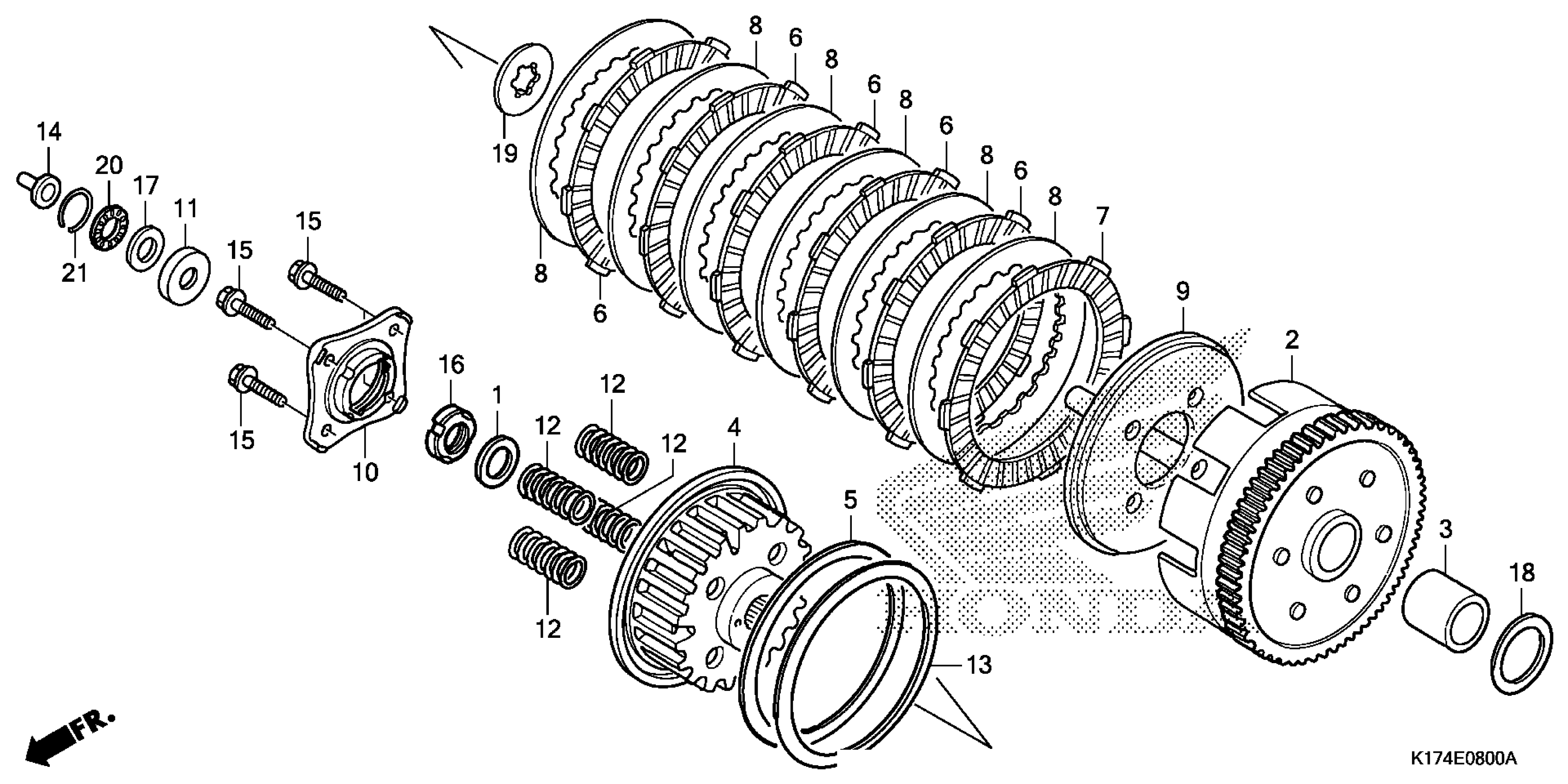

Honda CMX250CA (14) REBEL, JPN, VIN# JH2MC130-EK800001 TO JH2MC130-EK899999 CLUTCH Diagram

WASHER, LOCK (16MM)

15451-KR3-601

$4.76

CLUTCH OUTER

22100-KB4-670

$248.85

GUIDE, CLUTCH (OUTER)

22116-KB4-671

$23.07

CENTER, CLUTCH

22121-KR3-601

$86.03

SEAT, JUDDER SPRING

22125-KB4-670

$9.54

DISK, CLUTCH FRICTION This part replaces 22201-KBG-900.

22201-KBG-A00

$16.25

DISK, CLUTCH FRICTION

22201-KBW-900

$14.29

PLATE, CLUTCH

22321-KE8-000

$11.67

PLATE, CLUTCH PRESSURE

22350-KR3-600

$43.81

PLATE, CLUTCH LIFTER

22361-437-000

$13.61

COLLAR, CLUTCH LIFTER

22362-KR3-600

$22.10

SPRING, CLUTCH This part replaces 22401-KB4-670.

22401-KT0-000

$4.86

SPRING, CLUTCH

22401-KT0-000

$4.86

SPRING, JUDDER

22402-KB4-670

$28.43

PIN, CLUTCH LIFTER

22820-KK0-000

$5.49

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

Unavailable

NUT, LOCK (16MM)

90231-KB5-720

$4.47

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.46

WASHER, THRUST (20MM)

90459-KB4-670

$3.99

WASHER B, SPLINE (20MM)

90461-107-000

$4.44

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.56

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.83
