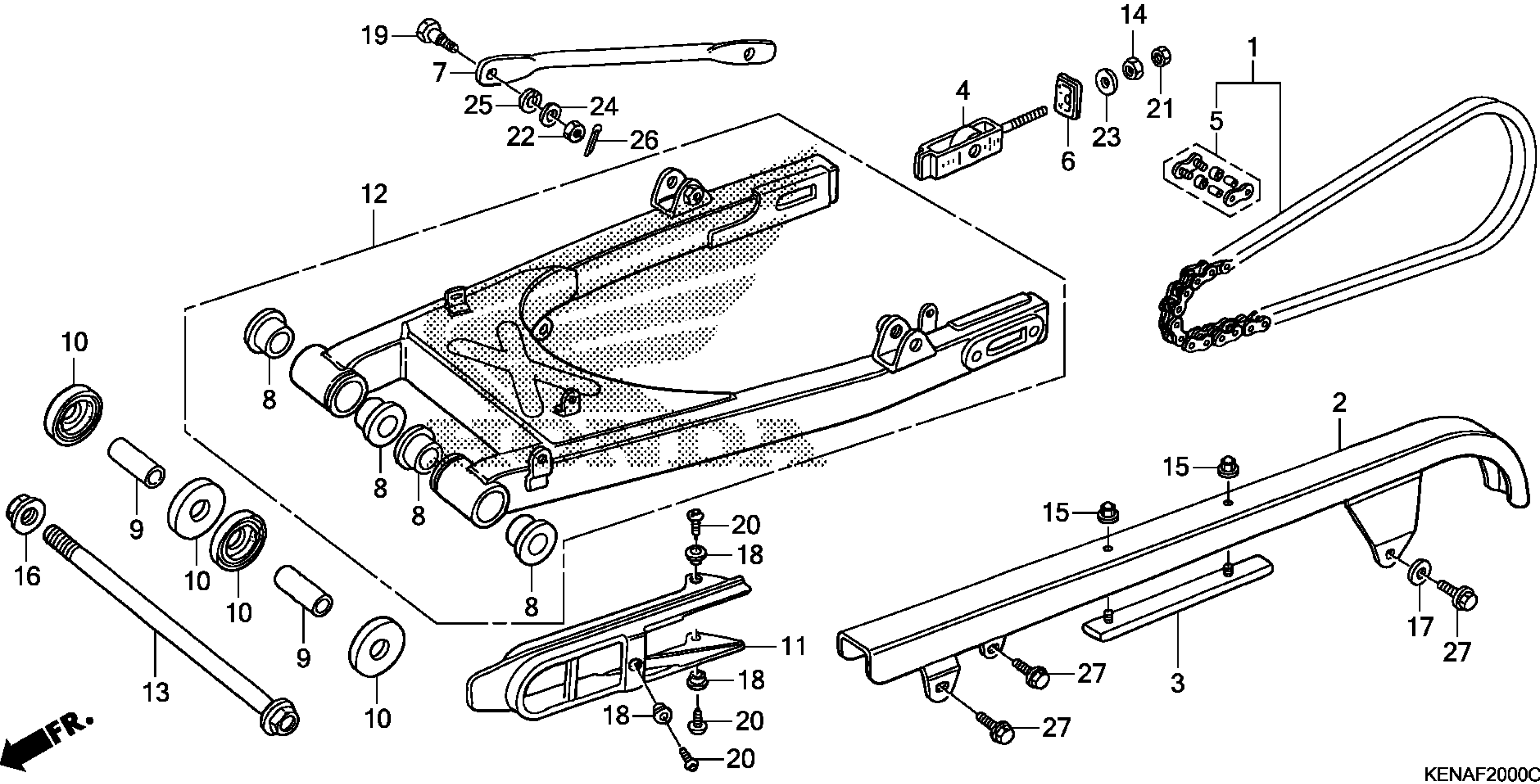

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 SWINGARM Diagram

CHAIN, DRIVE(RK EXCEL) (RK520MOZ9-120LJ.FZ) (STANDARD LINK 108L)

40540-KCN-306

$181.20

CHAIN, DRIVE (DID520V-120ZB) (DAIDO) (STANDARD LINK 108L)

40540-KPM-305

$190.13

CASE, DRIVE CHAIN

40510-KR3-600

$130.69

SLIDER, CHAIN CASE

40515-KR3-700

$23.66

ADJUSTER, CHAIN

40543-KR3-000

$32.39

MASTER LINK (RK EXCEL)

40545-KCN-306

$10.16

MASTER LINK (DAIDO)

40545-KPM-305

$9.33

CAP, SWINGARM END

40546-KK6-000

$18.40

ARM, RR. BRAKE STOPPER *NH1* (BLACK)

43431-KB2-000ZC

$22.20

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$19.38

BUSH, SWINGARM

52109-KC1-003

$19.38

COLLAR, R. SWINGARM

52141-356-010

$86.90

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

SLIDER, DRIVE CHAIN

52170-KR3-601

$39.44

SWINGARM SET *NH1* (BLACK)

52200-KR3-316ZA

$299.13

BOLT, SWINGARM PIVOT

90121-KR3-600

$37.39

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

NUT, FLANGE CAP (5MM)

90303-GC2-630

$3.45

NUT, U (14MM)

90305-GE8-003

$3.86

WASHER (6.5X18)

90545-323-700

$1.89

WASHER, CHAIN SLIDER

90556-KR3-000

$3.08

BOLT A, STOPPER ARM

92812-10000

$2.92

SCREW, TAPPING (5X8)

93901-25080

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (10MM)

94111-10000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (6X8)

96001-06008-02

$1.54
