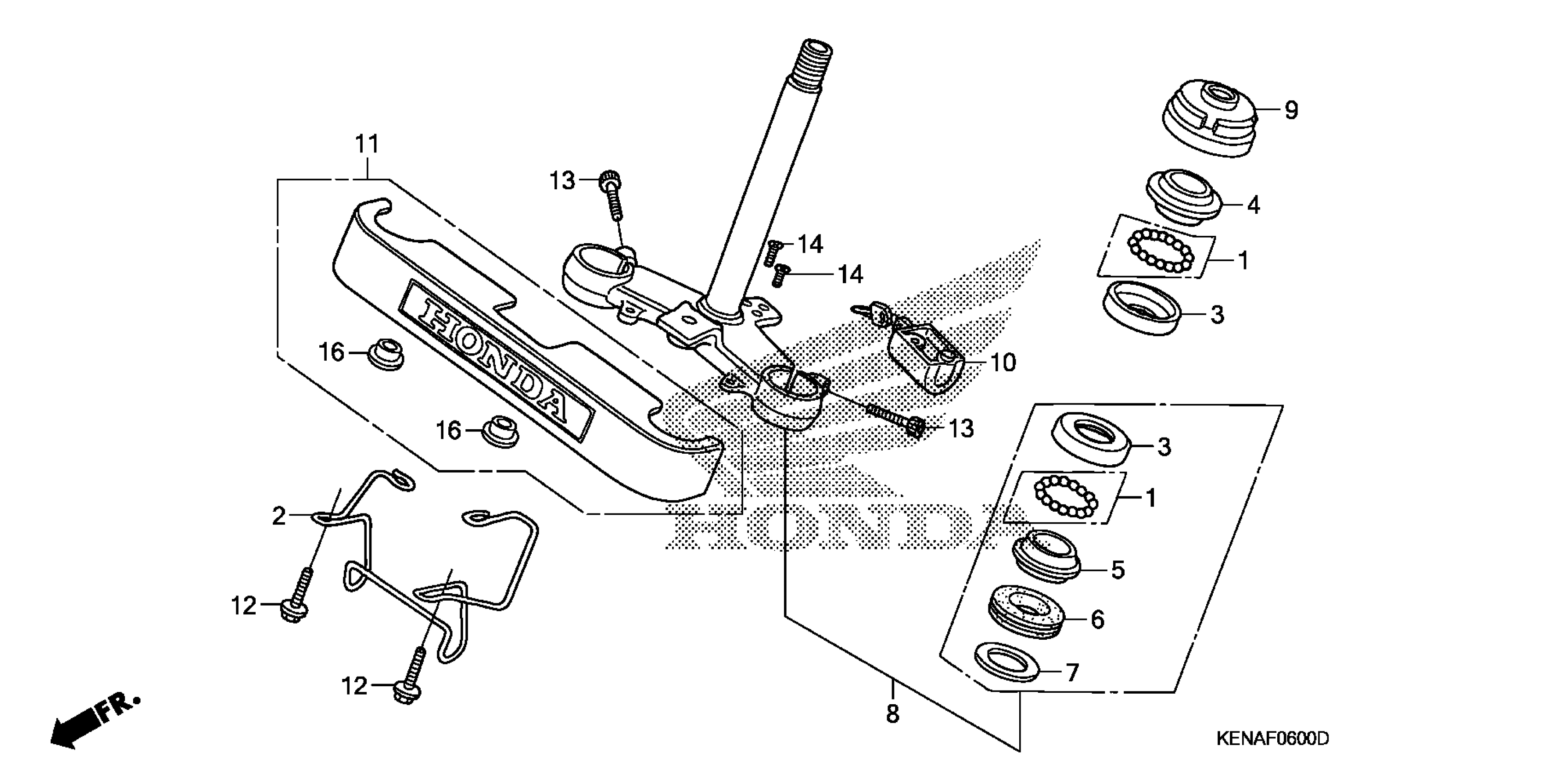

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 STEERING STEM Diagram

#

Description

Price

1

BALL ASSY., STEEL (#6X21)

06531-KAN-630

$2.92

2

CLAMP, FR. BRAKE HOSE

45469-KEB-900

$27.97

3

RACE, STEERING BALL

50301-041-010

$12.39

4

RACE, STEERING TOP CONE

53211-028-010

$11.09

5

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

6

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

7

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

8

STEM SUB-ASSY., STEERING

53219-KR3-620

$248.77

9

THREAD, STEERING HEAD TOP

53220-074-000

$15.84

10

LOCK, HANDLEBAR

53600-086-007

$47.89

11

COVER, FR.

61401-KR3-980

$42.25

12

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

13

BOLT, SOCKET (8X28)

90154-MF8-000

$5.16

14

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

16

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75
