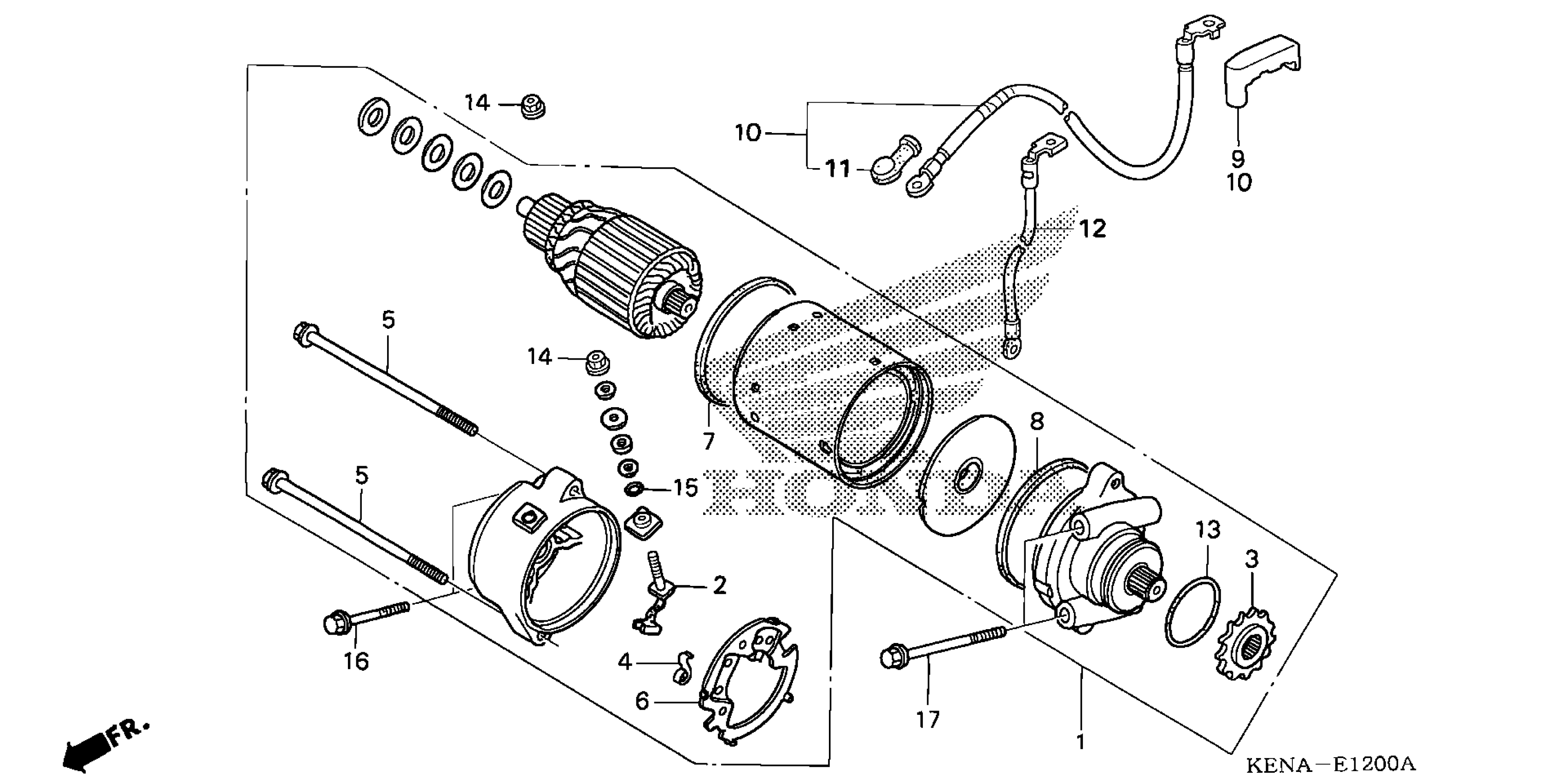

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 STARTING MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-KW4-018

$555.81

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.69

SPROCKET, STARTER MOTOR (13T)

31202-216-154

$46.59

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-KC1-901

$6.34

HOLDER SET, BRUSH

31206-MN4-008

$21.42

RING

31207-KS5-901

$2.97

RING, SEAL

31207-179-711

$4.04

COVER B, STARTER MAGNETIC TERMINAL

32406-KR3-870

$6.12

CABLE, STARTER MOTOR

32410-KEB-900

$41.41

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.11

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.11

CABLE, BATTERY GROUND

32601-KR3-870

$25.87

O-RING, PINION CAP

53438-611-000

$5.37

NUT-WASHER (6MM)

90071-MB0-000

$1.91

O-RING (4X2)

91320-MB0-000

$2.24

BOLT, FLANGE (6X25)

96001-06025-00

$2.63

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable
