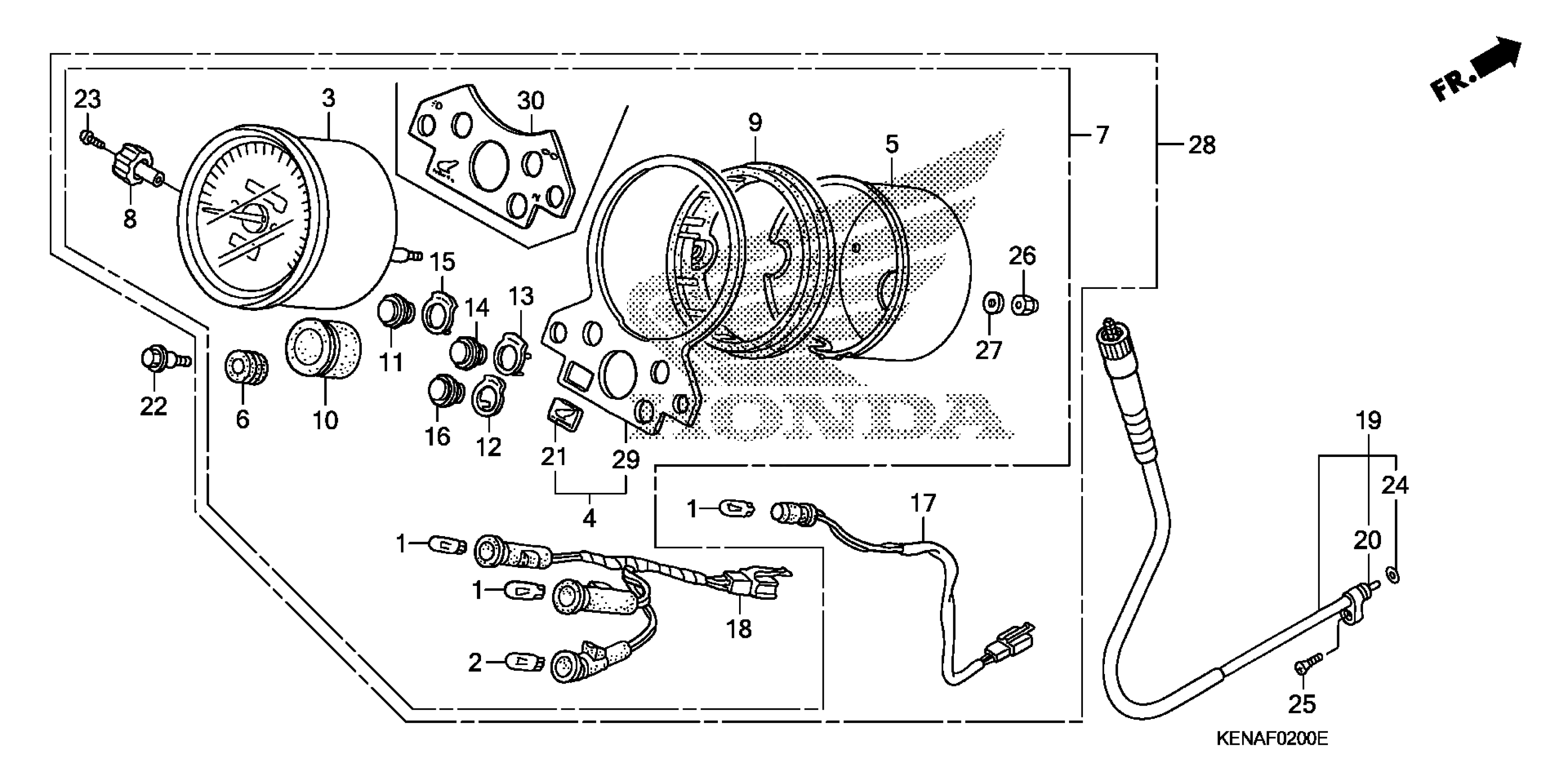

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 SPEEDOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.08

3

SPEEDOMETER

37210-KEN-A51

$361.11

4

BRACKET

37211-KR3-950

$56.80

5

COVER

37212-KR3-760

$89.54

6

RUBBER, MOUNTING

37215-KR3-672

$2.92

7

METER ASSY.

37220-KEN-A52

$399.98

8

KNOB, TRIP

37220-MA6-008

$12.84

9

CUSHION, RUBBER

37242-KR3-671

$10.62

10

GROMMET, COMBINATION SWITCH

37312-KR3-671

$7.57

11

LENS, HIGH BEAM PILOT (BLUE)

37551-GN0-711

$7.43

12

PANEL, NEUTRAL

37555-KEB-901

$6.81

13

PANEL, TURN SIGNAL PILOT

37556-KR3-671

$9.78

14

LENS, TURN SIGNAL PILOT (ORANGE)

37561-KR3-671

$9.32

15

PANEL, HIGH BEAM

37567-KEB-901

$6.40

16

LENS, NEUTRAL PILOT (GREEN)

37571-KR3-671

$9.89

17

SOCKET

37619-KEN-A51

$25.46

18

SOCKET, PILOT

37650-KEB-901

$14.18

19

CABLE ASSY., SPEEDOMETER

44830-KR3-000

$31.01

20

CABLE (INNER) This part replaces 44831-KR3-000.

44831-MM5-000

Unavailable

21

EMBLEM, WING MARK

86150-MR1-760

$8.75

22

SCREW, METER SETTING

90104-KR3-670

$3.46

23

SCREW, PAN (2X6)

90158-KM7-911

$1.92

24

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

24

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

24

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

25

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

26

NUT, CAP (5MM)

94021-05020-0S

$1.49

27

WASHER, PLAIN (5MM)

94101-05000

$1.49

28

SPEEDOMETER ASSY. (MPH/KPH)

37200-KEN-A52

$423.43
