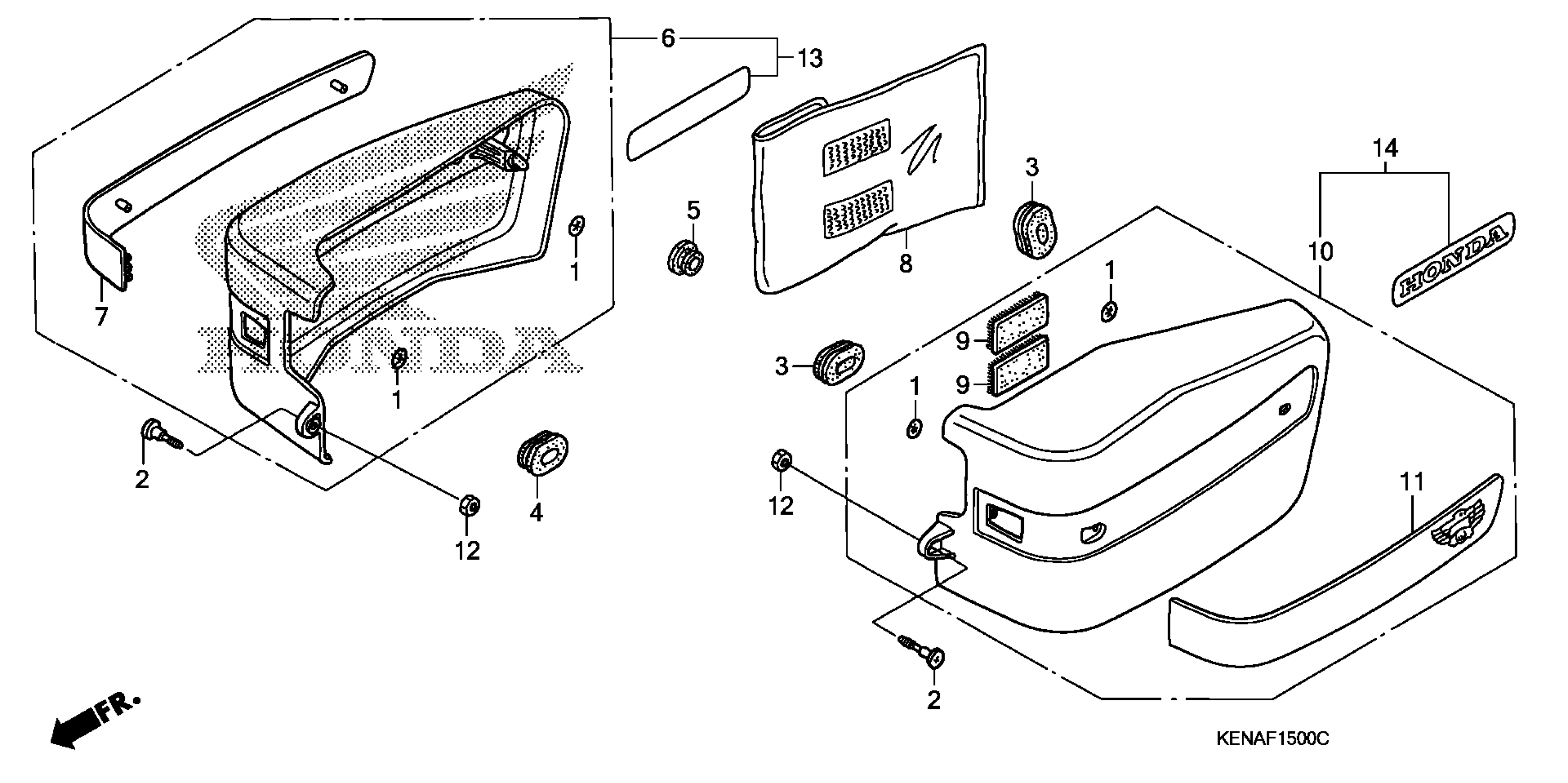

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 SIDE COVER Diagram

NUT, SPEED (4MM)

64206-MJ0-000

$1.40

LATCH, SIDE COVER

83550-KR3-870

$4.24

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

GROMMET, SIDE COVER

83551-376-000

Unavailable

EMBLEM, R. SIDE COVER

83620-KR3-870

$57.66

BAG, OWNER'S MANUAL

83642-ML0-000

$9.24

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.80

EMBLEM, L. SIDE COVER

83720-KR3-870

$57.66

NUT, HEX. (6MM)

94002-06000-0S

$1.31

COVER ASSY., R. SIDE *R300C* (WL) (CANDY RUBIDIUM RED) | Candy rubidium red R300C;

83600-KEN-A70ZJ

$140.01

COVER ASSY., R. SIDE *NH389M* (WL) (MAT BULLET SILVER) | Mat bullet silver NH389M;

83600-KEN-A70ZK

Unavailable

COVER ASSY., L. SIDE *R300C* (WL) (CANDY RUBIDIUM RED) | Candy rubidium red R300C;

83700-KEN-A70ZJ

$140.01

COVER ASSY., L. SIDE *NH389M* (WL) (MAT BULLET SILVER) | Mat bullet silver NH389M;

83700-KEN-A70ZK

$133.96
