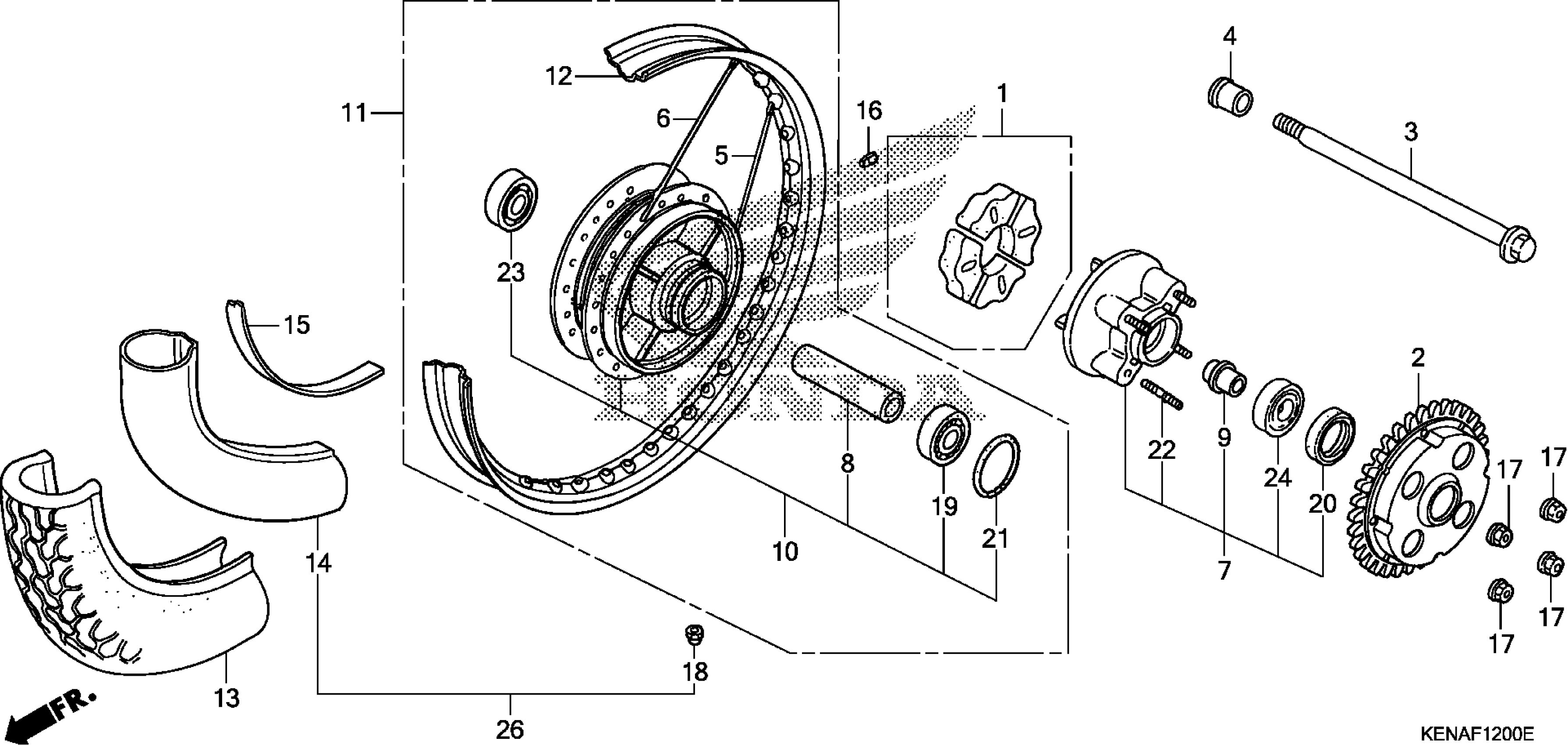

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-KR3-620

$45.67

2

SPROCKET, FINAL DRIVEN (33T)

41200-KEN-670

$85.93

3

AXLE, RR. WHEEL

42301-KR3-601

$29.94

4

COLLAR, RR. WHEEL SIDE

42312-KR3-000

$13.94

5

SPOKE SET A, RR. (B9X120.5) (INSIDE)

42610-KR3-405

$6.79

6

SPOKE SET B, RR. (B9X120) (OUTSIDE)

42611-KR3-405

$6.79

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-KR3-620

$226.72

8

COLLAR, RR. AXLE DISTANCE

42620-KE1-000

$21.44

9

COLLAR B, RR. AXLE DISTANCE

42625-KR3-000

$19.59

10

HUB SUB-ASSY., RR.

42635-KEN-A50

$327.31

11

WHEEL SUB-ASSY., RR.

42650-KEN-A51

$371.35

12

RIM, RR. WHEEL

42701-KR3-023

$79.38

13

TIRE (130/90-15) This part replaces 42711-KR3-J03.

42711-KR3-J04

$181.17

13

TIRE (130/90-15) This part replaces 42711-KR3-U02.

42711-KR3-U03

$166.94

15

FLAP, TIRE (2.75-15) (DUNLOP) This part replaces 42713-KR3-003.

42713-KR3-004

$7.41

15

FLAP, TIRE (2.75-15) (DUNLOP)

42713-KR3-004

$7.41

16

WEIGHT, BALANCE (15G)

42704-MEG-003

$7.71

16

WEIGHT, BALANCE (20G)

42705-MEG-003

$7.71

17

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.52

18

NUT, TIRE VALVE

90306-371-003

$3.28

19

BEARING, RADIAL BALL (6202U) (FUJIKOSHI)

91051-KEB-G01

$10.22

20

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

Unavailable

20

OIL SEAL (28X42X7) (ARAI)

91257-230-003

Unavailable

20

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

Unavailable

21

O-RING (42MM)

91304-704-000

$3.06

22

BOLT, STUD (10X45)

92716-10045-0E

$2.54

23

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$14.16

23

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$14.16

24

BEARING, RADIAL BALL (6004UU)

96150-60040-10

$16.29

26

TUBE SET (130/90-15) (BS) (NOT AVAILABLE)

04401-KEN-A91

Unavailable

26

TUBE SET (130/90-15) (DUNLOP)

04401-KEN-A92

$47.72
