Description

Price

1

HEADLIGHT ASSY. (12V 60/55W) (COO) This part replaces 33100-MAA-A31.

33100-MAA-305

$180.38

1

HEADLIGHT ASSY. (12V 60/55W) (COO)

33100-MAA-305

$180.38

2

SCREW, BEAM ADJUSTING

33114-GE1-670

$4.59

3

SCREW-WASHER

33104-MAH-671

$3.83

4

SPRING, BEAM ADJUSTING

33108-MM2-003

$3.01

5

NUT, BEAM ADJUSTING

33118-438-841

$2.06

6

BRACKET, HEADLIGHT

33124-KEN-A50

$51.04

7

SPACER

33127-MAA-A31

$2.14

8

NUT, UNIT HOLDER

33128-MAA-A31

$2.07

9

SOCKET ASSY., HEADLIGHT

33130-KEN-A50

$15.18

10

COVER, RUBBER

33180-MR7-003

Unavailable

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$34.13

12

CASE, HEADLIGHT

61301-MN0-003

$102.86

13

COLLAR, HEADLIGHT SETTING

61304-KR3-980

$5.25

14

RUBBER, HEADLIGHT MOUNTING

61315-MZ5-000

$2.80

15

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.83

16

BOLT, CAP (6MM)

90132-MK7-000

$2.91

17

NUT, CAP (6MM)

90202-ZV0-000

$2.69

18

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.52

19

BOLT-WASHER (5X20)

93402-05020-00

$0.96

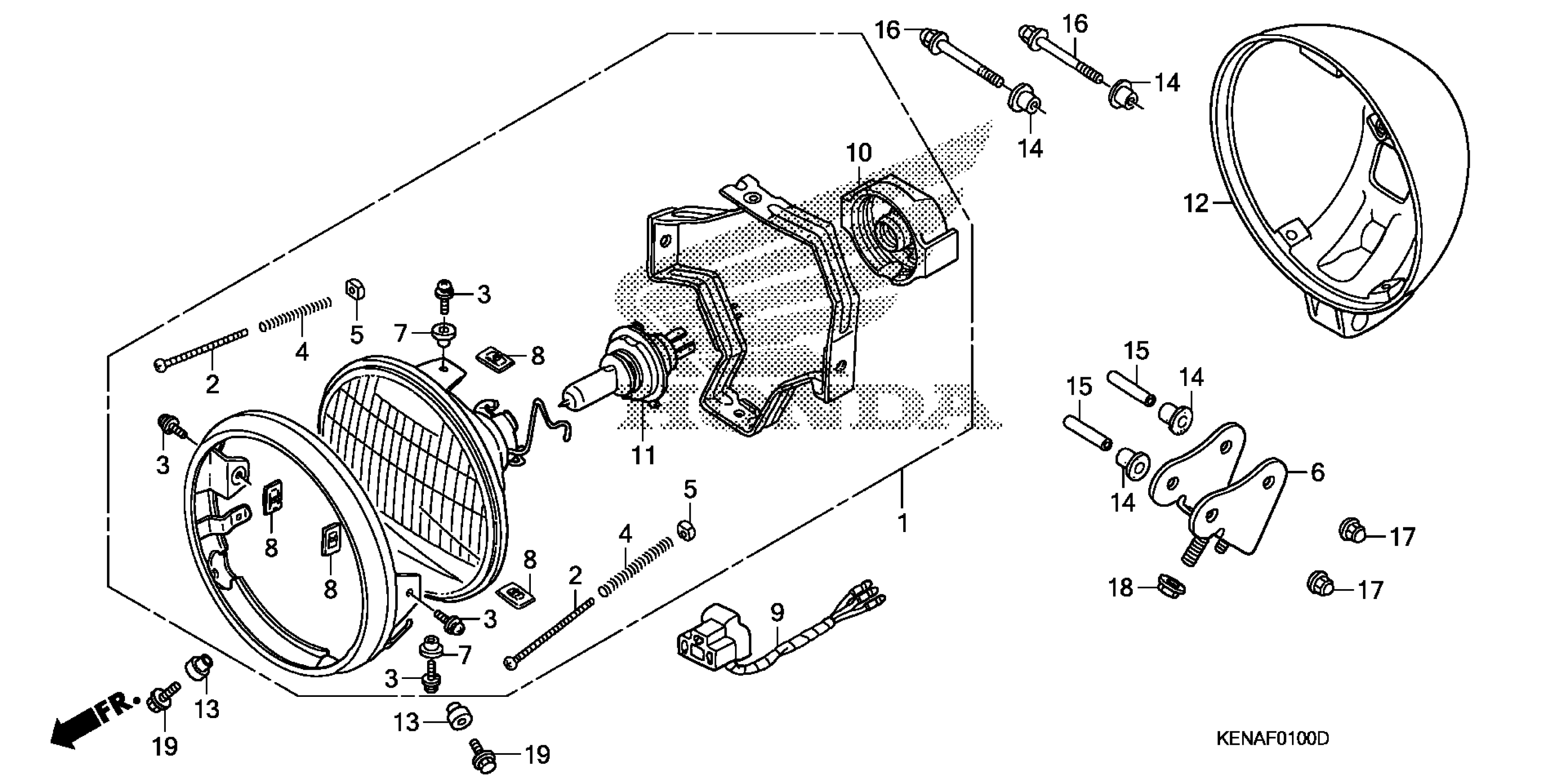

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 HEADLIGHT Diagram
