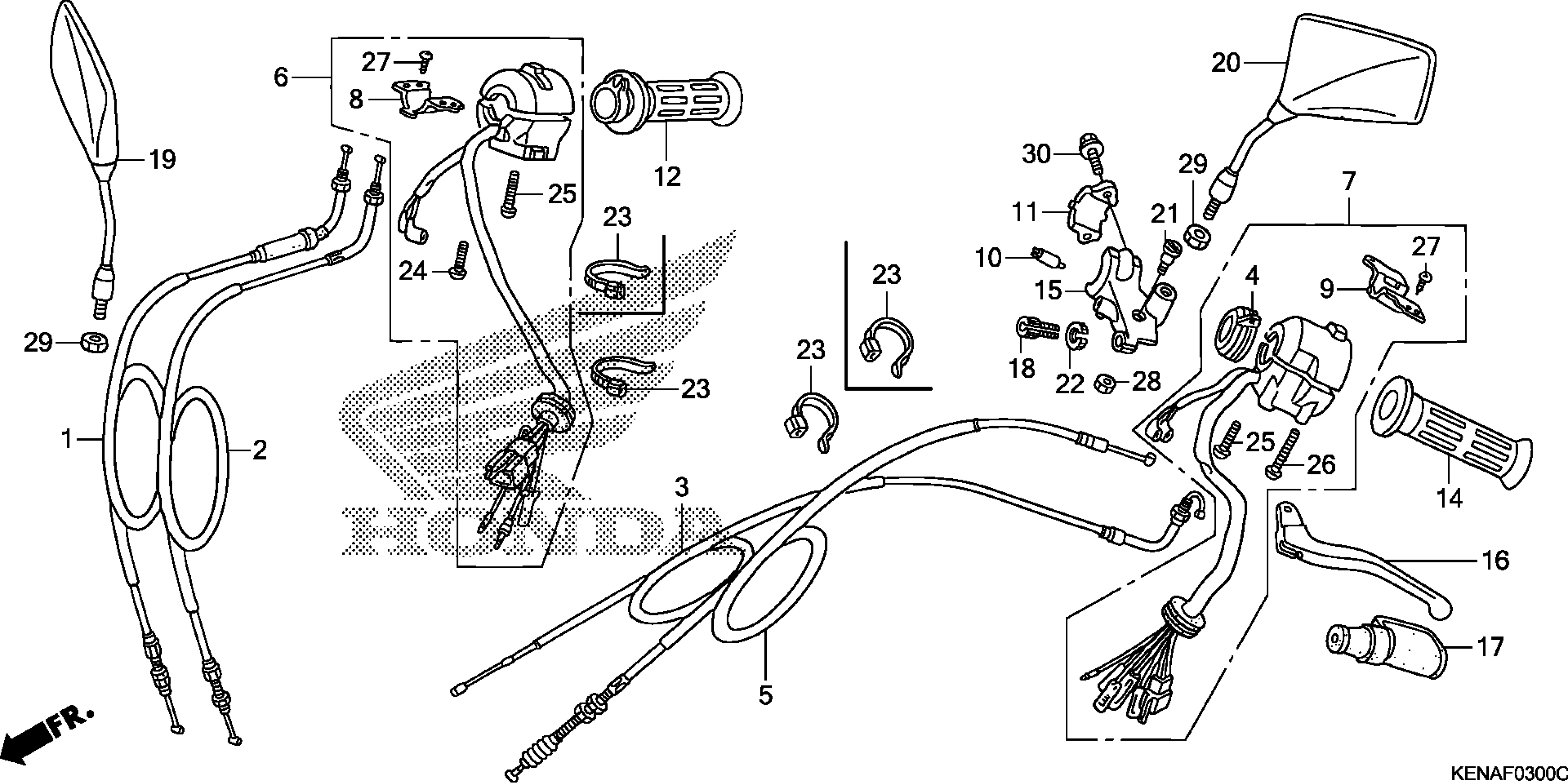

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 HANDLE LEVER + SWITCH + CABLE Diagram

CABLE A, THROTTLE

17910-KEN-670

$39.41

CABLE B, THROTTLE

17920-KEN-670

$39.41

CABLE, CHOKE

17950-KEN-670

$33.90

LEVER, CHOKE

17962-KE8-701

Unavailable

LEVER, CHOKE This part replaces 17962-ML7-003.

17962-KE8-701

Unavailable

CABLE, CLUTCH

22870-KEN-670

$35.47

SWITCH ASSY., STARTER STOP

35013-KEN-670

$134.13

SWITCH SET, TURN SIGNAL

35020-KEN-670

$163.59

PLATE, STOP SWITCH SETTING

35152-KE8-703

$7.61

PLATE, TURN SIGNAL SWITCH SETTING

35204-KE8-702

$9.79

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

HOLDER, MASTER CYLINDER

45516-KR3-900

$28.89

GRIP, THROTTLE This part replaces 53140-KR3-305.

53140-KR3-600

$22.62

GRIP, THROTTLE

53140-KR3-600

$22.62

GRIP, L. HANDLE

53166-KR3-680

$11.23

GRIP, L. HANDLE (COO)

53166-KR3-305

$10.79

BRACKET, HANDLE LEVER

53172-KR3-900

$63.64

LEVER, L. HANDLE

53178-KV0-000

$18.46

LEVER, L. HANDLE This part replaces 53178-KV0-305.

53178-KV0-000

$18.46

LEVER, L. HANDLE (COO)

53178-KYJ-305

$17.38

BOOT, HANDLE LEVER

53180-425-010

$18.53

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

MIRROR, R. BACK

88210-KR3-000

$91.38

MIRROR, L. BACK

88220-KR3-000

$91.38

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, FIXING

90321-MA6-750

$10.45

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X28)

93892-05028-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49

SCREW, TAPPING (3X8)

93901-32120

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (10MM)

94031-10020

$1.49

BOLT, FLANGE (6X22)

96001-06022-02

$2.46
