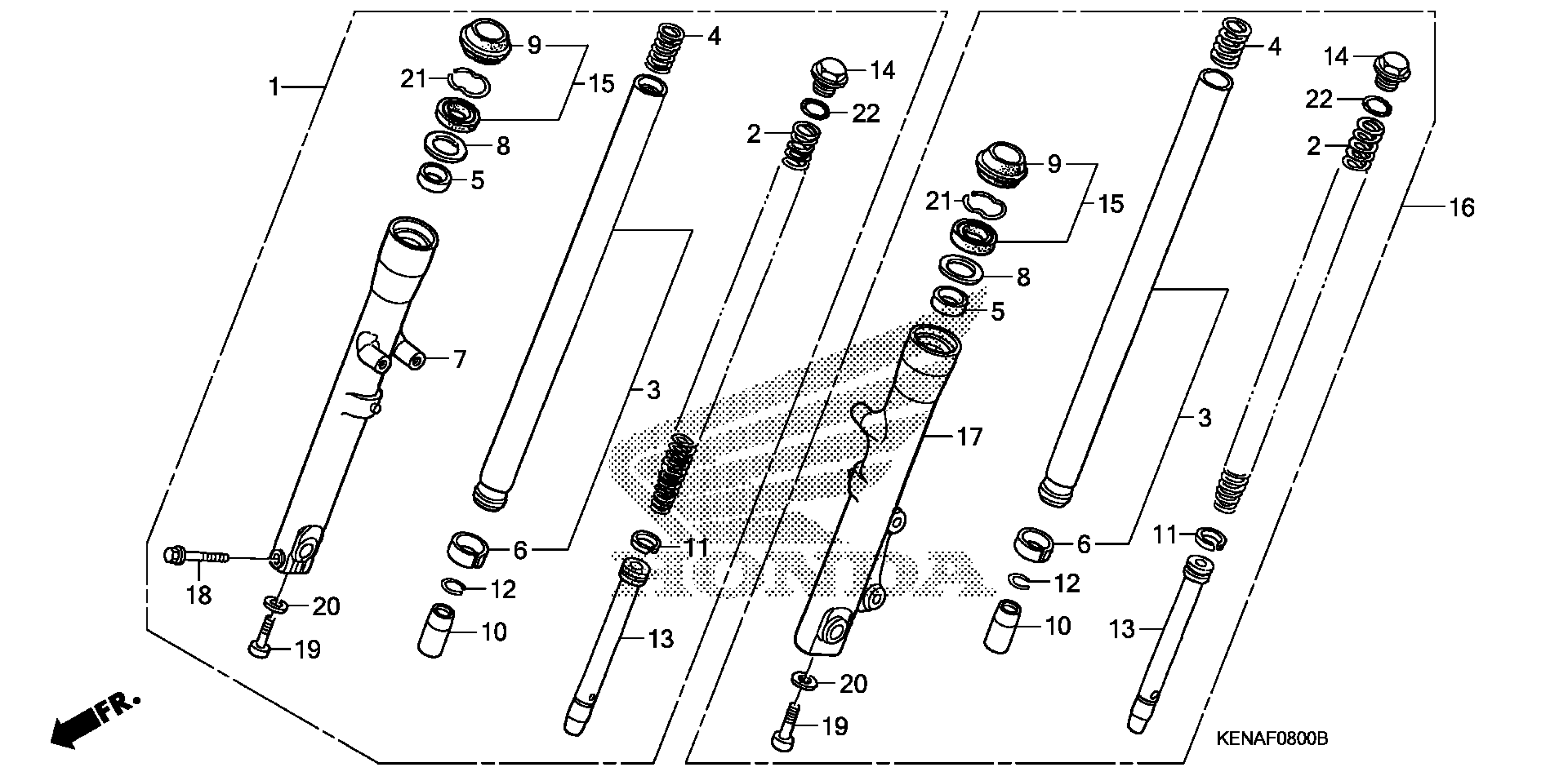

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-KEB-901.

51400-K17-305

$585.68

1

FORK ASSY., R. FR. (COO) (SHOWA)

51400-K17-305

$585.68

2

SPRING, FR. FORK

51401-KR3-003

$62.35

3

PIPE, FR. FORK

51410-KR3-003

$302.50

4

SPRING, FR. FORK REBOUND

51412-340-000

$4.58

5

BUSH, GUIDE

51414-447-731

$14.01

6

BUSH, SLIDER

51415-KR3-003

$16.63

7

CASE, R. (LOWER)

51420-KEB-901

$321.60

8

SPACER

51422-KL8-003

$7.72

9

DUST SEAL

51425-473-003

$24.43

10

PIECE, OIL LOCK

51432-KR3-003

$17.59

11

RING, PISTON

51437-400-771

$6.01

12

RING, PISTON STOPPER

51439-331-770

$4.87

13

PIPE, SEAT

51440-KR3-003

$59.85

14

BOLT, FR. FORK

51454-KR3-003

$33.88

15

SEAL SET, FR. FORK

51490-473-305

$34.00

16

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-KEB-901.

51500-K17-305

$585.68

16

FORK ASSY., L. FR. (COO) (SHOWA)

51500-K17-305

$585.68

17

CASE, L. (LOWER)

51520-KEB-901

$321.60

18

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

19

BOLT, SOCKET (8X27)

90116-383-721

Unavailable

20

WASHER, SPECIAL (8MM)

90544-283-000

$2.65

21

RING, OIL SEAL STOP

90601-369-000

$3.31

22

O-RING

91356-KR3-003

$3.43
