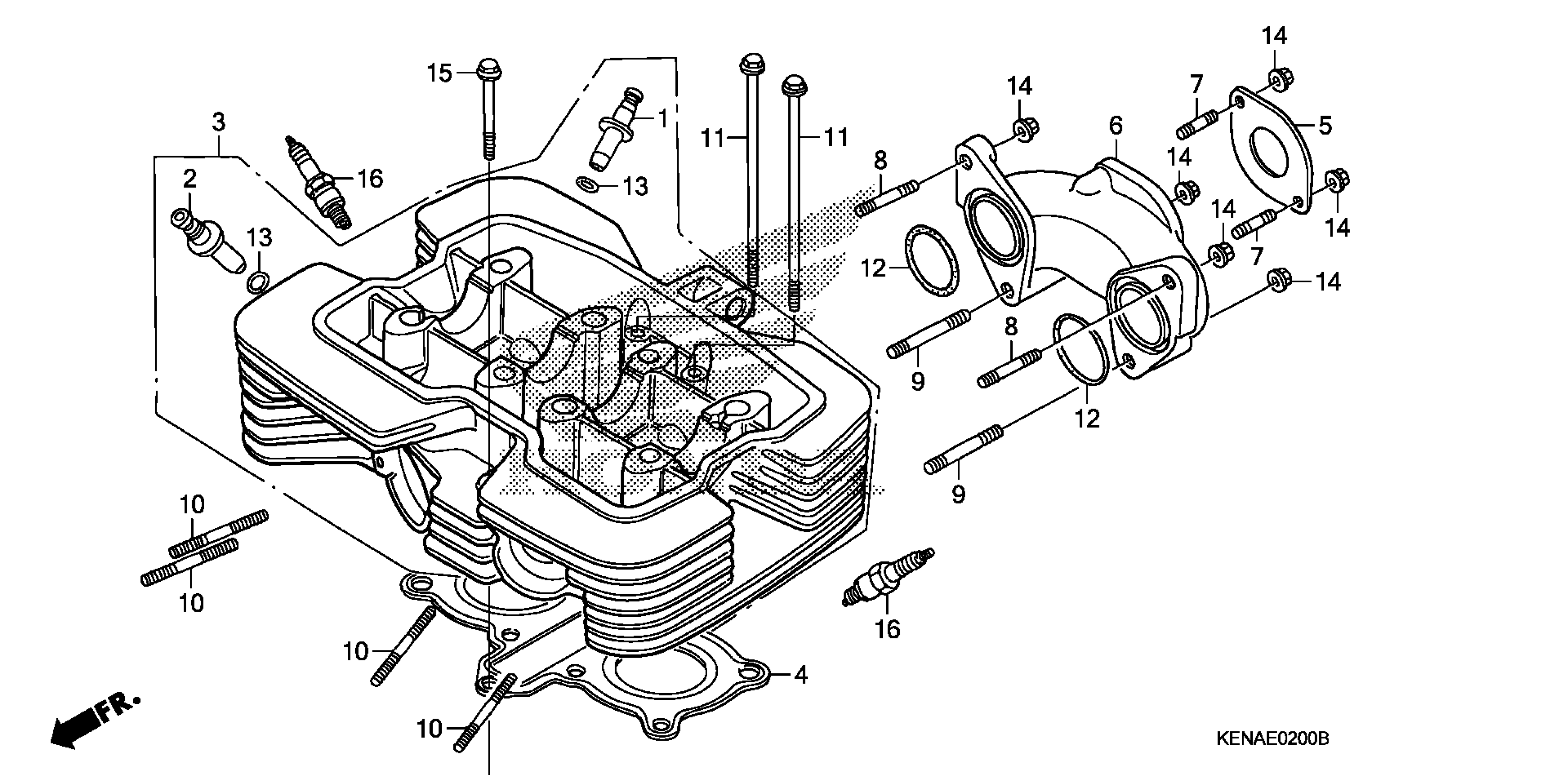

Honda CMX250CA (12) REBEL, JPN, VIN# JH2MC130-CK600001 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$11.86

1

GUIDE, VALVE

12021-149-405

$11.86

2

GUIDE, VALVE

12023-465-405

$18.90

2

GUIDE, VALVE This part replaces 12023-465-830.

12023-465-405

$18.90

3

CYLINDER HEAD

12200-KBG-671

$1,001.46

4

GASKET, CYLINDER HEAD

12251-KBG-671

$39.05

5

GASKET This part replaces 16229-KBG-770.

16229-KBG-772

$9.65

5

GASKET This part replaces 16229-KBG-771.

16229-KBG-772

$9.65

6

MANIFOLD, IN.

17111-KBG-670

$104.75

7

BOLT, STUD (6X16)

90033-KEN-620

$3.86

8

BOLT, STUD (6X32)

90033-399-000

$2.07

9

BOLT, STUD (6X40)

90034-KBG-670

$5.10

10

BOLT, STUD (6X29)

90036-KBG-670

$5.80

11

BOLT, FLANGE (6X145)

90048-KB4-670

$8.92

12

O-RING (25.5X2.5) (ARAI)

91301-KR3-003

$4.21

13

O-RING (10X1.6)

91301-200-000

$3.01

14

NUT, FLANGE (6MM)

94050-06000

$1.49

15

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

16

SPARK PLUG (CR5HSA) (NGK) | (Optional).

98056-55718

$2.62

16

SPARK PLUG (U16FSR-U) (DENSO) | (Optional).

98056-55726

$2.54

16

SPARK PLUG (CR6HSA) (NGK)

98056-56718

$2.62

16

SPARK PLUG (U20FSR-U) (DENSO)

98056-56726

$2.54

16

SPARK PLUG (CR7HSA) (NGK) | (Optional).

98056-57718

$2.62

16

SPARK PLUG (U22FSR-U) (DENSO) | (Optional).

98056-57726

$2.54
