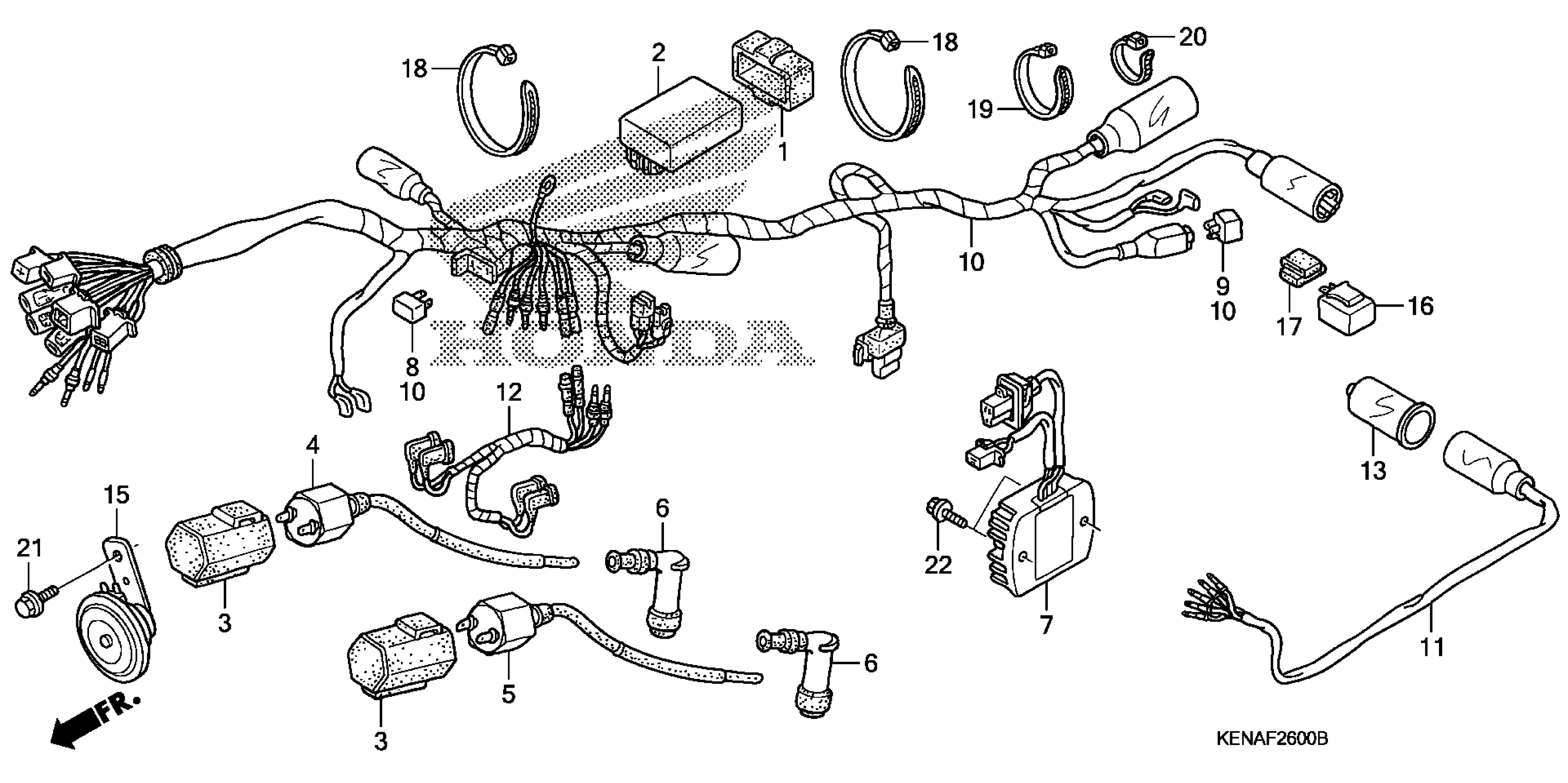

Honda CMX250CA (09) REBEL, JPN, VIN# JH2MC130-9K500001 TO JH2MC130-9K599999 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HB6-000.

30401-HB6-010

$3.56

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)

30410-KBG-003

$206.41

SUSPENSION, IGNITION COIL

30506-KR3-670

$15.07

COIL, R. IGNITION

30510-KEN-691

$89.19

COIL, L. IGNITION

30520-KEN-691

$89.19

CAP ASSY. This part replaces 30700-KEN-690.

30700-KEN-691

$23.81

RECTIFIER ASSY., REGULATE

31600-KEN-A51

$227.91

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$27.27

RECTIFIER, SILICON

31700-196-000

$24.24

WIRE HARNESS

32100-KEN-A50

$278.44

SUB-WIRE, TAILLIGHT

32101-KR3-600

$38.00

SUB-HARNESS, IGNITION COIL

32102-KR3-870

$12.65

COVER, HARNESS

32108-KG8-000

$4.90

HORN ASSY. (HIGH) This part replaces 38110-KR3-872.

38110-MEJ-B02

$61.03

HORN ASSY. (HIGH)

38110-MEJ-B02

$61.03

RELAY, TURN SIGNAL

38301-KG0-024

$59.43

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.53

BAND, WIRE HARNESS

90620-SB2-003

$25.84

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

BOLT, FLANGE (6X16)

95701-06016-00

$1.50
