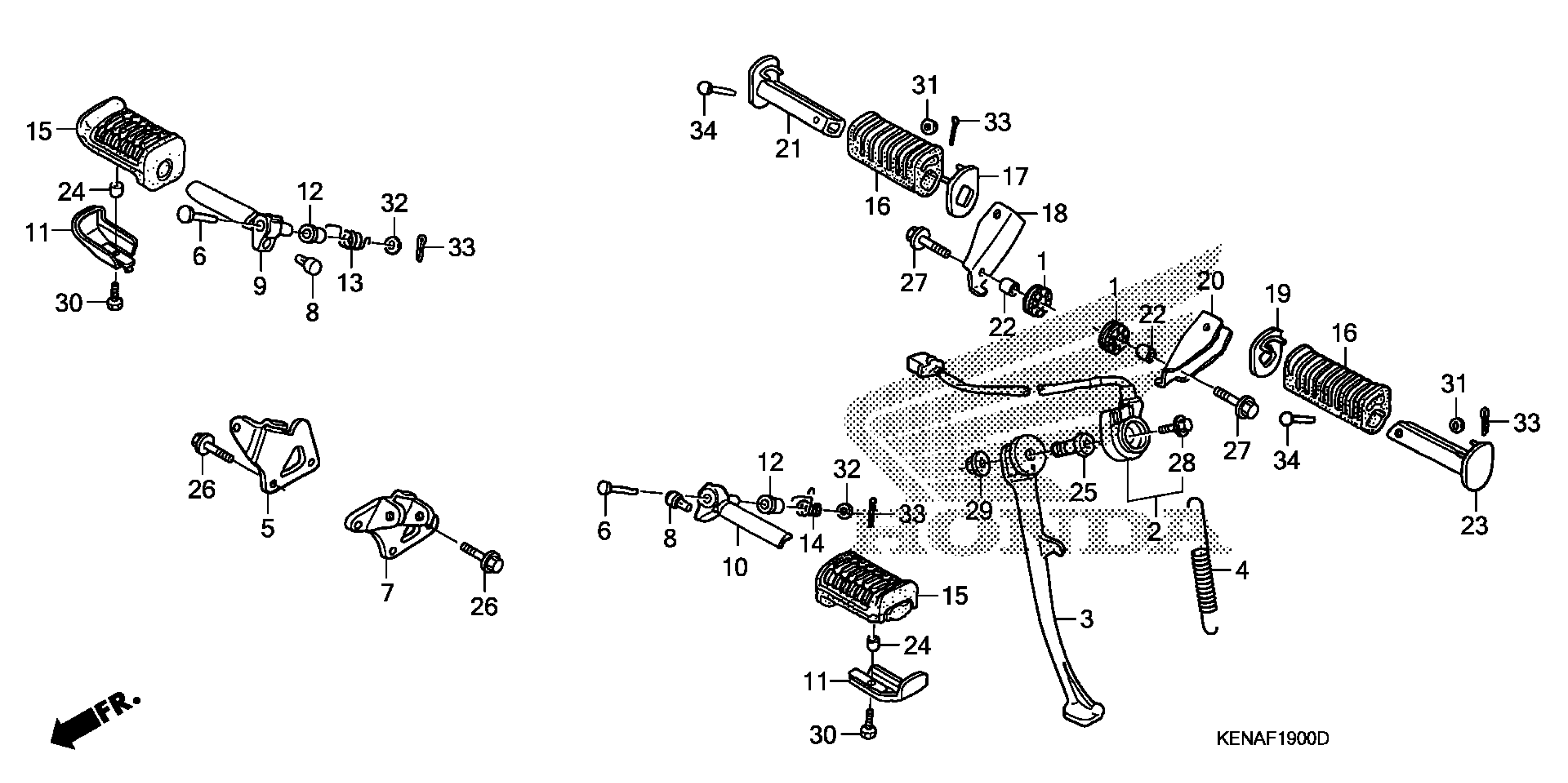

Honda CMX250CA (09) REBEL, JPN, VIN# JH2MC130-9K500001 TO JH2MC130-9K599999 STEP Diagram

#

Description
Price

1

RUBBER B, MUFFLER MOUNTING

18421-KR3-000

$5.92

2

SWITCH SET, SIDE STAND This part replaces 35700-KEB-306.

35700-MBA-305

Unavailable

2

SWITCH SET, SIDE STAND

35700-MBA-305

Unavailable

3

BAR, SIDE STAND This part replaces 50530-KR3-305.

50530-KR3-870

$64.64

3

BAR, SIDE STAND

50530-KR3-870

$64.64

4

SPRING D, SIDE STAND

50543-KR3-000

$7.41

5

BRACKET, R. MAIN STEP

50600-KEB-900

$59.89

6

PIN, STEP BAR JOINT

50603-MC4-000

$4.69

7

BRACKET, L. MAIN STEP

50605-KEB-950

$59.89

8

RUBBER, STEP STOPPER

50614-KR3-J00

$3.20

9

STEP, R.

50616-KR3-J00

$37.20

10

STEP, L.

50617-KR3-J00

$37.20

11

STOPPER, STEP RUBBER

50619-KR3-770

$14.90

12

COLLAR, STEP SETTING

50622-KG1-000

$8.05

13

SPRING, R. STEP RETURN

50634-KR3-000

$5.59

14

SPRING, L. STEP RETURN

50644-KR3-000

$5.54

15

RUBBER, MAIN STEP (COO) This part replaces 50661-KR3-000.

50661-KR3-305

$9.28

16

RUBBER, PILLION STEP (COO) This part replaces 50710-461-770.

50710-461-305

$12.78

17

WASHER, R. PILLION STEP

50712-438-730

$5.56

18

BRACKET, R. PILLION STEP This part replaces 50713-KR3-000.

50713-KR3-950ZA

Unavailable

18

BRACKET, R. PILLION STEP This part replaces 50713-KR3-770.

50713-KR3-950ZA

Unavailable

18

BRACKET, R. PILLION STEP

50713-KR3-950ZA

Unavailable

19

WASHER, L. PILLION STEP

50713-438-730

$5.56

20

BRACKET, L. PILLION STEP This part replaces 50714-KR3-000.

50714-KR3-950ZA

Unavailable

20

BRACKET, L. PILLION STEP This part replaces 50714-KR3-770.

50714-KR3-950ZA

Unavailable

20

BRACKET, L. PILLION STEP

50714-KR3-950ZA

Unavailable

21

BAR, R. PILLION STEP

50715-461-770

$37.33

22

COLLAR, PILLION STEP

50716-KR3-000

$5.93

23

BAR, L. PILLION STEP

50718-461-770

$37.33

24

COLLAR, BUZZER SETTING

61309-303-810

$5.17

25

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

26

BOLT, FLANGE (8X30)

90129-KR3-740

$4.35

27

BOLT, FLANGE (10X34)

90130-KR3-740

$5.56

28

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

29

NUT, SIDE STAND

90203-MF9-710

$3.67

30

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

33

PIN, COTTER (1.6X25)

94201-16250

$1.49

34

PIN A, PILLION STEP

95015-81000

$2.21
