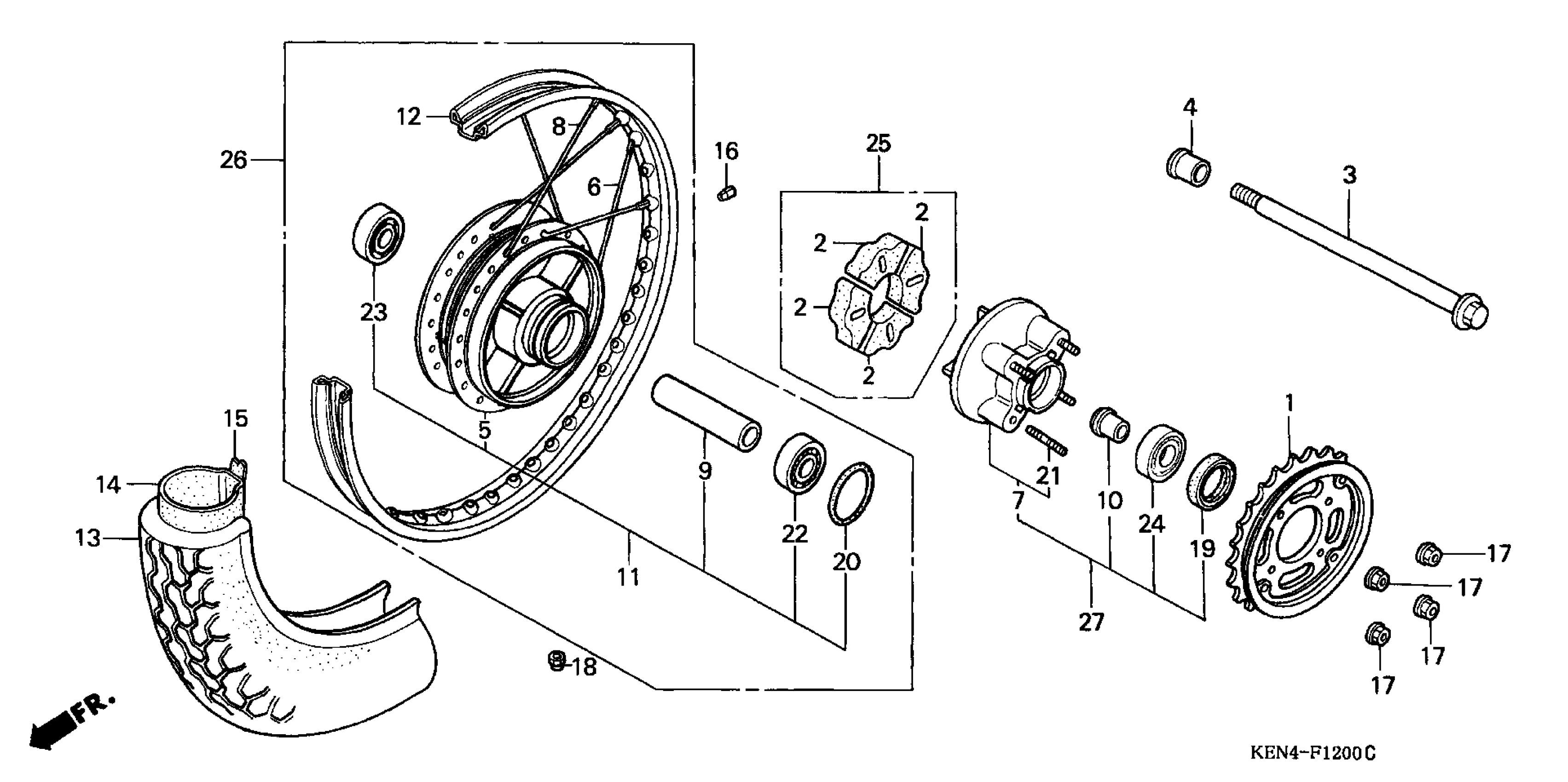

Honda CMX250CA (02) REBEL, JPN, VIN# JH2MC130-2K800001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (33T)

41200-KEN-670

$87.67

3

AXLE, RR. WHEEL

42301-KR3-601

$32.41

4

COLLAR, RR. WHEEL SIDE

42312-KR3-000

$15.08

6

SPOKE SET A, RR. (B9X120.5) (INSIDE)

42610-KR3-405

$7.36

8

SPOKE SET B, RR. (B9X120) (OUTSIDE)

42611-KR3-405

$7.36

9

COLLAR, RR. AXLE DISTANCE

42620-KE1-000

$23.21

10

COLLAR B, RR. AXLE DISTANCE

42625-KR3-000

$21.20

11

HUB SUB-ASSY., RR.

42635-KEN-A50

$354.28

12

RIM, RR. WHEEL This part replaces 42701-KR3-013.

42701-KR3-023

$85.92

12

RIM, RR. WHEEL

42701-KR3-023

$85.92

13

TIRE, RR. (130/90-15) (66P G508) (BS)

42711-KR3-U01

$175.44

13

TIRE, RR. (130/90-15) (66P G508) (BS) This part replaces 42711-KR3-609.

42711-KR3-U01

$175.44

14

TUBE, TIRE (130/90-15) (DUNLOP) This part replaces 42712-KR3-003.

42712-KR3-004

$37.40

14

TUBE, TIRE (130/90-15) (DUNLOP)

42712-KR3-004

$37.40

14

TUBE, TIRE (130/90-15) (DUNLOP) This part replaces 42712-KR3-009.

42712-KR3-004

$37.40

15

FLAP, TIRE (2.75-15) (DUNLOP) This part replaces 42713-KR3-003.

42713-KR3-004

$7.75

15

FLAP, TIRE (2.75-15) (DUNLOP)

42713-KR3-004

$7.75

16

BALANCER, WHEEL (20G)

44606-283-000

$8.89

17

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

18

NUT, TIRE VALVE

90306-371-003

$3.24

19

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

19

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

19

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

20

O-RING (42X2.4)

91304-704-000

$3.21

21

BOLT, STUD (10X45)

92716-10045-0E

$2.75

22

BEARING, RADIAL BALL (6202U) (FUJIKOSHI)

91051-KEB-G01

$11.07

23

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

23

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

24

BEARING, RADIAL BALL (6004UU)

96150-60040-10

$19.53

25

DAMPER SET, WHEEL

06410-KR3-620

$52.77

26

WHEEL SUB-ASSY., RR. This part replaces 42650-KEN-A50.

42650-KEN-A51

$401.92

26

WHEEL SUB-ASSY., RR.

42650-KEN-A51

$401.92

27

FLANGE SUB-ASSY., RR. DRIVEN

42615-KR3-620

$245.36
